Basic Info.
Model NO.
LiitoKala Lii-S8
Charger Style
Battery Charger
Compatible Battery Type
12-Volt
Certification
CE
Socket Type
Au/UK/EU/Us Plug
Recyclable
Recyclable
Transport Package
Carton
Specification
19.5*14.2*3.5cm
Trademark
LiitoKala
Origin
China
HS Code
85044015
Production Capacity
10000PCS/Week
Packaging & Delivery
Package Size
23.00cm * 23.00cm * 18.00cm
Package Gross Weight
1.000kg
Product Description

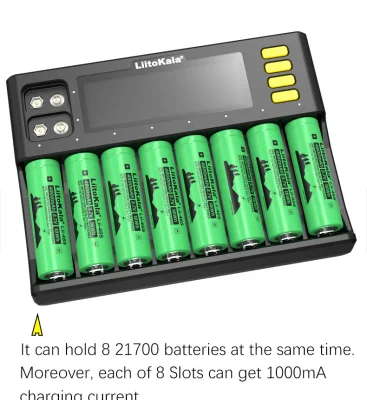

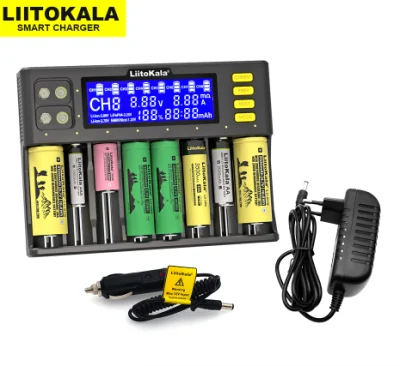

Wholesale LiitoKala Lii-S8 8 Slots Battery Charger Li-ion 3.7V NiMH 1.2V Li-FePO4 3.2V for 18650 26650 21700 26700 AA AAA
| Input power supply | DC 12.0V 4.0A | |||
| | DC 4.20V for Li-ion 4.35 V DC for IMR 3.65 V DC for LiFePO4 1.48 V DC for the NiMH/Ni - CD 9.0 V DC for the NiMH | |||

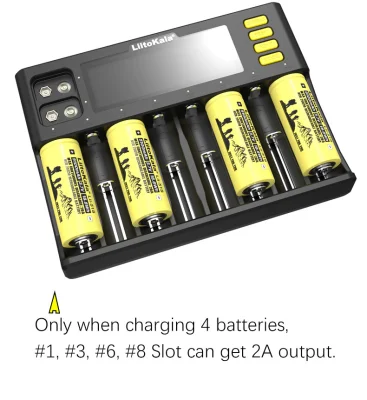

| Output current | Li-ion/IMR/LiFePO4:2.00A*4(1/3/6/8 channel only),0.30A/0.50A/0.70A/1.00A*8 The NiMH/Nicd: 0.50 A * 8 NiMH-9V: 85mA*2 | |||
| onstant current/constant voltage charging, cut-off current | 100mA | |||
| No-load standby current | <50mA | |||
| Charger Size | 195.0mm× 142.5mm×35.0mm(Length/width/height) | |||
| Storage Temperature | -40 - +70°C | |||
| Certification | CE, RoHs | |||
During charging, long press the MODE key to re-select the type of rechargeable battery, but the previous charging data will not be saved.
1.2 Press NEXT (NEXT channel) : This button is 1 to 8 channel query key. Click this key once to display charging data from low channel to high channel (CH1CH8 direction); Long press this button to make the display screen in the state of constant light, long press again to remove the constant light;
1.3 PREV (previous channel) : This button is the 8 to 1 channel query key. Once clicked, the channel displays charging data from high channel to low channel (CH8CH1 direction); Long press this button to make the display screen in the state of constant light, long press again to remove the constant light;
1.4 CURRENT (CURRENT adjustment) : This button is the charging CURRENT selection button; The system will automatically configure the current according to the internal resistance of the battery. To change the charging CURRENT of a channel, click NEXT or PREV to display the channel, and then press CURRENT for a long time. When the CURRENT value is flashed, press CURRENT for a short time to change the charging CURRENT of the channel. To make the charging CURRENT of all the battery channels the same, long press CURRENT first and then short press to adjust the CURRENT when the battery type is still flashing. At this time, the CURRENT value of all the channels is the same.
Vapcell Group established in 2013, and mainly engaged in the research and development, production and sales of premium lithium ion battery and chargers for headlight , flashslight , power tools , battery pack etc.1.We can provide various brands of batteries, the latest date original genuine brand batteries. Our company's main vapcell battery has many types that are comparable to branded batteries, with superior performance and price advantages, which can completely replace Japanese and Korean brands. Please contact us for specific models.
2. We have the latest 18650, 21700, 20700, 20650, 26650, 32700, 26350, 18350, 16650, 14650, 14500, 18500, 16340, 10400, IFR 10370, USB Battery and other models in stock. Each model has a variety of capacities, high-discharge current, low-discharge current, capacity battery, power battery, we have all of these.If necessary, please contact us if you need other needs.
3. We will test all battery voltage, internal resistance and capacity before shipment.
4. We can also provide the supply of large-capacitybatteries of other brands, such as EV, CA TL, CA LB, with a capacity of 50ah 90ah 105ah 200ah 230ah 280 ah 302ah 304ah and othermodels in stock. The original products are genuine, and the fresh inventory includes A and B class. If you have any needs, please feel free to contact us.contact us.1.We can provide various brands of batteries, the latest date original genuine brand batteries. Our company's main vapcell battery has many types that are comparable to branded batteries, with superior performance and price advantages, which can completely replace Japanese and Korean brands. Please contact us for specific models.
