Basic Info.
Model NO.
QW160-500-FM
Size
285*140*90mm
Certification
PSE, RoHS, CB, CE, FCC SAA Rcm
Socket Type
Au/EU/UK/Us Plug
Recyclable
Recyclable
Input Voltage
100-240VAC 50/60Hz
Color
Black/Armygreen
Transport Package
Corrugated Box, EPE Pearl Cotton/According to Your
Specification
Weight: 2900± 50g(only body)
Trademark
QUAWIN/OEM
Origin
Shenzhen
HS Code
850431900
Production Capacity
50000 Pieces

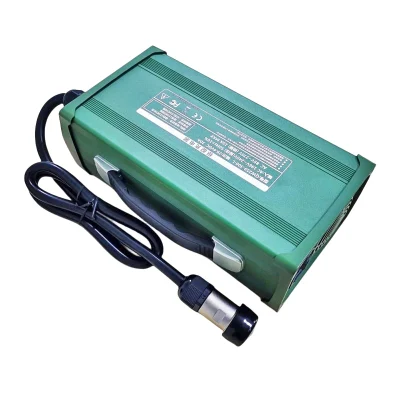

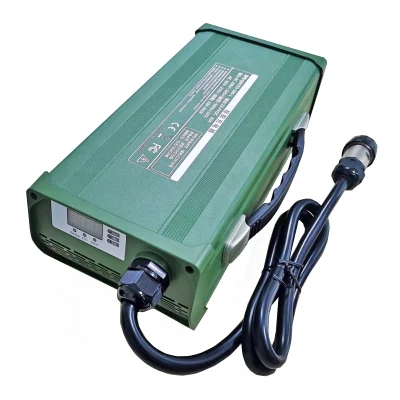

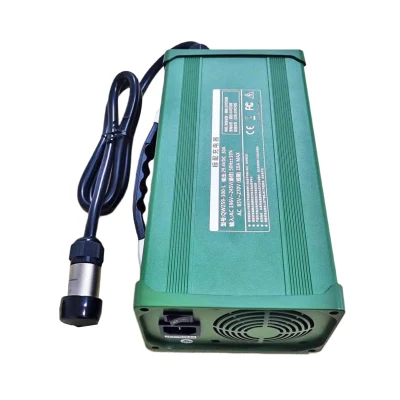

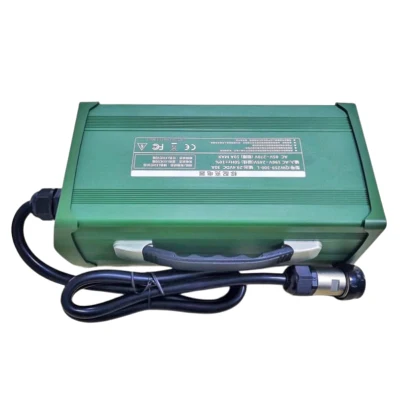

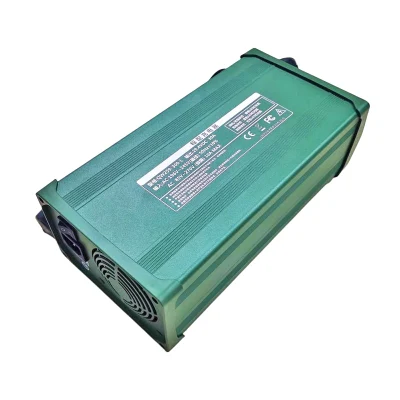

Product Description
Quick Detail:
Brand Name:QUAWIN
Model Number:QW160-500-FM
Use:5S 15V/16V Lifepo4 battery pack
Type:Electric
Place of Origin:Guangdong China (Mainland)
Color:Black/Army green
Shell Material:Aluminium alloy
Input voltage:100-240VAC 50/60Hz with PFC
Output voltage:18.25V
Output current:50a(Max)
Output power:912.5W
Special Process: Spray Three Proof Paint
Electromagnetic compatibility: meets the requirements of GJB
Reliability: MTBF>=3000H
Optional features:The battery pack with super capacitor can be charged from 0V
Certification:CB CE FCC PSE SAA RCM
Output Connector:Waterproof plug, Crocodile Clip, Aviation Connector, XLR, Ring terminal, Aviation Model plug, SAE Plug, Anderson Connector, Customized
Packaging & Delivery :
Specifications:
5S 15V/16V Lifepo4 battery pack
Features:
• Charging mode:CC-CV(Constant Current-Constant Voltage)
• High efficiency and low power consumption
• Stabilized output and low noice
• Efficiency(at 100% load): >=90%
• Operating temperature:-40ºC ~ 65ºC
• Storage temperature:-40ºC ~ 85ºC
• Operating humidity:5%~90%RH
• It can be used in harsh environmental conditions, with electromagnetic capacitance, high precision of voltage regulation, rain proof, low temperature resistance and corrosion resistance.
Specification:
• Input: 100-240VAC 50/60Hz with PFC
• Output: DC 18.25V
• Charging current: 50a(Max)
• Dimensions (mm): 285*140*90
• Weight: 2900±50g(only body)
Safety protections:
• Over Voltage protection
• Short Circuit protection
• Polarity error protection
• Over power protection
• Overheating protection
LED Indicator:
Waiting Mode:LED(GREEN) ON
Charging Mode:LED(BLUE) FLASH
Full Charged Mode:LED(GREEN) ON
Charge Error Mode:LED(RED) FLASH
Brand Name:QUAWIN
Model Number:QW160-500-FM
Use:5S 15V/16V Lifepo4 battery pack
Type:Electric
Place of Origin:Guangdong China (Mainland)
Color:Black/Army green
Shell Material:Aluminium alloy
Input voltage:100-240VAC 50/60Hz with PFC
Output voltage:18.25V
Output current:50a(Max)
Output power:912.5W
Special Process: Spray Three Proof Paint
Electromagnetic compatibility: meets the requirements of GJB
Reliability: MTBF>=3000H
Optional features:The battery pack with super capacitor can be charged from 0V
Certification:CB CE FCC PSE SAA RCM
Output Connector:Waterproof plug, Crocodile Clip, Aviation Connector, XLR, Ring terminal, Aviation Model plug, SAE Plug, Anderson Connector, Customized
Packaging & Delivery :
4pcs/Carton
Carton size: 475*422*375mm
Delivery Detail:sample within 10 work days,15~25 days for bulk order
Carton size: 475*422*375mm
Delivery Detail:sample within 10 work days,15~25 days for bulk order
Specifications:
5S 15V/16V Lifepo4 battery pack
Features:
• Charging mode:CC-CV(Constant Current-Constant Voltage)
• High efficiency and low power consumption
• Stabilized output and low noice
• Efficiency(at 100% load): >=90%
• Operating temperature:-40ºC ~ 65ºC
• Storage temperature:-40ºC ~ 85ºC
• Operating humidity:5%~90%RH
• It can be used in harsh environmental conditions, with electromagnetic capacitance, high precision of voltage regulation, rain proof, low temperature resistance and corrosion resistance.
Specification:
• Input: 100-240VAC 50/60Hz with PFC
• Output: DC 18.25V
• Charging current: 50a(Max)
• Dimensions (mm): 285*140*90
• Weight: 2900±50g(only body)
Safety protections:
• Over Voltage protection
• Short Circuit protection
• Polarity error protection
• Over power protection
• Overheating protection
LED Indicator:
Waiting Mode:LED(GREEN) ON
Charging Mode:LED(BLUE) FLASH
Full Charged Mode:LED(GREEN) ON
Charge Error Mode:LED(RED) FLASH
Call us to know more details datasheet.
| Typical Product Model | |||||
| Model | Input Voltage(V) | Battery Voltage(V) | Charging Voltage(V) | Charging Current(A) | |
| QW128-500-FM | LiFePO4 | AC 100~264V | 12.8(4S) | 14.6 | 50 |
| QW256-300-FM | 25.6(8S) | 29.2 | 30 | ||
| QW384-200-FM | 38.4(12S) | 43.8 | 20 | ||
| QW512-150-FM | 51.2(16S) | 58.4 | 15 | ||
| QW640-120-FM | 64(20S) | 73 | 12 | ||
| QW768-100-FM | 76.8(24S) | 87.6 | 10 | ||
| QW148-500-LM | Lithium | 14.8(4S) | 16.8 | 50 | |
| QW259-300-LM | 25.9(7S) | 29.4 | 30 | ||
| QW370-200-LM | 37(10S) | 42 | 20 | ||
| QW481-150-LM | 48.1(13S) | 54.6 | 15 | ||
| QW629-120-LM | 62.9(17S) | 71.4 | 12 | ||
| QW740-100-LM | 74(20S) | 84 | 10 | ||
| QW120-500-SM | Lead Acid | 12(1S) | 14.7 | 50 | |
| QW240-300-SM | 24(2S) | 29.4 | 30 | ||
| QW360-200-SM | 36(3S) | 44.1 | 20 | ||
| QW480-150-SM | 48(4S) | 58.8 | 15 | ||
| QW600-120-SM | 60(5S) | 73.5 | 12 | ||
| QW720-100-SM | 72(6S) | 88.2 | 10 | ||
