Basic Info.
Product Description
| Parameters | JS-PETM021-01 |
| Peak power Pm(W) | 21±3% |
| Open circuit voltage Voc(V) | 21.6 |
| Max. power voltage Vmp(V) | 18V |
| Max. power current Imp(A) | 1.10 |
| Short circuit current Isc(A) | 1.21 |
| Solar cells Efficiency | 23-24.5% |
| Folding size/open size/weight | 170*290*25mm/700*290*5mm,0.7kgs |
| solar cell / No. of cells and connections | Mono crystalline / 12 series |
| Solar panel front cover(material/thickness) | Frosted PET/0.2mm; or ETFE/0.025mm |
| Encapsulant(material) | Ethylene vinyl acetate(EVA) |
| Cloth/ Color | 1000D polyester/Optional |
| Junction box protection degree | ≥IP65 |
| Cable /Cable connector Model | 2-4SQMM, USB/MC4/5521/SAE |
| STC | Irradiance:1000W/m2,Cell temperature:25ºC,AM:1.5 |
| Solar panel back material | glass fiber PCB/1.6mm( TPT/0.2mm) |
| Output | DC18V1.1A,USB5V2.4A*2 |
| Power bank | |
| Input | |
| Output | |
| Battery capacity | |
| LED lamp | |
| Charging indicator | |
| Product color | Black/white/yellow/blue/gray/silver |
| Coefficient power TK | -0.45%/ºC |
| Life | PET≥5 years; ETFE: ≥15 years |
| Warranty | PET Cover: 2 years; ETFE: 5 years |
| Product Certification / Standard | TUV,CE,ROHS,FCC,PSE/(IEC61215&IEC61730) |
| Other Certification | ISO 9001:2008 |
Email Me To Get: Solar Charger Specification Sheet PDF File
(Holes are optional, shape and size are optional,DC wire are optional, USB kinds are optional)
1. Life-time
ETFE: 15-20 years;
PET: 2-5 years;
2. Effeciency/Light Transmittance
ETFE: 90%-98%, 15 years above 90%
PET:80%-85%, 3 years below 70%
3. Thickness
ETFE: 0.025mm
PET:0.2mm
4. Flexible
ETFE >PET
5. Weight
ETFE <PET
6. Cost and production time
ETFE >PET
7. Enviroment Resistance
ETFE is the same as tempered glass, best in all materials
Usage:
can be hang on backpack,charge for panel computer,Ipad, mobile phones , digital cameras , MP3; color: optional;
OEM/ODM: Silk Print is optional;
Different size:
The same power, different size are optional;
Main Parts:solar panel,cloth,USB,PCB.All parts can be provided separately

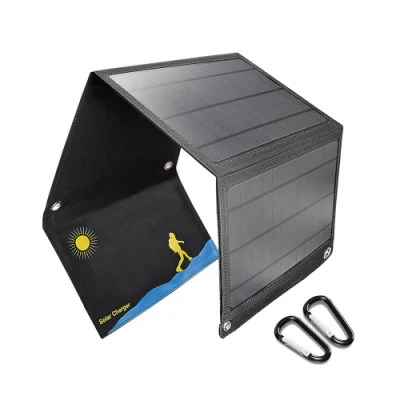

i. Foldable panel design;
ii.Charging for batteries:1-4 hours according to capacity;
iii.With holes to hang

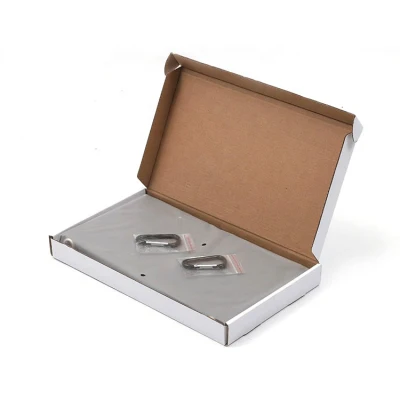

Package Information:
See quotation sheet
CHARGING FOR YOUR MOBILE PRODUCTS ANYWHERE AND ANYTIME WITH SUNLIGHT
IT'S NECESSARY FOR ALL PEOPLE WHO HAVE MOBILE PRODUCTS
We here state that: All the original solar foldable bag below are manufactured by our factory, the warranty period are 2 years and the life-time are more than 6 years, all costs including freight will be undertaken by our company if any quality problem occur when the buyers buy from us directly, for our long-standing customers, free samples should be provided to test.
Advantage:

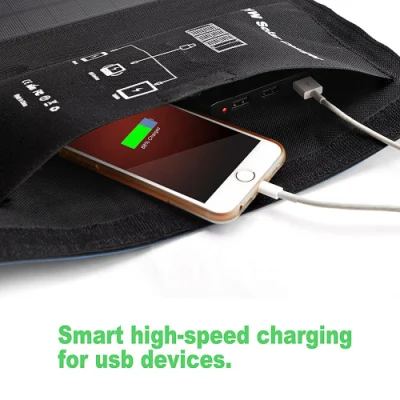

I. The solar mobile charger is widely used in charging for mobile phones, cameras, MP3 and the mobile products;
II. The solar mobile charger absorb the sunlight and transform into DC electricity and charge for mobile products, so it can charge for mobile products ANYWEHRE and ANYTIME with sunlight.
III. It has long life-time more than 8 years,it suit for all people who has mobile products especilly for travel people
Why choose us?
1. We are a professional manufacture, focus on solar products, with more than 500 employees, 20 R&D engineers do services for you, Welcome OEM and ODM.
2. Hardware equipment:
Our manufactory building covers an area of 10000 square meters, 10 production lines, 10 assembling lines, 25pcs injection, 15pcs mould, 12 SMT, 8pcs printing machines, etc...
3. Certificate:
our products have the certificates of CE, RoHs, SONCAP, SASO, FCC, IEC...
4. Convenient lacate:
Our factory is located in Longhua, Baoan, Shenzhen, Guangdong Province, China. Shenzhen borders Hong Kong. Only 10 minute from Shenzhen airport by car to our factory.
5. High quality and good performance
we provide high quality and performance solar home lighting products. Power-Solution attach great importance to control quality, our client include: Carrefour, Wal-Mart, Ring, freeplay, Binatone, Mahindra solar, etc....
6. One year guarantee and over 3 years lifespan
solar panel: use 5-10years
LED: over 50000hours, up to 5 years lifespan
Battery: over 3 years lifespan
7. Favourable Payment term: We can quote you EXW,FOB,CRF and CIF price. The delivery port can be Shenzhen or Hongkong and any China port. We accept T/T ,L/C, western union, paypal,etc.
For MOQ order: we sopport customer brand LOGO printed on gift box and products for free
8. Fast delivery time:
For sample order: we can delivery within 3 days
For trial smaller quantity order(packing with factory neutral box): we can make it delivery time 10-15days
For mass quantity order, up to MOQ(packing with customer`s brand LOGO): delivery time: 25-30days
