- Overview
- Specification
- Company Profile
- Certifications
- Customer′s Feedback
- Packing
Basic Info.
Model NO.
HK-MF-
Control Method
Can Bus Control/Enable
Mating Connectors Kits
Provided Free
Waking up
12V 5A
Power
3.3kw
Efficiency
94%
Voltage Level
48V 72V 96V 108V 144V 312V
After-Sales Service
24 Hours Online
Type
Slow EV Charging Station
Certification
CE, ISO, RoHS
Warranty
24 Months
Transport Package
Carton

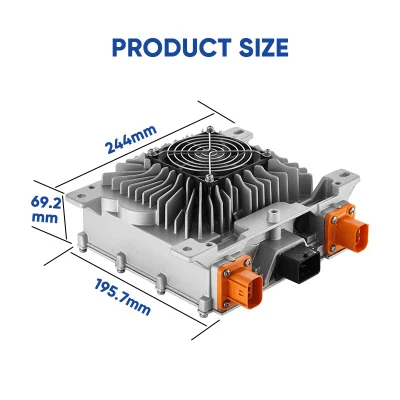

Specification
24.4*19.6*6.9cm
Trademark
EVPT CHARGER
Origin
China
HS Code
8504409992
Production Capacity
500000PCS/Year
Packaging & Delivery
Package Size
24.40cm * 19.60cm * 6.90cm
Package Gross Weight
5.400kg
Product Description
| 3.3kW On Board Charger for EV | ||||
| Model | Rated Vout | Vout Range | Rated Lout | Cooling Method |
| HK-MF-48-40 | 48V | 34-68VDC | 40A | Air Cooling/Liquid Cooling |
| HK-MF-72-40 | 72V | 44-99VDC | 40A | Air Cooling/Liquid Cooling |
| HK-MF-108-32 | 96V/108V/115V | 65-155VDC | 32A | Air Cooling/Liquid Cooling |
| HK-MF-144-23 | 144V | 100-200VDC | 23A | Air Cooling/Liquid Cooling |
| HK-MF-312-10 | 312V | 220-450VDC | 10A | Air Cooling/Liquid Cooling |
| Air Cooling/Liquid Cooling | AC90V - AC264V |
| Rated Voltage | 110 - 450VDC |
| AC Input Frequency | 45 - 65 Hz |
| AC Power Factor | ≥ 0.98 |
| Full Load Efficiency | ≥ 93% |
| Environmental Enclosure | IP67 |
| Ambient Temperature | -40ºC - +55ºC |
| Storage Temperature | -40ºC - +100ºC |
| Control Method | With Can Bus |
Matching Connectors
Connector details display, supporting different types of connectors, please contact our technical sales staff for additional connector models
Connector details display, supporting different types of connectors, please contact our technical sales staff for additional connector models
Matching Connectors installation
Use matching connectors to connect cables. The cables can be selected according to your preferences. We provide different types of connectors to ensure normal use.
Use matching connectors to connect cables. The cables can be selected according to your preferences. We provide different types of connectors to ensure normal use.
| Input end details show, there are 3 pins socket or plug | Signal end details show, there are 32 pins socket or plug | Onput end details show, there are 2 pins socket or plug |
Application Scenarios.
Our DCDC converter have exported to more than 20 countries and regions. Such as India, Germany, USA, UK, Australia and so on. With a widely praised.
It can be used for electric forklift, new energy vehicle, golf cart, lawn power, street sweeper, boat, RV, SUV, electric aircraft, EV conversion and so on.
Our DCDC converter have exported to more than 20 countries and regions. Such as India, Germany, USA, UK, Australia and so on. With a widely praised.
It can be used for electric forklift, new energy vehicle, golf cart, lawn power, street sweeper, boat, RV, SUV, electric aircraft, EV conversion and so on.
| Packing Method: | Delivery Method: |
| 1. Foam+ Box+ Carton+ Wooden frame. | By air, sea or land according to customer's choice. |
| 2. Foam + Color box + Carton. | |
| 3. As per clients require. | Loading Port: |
| Shanghai port or other port you want. | |
| Shipping Time: | |
| About 15-30 days for small quantity. | Guarantee: |
| About 45-60 days for large quantity. | 1 Year. |
FAQ
Q: Can you guarantee the quality with such a low price? A: We have signed a long-term strategic cooperation agreement with battery manufacturers. All the prices are the lowest in the market, and cell consistency is good. We buy a lot at one time, so the price is very competitive.
Q: Can you provide inspection report when delivery? A: We can provide the manufacturer's test report and the original purchase contract.
Q: How do you transport lithium batteries? A: We have professional freight forwarding and export qualifications. We can ensure that the goods are received within 15-20 days after payment is received.
Q: How are your batteries after sale? A: We have a 10-year R&D experience of professional and technical team, can remote guidance or help customers solve problems on the spot.
Q: What's the MOQ for lithium batteries? A:We Support small order as one piece.
Q: Can you provide inspection report when delivery? A: We can provide the manufacturer's test report and the original purchase contract.
Q: How do you transport lithium batteries? A: We have professional freight forwarding and export qualifications. We can ensure that the goods are received within 15-20 days after payment is received.
Q: How are your batteries after sale? A: We have a 10-year R&D experience of professional and technical team, can remote guidance or help customers solve problems on the spot.
Q: What's the MOQ for lithium batteries? A:We Support small order as one piece.
