Basic Info.
Model NO.
QW192-400-FC
Size
285*140*90mm
Certification
PSE, RoHS, CB, CE, FCC SAA Rcm
Socket Type
Au/EU/UK/Us Plug
Recyclable
Recyclable
Input Voltage
100-240VAC 50/60Hz
Color
Black
Transport Package
Corrugated Paper Packing Box
Specification
Weight: 2950± 50g(only body)
Trademark
QUAWIN/OEM
Origin
Shenzhen
HS Code
850431900
Production Capacity
50000 Pieces

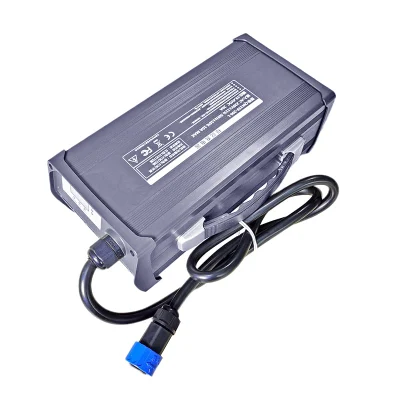

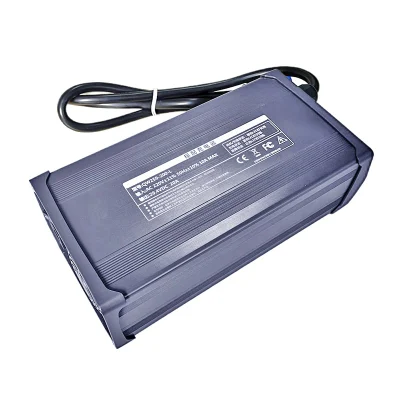

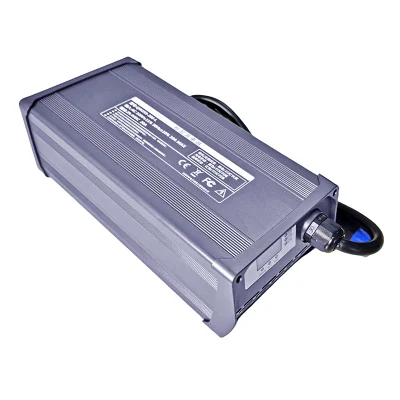

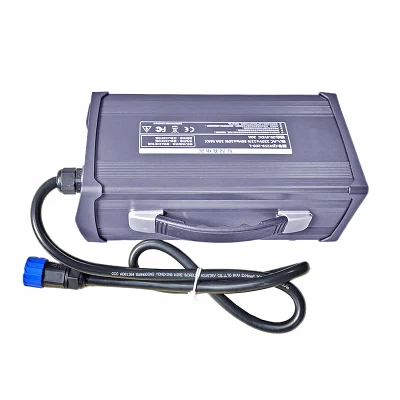

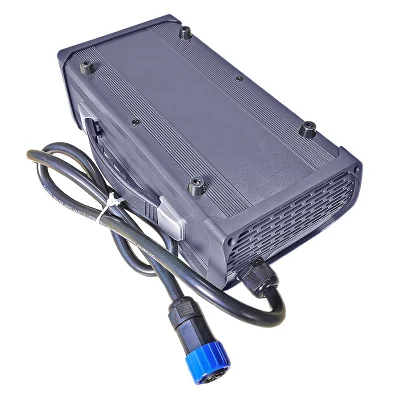

Product Description
Quick Detail:
Brand Name:QUAWINModel Number:QW192-400-FC
Use:6S 18V/19.2V Lifepo4 battery pack
Type:Electric
Place of Origin:Guangdong China (Mainland)
Battery charger:automatic battery charger 21.9V
Color:Black/Army green
Shell Material:Aluminium alloy
Additional functionality:LED display
Additional features:CANBUS communication protocol
Input voltage:100-240VAC 50/60Hz with PFC
Output voltage:21.9V
Output current:40a(Max)
Output power:876W
Charge mode:CC-CV(Constant Current-Constant Voltage)
Certification:CB CE FCC PSE SAA RCM
Output Connector:Waterproof plug, Crocodile Clip, Aviation Connector, XLR, Ring terminal, Aviation Model plug, SAE Plug, Anderson Connector, Customized
Packaging & Delivery:
4pcs/Carton
Carton size: 475*422*375mm
Delivery Detail:sample within 7 work days,15~25 days for bulk order
Carton size: 475*422*375mm
Delivery Detail:sample within 7 work days,15~25 days for bulk order
Specifications:
6S 18V/19.2V Lifepo4 battery pack
Features:
• Charging mode:CC-CV(Constant Current-Constant Voltage)
• High efficiency and low power consumption
• Stabilized output and low noice
• Efficiency(at 100% load): >=90%
• Operating temperature:-20ºC ~ 45ºC
• Storage temperature:-40ºC ~ 85ºC
• Operating humidity:5%~90%RH
Specification:
• Input: 100-240VAC 50/60Hz with PFC
• Output: DC 21.9V
• Charging current: 40a(Max)
• Dimensions (mm): 285*140*90
• Weight: 2950±50g(only body)
Safety protections:
• Over Voltage protection
• Short Circuit protection
• Polarity error protection
• Over power protection
• Overheating protection
LED Indicator:
Waiting Mode:LED(GREEN) ON
Charging Mode:LED(BLUE) FLASH
Full Charged Mode:LED(GREEN) ON
Charge Error Mode:LED(RED) FLASH
Call us to know more details datasheet.
| Typical Product Model | |||||
| Model | Input Voltage(V) | Battery Voltage(V) | Charging Voltage(V) | Charging Current(A) | |
| QW128-500-FC | LiFePO4 | AC 100~264V | 12.8(4S) | 14.6 | 50 |
| QW256-300-FC | 25.6(8S) | 29.2 | 30 | ||
| QW384-200-FC | 38.4(12S) | 43.8 | 20 | ||
| QW512-150-FC | 51.2(16S) | 58.4 | 15 | ||
| QW640-120-FC | 64(20S) | 73 | 12 | ||
| QW768-100-FC | 76.8(24S) | 87.6 | 10 | ||
| QW148-500-LC | Lithium | 14.8(4S) | 16.8 | 50 | |
| QW259-300-LC | 25.9(7S) | 29.4 | 30 | ||
| QW370-200-LC | 37(10S) | 42 | 20 | ||
| QW481-150-LC | 48.1(13S) | 54.6 | 15 | ||
| QW629-120-LC | 62.9(17S) | 71.4 | 12 | ||
| QW740-100-LC | 74(20S) | 84 | 10 | ||
