Basic Info.
Model NO.
RS-LFP48V200AH
Battery Size
680*495*185mm
Brand Name
Rosen or OEM
Certification
CE/Rosh/MSDS/Un38.3/IEC/ISO9001/ISO14001
Weight
108kg
Product Name
LiFePO4 Lithium Battery Pack
Nominal Capacity
5/7.5/10kwh
Cycle Life
More Than 6000 Times
Material
LiFePO4
Display
LCD Indicator
Color
Grey, Black, Red, Green, White etc
Battery Cell
3.2V 50ah Prismatic Cell
Inverter Matched
Solax, Deye, Goodwe, Growatt, Sofar, Gmde
Transport Package
Wooden Box / Carton Packing
Specification
48V 200AH Lithium Battery
Trademark
Rosen Solar/OEM/ODM
Origin
China
HS Code
8507600090
Production Capacity
10000 Set/Sets Per Week
Packaging & Delivery
Package Size
68.00cm * 49.50cm * 18.50cm
Package Gross Weight
108.000kg
Product Description
Product Overview
Technical Specification
Attractive Design
Rosen Lithium battery has compact design,
LCD screen,convenient setting buttons,
bluetooth Monitor on your smartphones,
and cables&accessories ready for installation.
To welcome the world cooperation we accept
OEM with your logo design!
Rosen Lithium battery has compact design,
LCD screen,convenient setting buttons,
bluetooth Monitor on your smartphones,
and cables&accessories ready for installation.
To welcome the world cooperation we accept
OEM with your logo design!
Wide Application
Rosen Lithium Ion Powerwall series are widely
used in Solar Systems for residential and
commercial use. With more than 6000 times
deep cycle, up to 90% DOD and phosphate
battery Cell, Rosen Powerwall has won global
approval!
Rosen Lithium Ion Powerwall series are widely
used in Solar Systems for residential and
commercial use. With more than 6000 times
deep cycle, up to 90% DOD and phosphate
battery Cell, Rosen Powerwall has won global
approval!
Integrated Function
Rosen Powerwall can be installed in parallel
with combiner box for protection, with it's
integrated BMS communication protocol
to comprehensive hybrid and off grid inverters!
Rosen Powerwall can be installed in parallel
with combiner box for protection, with it's
integrated BMS communication protocol
to comprehensive hybrid and off grid inverters!
| Type | Module | Powerwall | ||
| Model | LFP48V50AH | LFP48V100AH | LFP48V150AH | LFP48V200AH |
| Battery Capacity [Ah] | 50Ah | 100Ah | 150Ah | 200Ah |
| Nominal Battery Energy [kwh] | 2.4 | 4.8 | 7.2 | 9.6 |
| Max Discharge Current [A] | 50 | 100 | 150 | 200 |
| Net Weight | 35 | 68 | 95 | 108 |
| Dimension [H*W*D, mm] | 442*480*88 | 680*495*185 | 680*495*185 | 680*495*185 |
| Operating Temperature Range | -20 ~ 50 [ºC ] | |||
| Life Cycles | >6000 | |||
| Nominal Voltage [V] | 48Vdc | |||
| Communication | CAN/RS485/DRY CONTACT | |||
| Certificate & Safety Standard | TUV / CE / EN62619 / IEC62040 / UN38.3 | |||
| Warranty | 10 Years | |||
| Alarms | Battery Operation/Out of Battery/System fault | |||
| Pros | Applied in off-grid and hybrid system, Compact Design, Modular Expansion | |||
| Monitoring & Protection | With BMS protection in each Module, and breaker embedded in the system | |||

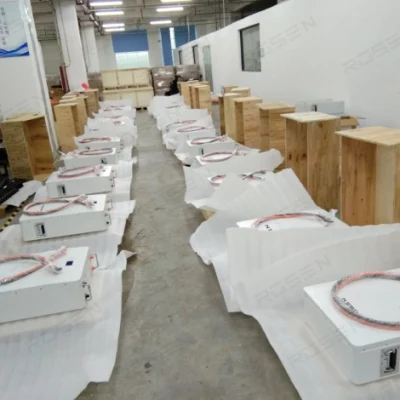

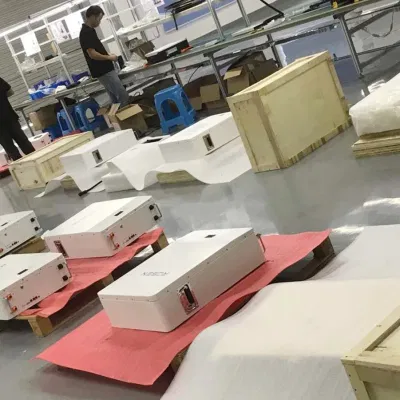

Package & Delivery

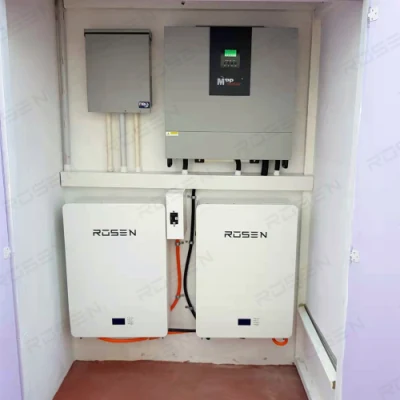

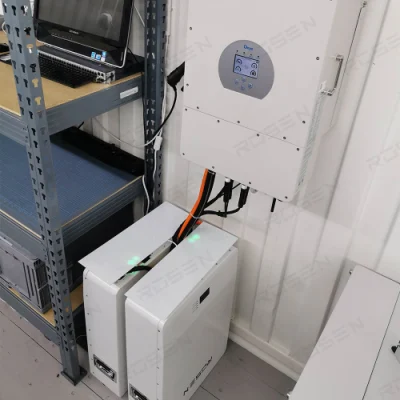

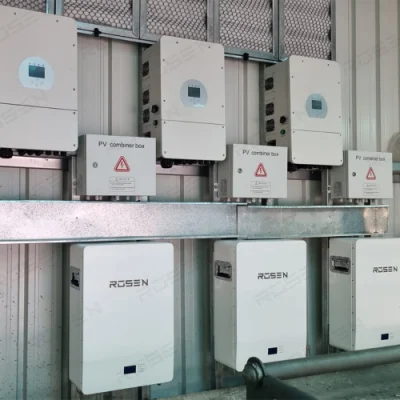

Battery Projects
