Basic Info.
Model NO.
DSF40
Current Tolerance
< 0.03A
Voltage Tolerance
< 0.03V
Discharge Current
0.5-20A
Charge Current
0.5-10A
Applicable Batteries
Lithium and Lead Acid Batteries
Testing Range
9V-99V
Charging Cut-off Current
0.1-5A Adjustable
Max. Loop Index
16 Times
Loop Idle Interval
0-20 Mins Adjustable
Comm. Port
LAN
Transport Package
Seaworthy Packing
Specification
45*48*14.5 cm
Trademark
DK
Origin
China
HS Code
9030849000
Production Capacity
50000 Pieces/Year
Product Description
Description:

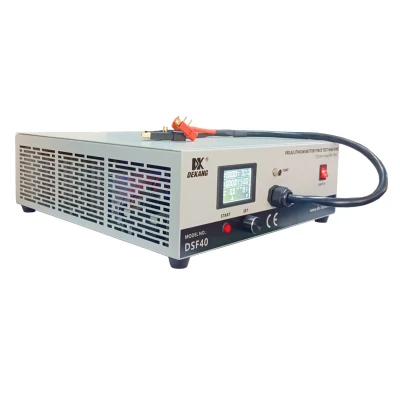

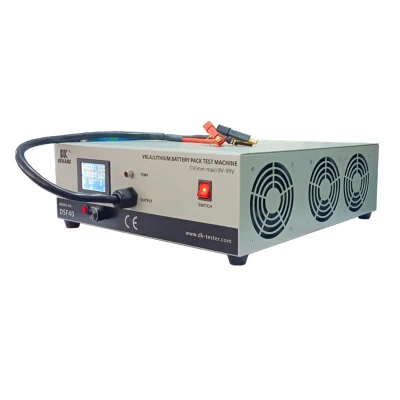

The Lead-Acid & Lithium Battery Series Charge Discharge Tester DSF40 is integrated with the function of high-precision capacity series discharging test, high-precision series charging test. With a wide voltage detection range from 9V to 99V which makes it can measure varieties of batteries from 12V-84V. Charging test and discharge test can be performed for lead-acid batteries, lithium batteries and other types of batteries. The maximum charge & discharge cycle index is 16 times, which can also be used as the aging equipment in battery production.
The device provides two operation modes for the convenience of customers, Panel operation and Online operation. After installing the specified software, the device can be managed and operated through the computer: charge-discharge setting, data sampling, test report imports and exports, test data analysis, charge-discharge curves drawing. One computer can manage multiple devices simultaneously through a switch.
The device is integrated with an intelligent battery temperature monitoring system that can monitor the real-time temperature of the battery at any time, and control the working step switch and charging stop .

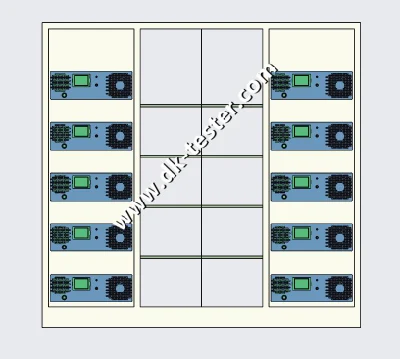

The testing cabinet composed of a single machine can meet the requirements of mass testing.
It is a high-precision-specific instrument suitable for electric vehicle & battery manufacturers and its dealers to test the performance of the battery pack. And it can be widely used in battery testing and maintenance, production, sales, and after-sales service as efficient & intelligent battery testing and maintenance equipment.
Software Interface
About us:
Founded in 2005, DEKANG is a high-tech enterprise involved in researching & developing, production and sales of Storage Battery Measuring & Maintenance Equipment, EV Charging Station, Shared Power Swapping Station, Shared Mobility Solution. We provide the clients with the complete solution of storage battery service.
Product Category:
Battery Charging & Discharging Tester
Battery Testing and Recovery Equipment
Lithium Battery Intelligent Charger
E-Bike/E-scooter Charging Station
Shared Battery Charging & Swapping System
Intelligent Lithium Batteries
Battery-swapping E-bike/E-scooter and so on.
Why choose us?
Delivery
Sample order dispatched by express via DHL, FEDEX, TNT, UPS or any other express services you prefer to, also we can coordinate to send it to other agreed address in China for loading with your convenience
Normal orders delivered by sea or air as per your instructions.
Equipment operation training & guidance
In addition to providing user manual and operation videos, after you purchase the equipment, we will also provide operation training and guidance support through telephone, email, video connection, remote connection and other ways, so as to ensure that you are proficient in the operation and use of the equipment. Our equipment is intelligent in design, rich in functions, and easy to operate. Make it easy for you to operate.
Warranty:
12-month warranty, lifelong after-sales service and free technology service.
After-sales service
Very important: the DEKANG exporting division is the only official exporting department of DEKANG. Anyone who obtains our equipment from a third party or through other channels may have the risk of not being able to obtain perfect after-sales & technology service. In order to enjoy better service and technology support, overseas users please purchase directly from the official exporting department of DEKANG.
.
Free replacement parts will be provided during the warranty period, and we will dispatch the replacement parts to the user by DHL, UPS, TNT or FEDEX at our account and guide the user to replace via phone, email or video. The modular design of our equipment makes it easy to install and replace
After the warranty period, the cost of replacement parts will be charged. If you pay for the replacement parts, you can enjoy a free warranty within half a year from the maintenance date for the same problem.
Lifelong free technology service provided by us, the users can advise malfunction and inquire the maintenance technology through the telephone, fax, email, and social media, etc.
Paid service
The conditions below are not included in the free maintenance range, the company provide the paid service, kindly note:
The Lead-Acid & Lithium Battery Series Charge Discharge Tester DSF40 is integrated with the function of high-precision capacity series discharging test, high-precision series charging test. With a wide voltage detection range from 9V to 99V which makes it can measure varieties of batteries from 12V-84V. Charging test and discharge test can be performed for lead-acid batteries, lithium batteries and other types of batteries. The maximum charge & discharge cycle index is 16 times, which can also be used as the aging equipment in battery production.
The device provides two operation modes for the convenience of customers, Panel operation and Online operation. After installing the specified software, the device can be managed and operated through the computer: charge-discharge setting, data sampling, test report imports and exports, test data analysis, charge-discharge curves drawing. One computer can manage multiple devices simultaneously through a switch.
The device is integrated with an intelligent battery temperature monitoring system that can monitor the real-time temperature of the battery at any time, and control the working step switch and charging stop .
The testing cabinet composed of a single machine can meet the requirements of mass testing.
10-Channel Lithium Battery Pack Charge Discharge Testing/Aging System
Model No.: DSF40-10
Model No.: DSF40-10
It is a high-precision-specific instrument suitable for electric vehicle & battery manufacturers and its dealers to test the performance of the battery pack. And it can be widely used in battery testing and maintenance, production, sales, and after-sales service as efficient & intelligent battery testing and maintenance equipment.
Applicable Batteries:
Lithium Batteries & Lead-Acid Batteries
Features:
- The Instrument uses a high-definition LCD screen display, each index is clear at a glance.
- The parameter setup and parameter switching are set and switched by a "START" switch and a "SET" knob. All parameters (voltage, current, mode) settings have the saving function.
- Intelligent speed fan can run continuously, delay the power-off of the fan, and blow off the remaining heat.
- Polarity protection, anti-reverse connection, and so on.
- Each circuit is the independent module, no influence each other
- Maximum cycle number is 99, which can be used as battery aging equipment.
- Data protection startup: If the connection cables disconnect from the battery during the charging and discharging, after reconnecting the cables with the battery, press and hold the "Start" button to continue working.
- Power-off memory function.
- Modular design, easy maintenance and replacement of accessories.

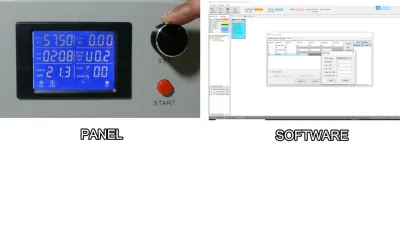

- Two operation methods: Panel & Software. After installing the specified software, the device can be managed and operated through the computer: charge-discharge setting, data sampling, test report imports and exports, test data analysis, charge-discharge curves drawing.
- One computer can manage multiple devices simultaneously through a switch, making testing more efficient and simpler.
- Intelligent battery temperature monitoring system monitors the real-time temperature of the battery at any time, testing and maintenance are safer and easier.
- The Instrument uses a high-definition LCD screen display, each index is clear at a glance.
- The parameter setup and parameter switching are set and switched by a "START" switch and a "SET" knob. All parameters (voltage, current, mode) settings have the saving function.
- Intelligent speed fan can run continuously, delay the power-off of the fan, and blow off the remaining heat.
- Polarity protection, anti-reverse connection, and so on.
- Each circuit is the independent module, no influence each other
- Maximum cycle number is 99, which can be used as battery aging equipment.
- Data protection startup: If the connection cables disconnect from the battery during the charging and discharging, after reconnecting the cables with the battery, press and hold the "Start" button to continue working.
- Power-off memory function.
- Modular design, easy maintenance and replacement of accessories.
- Two operation methods: Panel & Software. After installing the specified software, the device can be managed and operated through the computer: charge-discharge setting, data sampling, test report imports and exports, test data analysis, charge-discharge curves drawing.
- One computer can manage multiple devices simultaneously through a switch, making testing more efficient and simpler.
- Intelligent battery temperature monitoring system monitors the real-time temperature of the battery at any time, testing and maintenance are safer and easier.
Technical Specification
Illustrations:
LCD Interface:

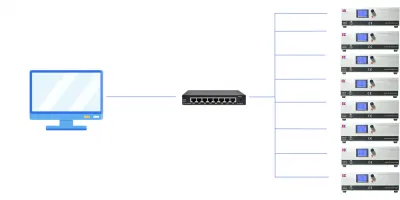

Multiple Devices Connection Diagram:
Packing Information:
Model No.: DSF40
Product Size(L*W*H): 45*48*14.5 cm
Pcs/Ctn: 1 pcs/ctn
Package Size(L*W*H): 58*60*26.5 cm
G.W.: 13 kgs
N.W.: 11 kgs
<0.03 v=""> | Input Voltage: | AC 220V± 10% 50Hz/60Hz | Maximum Power: | 2500W |
| Charging Method: | Constant current & constant voltage charge | Discharging Method: | Constant current discharge |
| Charging Test Max. Voltage: | 9V-99V adjustable 0.1V stepping | Discharging Test Cut-off Voltage: | 9V-99V adjustable 0.1V stepping |
| Charging Current: | 0.5-20A adjustable | Discharging Current: | 0.5-40A adjustable |
| Charging Cut-off Current: | 0.1-5A adjustable | Voltage/Current Errors: | <0.03 v |
| Discharging Stepping Current: | 0.1A | Charging Stepping Current: | 0.1A |
| Max. Loop No.: | 16 times | Loop Idle Interval: | 0-20 MINS adjustable |
| Communication Port: | LAN | Operation Methods: | Panel/Software |
Illustrations:
LCD Interface:
Multiple Devices Connection Diagram:
Packing Information:
Model No.: DSF40
Product Size(L*W*H): 45*48*14.5 cm
Pcs/Ctn: 1 pcs/ctn
Package Size(L*W*H): 58*60*26.5 cm
G.W.: 13 kgs
N.W.: 11 kgs
