Basic Info.
Model NO.
BAC-1206
Brand
Aisikai
Color
Black
Warranty
1 Year
Max Input Current
2.5A
Factory Charging Current
6A
Max Output Power
135W
Weight
0.7kg
Efficiency
>85%
Dimensions
143*96*55mm
Transport Package
1PC/Box
Specification
12V/24V
Trademark
AISIKAI
Origin
China
HS Code
8409999990
Production Capacity
10000PCS/Month
Product Description
| Category | Items | 12V | 24V |
| Model | BAC | BAC-1206 | BAC-2403/2405/2410 |
| Input | Nominal input voltage | AC(100~240)V | |
| Max input voltage | AC(90~305)V | ||
| Frequency | 50Hz/60Hz | ||
| Max input current | 2.5A | 2.5A/2.5A/4A | |
| Efficiency | >85% | ||
| Output | Charging current | 4A~6A,Error ±2% | 2A~3A/5A/10A,Error ±2% |
| Factory charging current | 6A | 3A/5A/10A | |
| Max output power | 135W | 135W/135W/290W | |
| Min output voltage | 7.5V | ||
| No-load output voltage | 13.8V,Error ±1% | 27.6V,Error ±1% | |
| No-load consumption | <3W | ||
| Insulation | Insulation resistance | When between input and output, output and shell are both AC1500V 50Hz 1min, the leakage current IL≤3.5mA | |
| Insulation voltage | When between input and output, output and shell are both AC1500V 50Hz 1min, the leakage current IL≤3.5mA | ||
| Working conditions | Working temperature | (-30~55)ºC | |
| Storage temperature | (-40~85)ºC | ||
| Working humidity | 10%RH~95%RH(no condensation) | ||
| Structure | Weight | 0.65kg | 0.65/0.65/1.15kg |
| Dimensions (L*W*H mm) | 143*96*55 (3A/5A/6A); 205*146*55 (10A) | ||

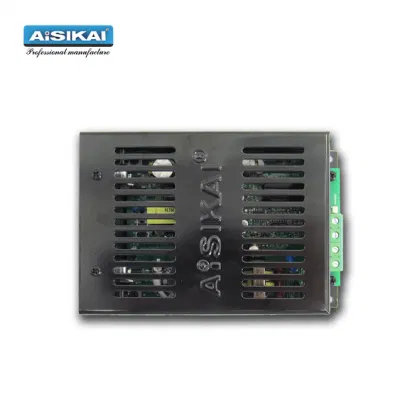

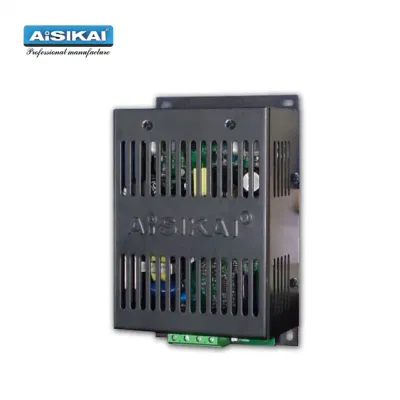

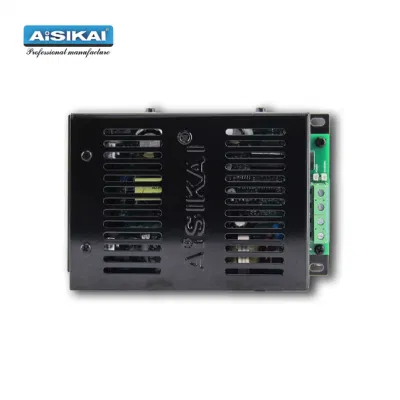

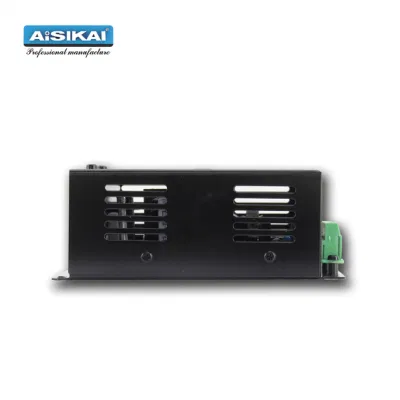

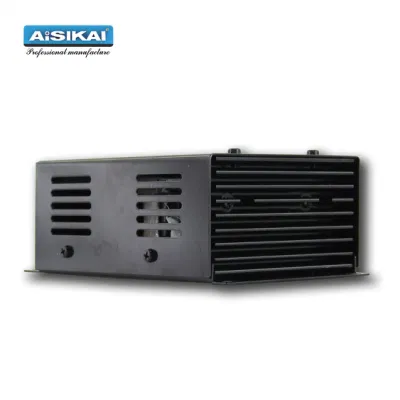

BAC Battery Charger
OVERVIEW:
BAC series switching battery charger using the latest swtich power components is desigened for charging lead-acid starting battery which is suitable for lead-acid battery float charge. The maximum charging current for 12V charger is 6A and the maximum charge current for 24V charger is 3A.
Designed for engine starting operation of battery charging, charging more.With constant voltage, constant current, a trickle floating, full automatic stop, short circuit, reverse connection, etc.
Selling point:
Does many sections of charging, extend battery life 30%;
Does have short circuit resistance, resistance to reverse function;
Does high reliability, can work normally in - 30 ~ 70 degrees;
Does plus: one year replacement, lifetime warranty.
OVERVIEW:
BAC series switching battery charger using the latest swtich power components is desigened for charging lead-acid starting battery which is suitable for lead-acid battery float charge. The maximum charging current for 12V charger is 6A and the maximum charge current for 24V charger is 3A.
Designed for engine starting operation of battery charging, charging more.With constant voltage, constant current, a trickle floating, full automatic stop, short circuit, reverse connection, etc.
Selling point:
Does many sections of charging, extend battery life 30%;
Does have short circuit resistance, resistance to reverse function;
Does high reliability, can work normally in - 30 ~ 70 degrees;
Does plus: one year replacement, lifetime warranty.
BAC Battery Charger
PERFORMANCE FEATURES:
1). Designed in switching power structure, wide range of AC voltage input.small volume light weight and high efficiency;
2). Three-stage charging method (constant current firstly and then constant voltage), fully considering charging property of the lead-acid battery, canavoid overcharging and extend the battery life to the fullest;
3). With short circuit and reverse connection protection;
4). Charging voltage and current can be adjusted via potentiometer on the spot;
5). LED display: AC power indication and charging indication;
6). Horizontal type for installation of BAV06A, easy to install.
PERFORMANCE FEATURES:
1). Designed in switching power structure, wide range of AC voltage input.small volume light weight and high efficiency;
2). Three-stage charging method (constant current firstly and then constant voltage), fully considering charging property of the lead-acid battery, canavoid overcharging and extend the battery life to the fullest;
3). With short circuit and reverse connection protection;
4). Charging voltage and current can be adjusted via potentiometer on the spot;
5). LED display: AC power indication and charging indication;
6). Horizontal type for installation of BAV06A, easy to install.
| Model | Installation | Battery Type | Rated Output Current |
| BAC-1206 | Horizontal | 12V | 6A |
| BAC-2403 | Horizontal | 24V | 3A |
| BAC-2405 | Horizontal | 24V | 5A |
| BAC-2410 | Horizontal | 24V | 5A |
BAC Battery Charger
CHARGING PRINCIPLE
BAC chargers use 2-stage charging method which is in accordance with the battery charging characteristics.
When the battery voltage is under the threshold, the charging current is constant.
When the batteryvoltage is higher than the threshold,the charging current decreases asthe battery voltage rises.
When the charging current reaches the set value, the charger turns into the floating charging mode. At this time,charging current decreases gradually
and the battery voltage rises gradually to the set value.
When the charging current is lower than 0.3A(0.5A for 24V 5A), the battery is basically fullycharged (the charging indication LED turns OFF). Afterwards,the chargingcurrent only offsets the self-discharging of the battery and the long time chargingdoes no harm to the battery.
The charger can maintain the batteryin a fullstate and ensure the battery life.
Note:
1.The internal output of the charger is connected to diode and current limiting circuit.
The charger can be used in parallel with the charging generator on the engine.
It is not necessary to disconnect the charger when starting.
2.When used on generator sets, it is recommended to connect the charging calbe to the battery terminal separately, because a voltage drop will be generated on the charging cable due to the high charging current, which can affect the sensor sampling accuracy.
