Basic Info.
Model NO.
mobile charger
Certificate
CE RoHS ISO
Single Output Max. Current
200 AMP
Storage Temperature
-40 to 70*C
AC Supply System
Three-Phase, 5 Wire AC System
Input Frequency
45-65Hz
After-sales Service
2 Years
Type
Fast EV Charging Station
Certification
CE, ISO, RoHS
Warranty
24 Months
Transport Package
Wooden Stake + Cardboard-Shell
Specification
Input Voltage: 270-570V
Trademark
Future Digital Energy
Origin
Shenzhen
Production Capacity
100000
Product Description
| No. | PERFORMANCE SPECIFICATIONS | |
| 1 | Storage Battery Module Energy | 3.84kwh |
| 2 | Total Energy | 19.2 kwh |
| 3 | Internal Battery Module DC Voltage | 192V |
| 4 | Feed-in Type | Single Phase |
| 5 | Grid Frequency | 50HZ |
| 6 | Maximum Charge Current | 20A |
| 7 | Charging Gun Output Current | 45A |
| 8 | Charging Gun Output Voltage Range | DC200V-420V |

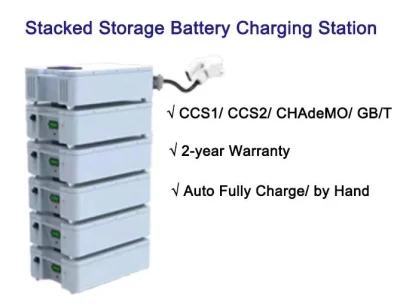

| 9 | Charging Gun Options | CCS1/CCS2/CHAdeMo/GB/T Standard |
| 10 | Charging Gun Cable length | 3 m |
| 11 | Charging Mode | by hands |
| 12 | LCD Display | 4.3 inches |
| 13 | Warranty | 2 years |

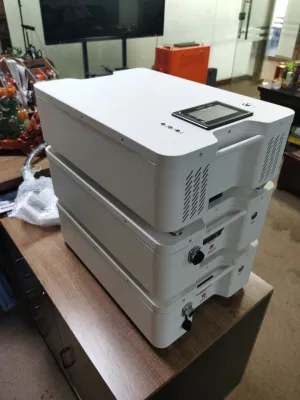

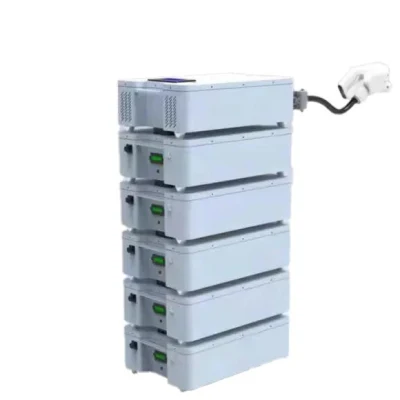

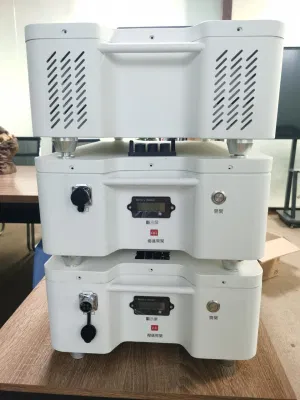

This Portable EV charging station is a full-integrated DC battery system for EV or residential commercial use.
Its rechargeable lithium iron phosphate battery pack provides energy storage for electric vehicles.
The product demonstration specific video are on YouTube.(You can check video through this link)
https://youtu.be/cLuNyXn_X5Q
Its revolutionary compact design achieves market-leading energy density and is easy to install each module is equipped with an independent BMS system, enabling owners to quickly realize the benefits of reliable emergency clean power.
Bring energy to your vehicle wherever and whenever it's needed.
| No. | MECHANICAL SPECIFICATIONS | |

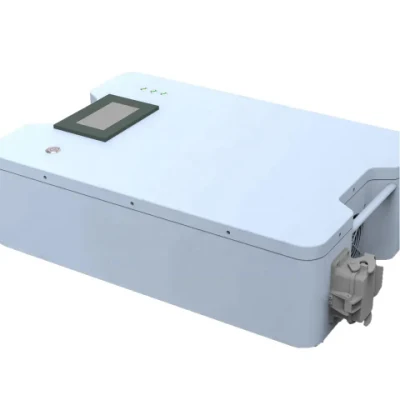

| 14 | Control module dimensions | 550 mm*370 mm*171 mm |
| 15 | Battery module dimensions | 550 mm*370 mm*160 mm |
| 16 | Control module weight | 30kg |
| 17 | Battery module weight | 40kg |
| ENVIRONMENTALSPECIFICATIONS | ||
| 18 | Operating Temperature | -20°C to 60°C |
| 19 | Recommended Temperature | 0°C to 30°C |
| 20 | Operating Humidity (RH) | Up to 90% condensing |
| 21 | Storage Conditions | 0°C to 40°C |
| 22 | Maximum Elevation | 3000 m |
| 23 | Environment | indoor and outdoor rated |
| 24 | Ingress Rating | IP54 |
| 25 | Wet Location Rating | Yes |
| 26 | Noise Level | <40 Dba at 30°C |
