Basic Info.
Model NO.
PVM5.5
Phase
Single
Output Power
>1000W
Certification
SAA, CE, ISO9001, CCC
Brand
Zlpower
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Full-Bridge Type
Nature of Wave String
Sine Wave Inverter
Nominal Power
5500W
Input Phase
Single Phase
Wave Form
Pure Sine Wave
Peak Power
2times of Rating Power
Built-in MPPT Solar Charge Controller
50A/80A Optional
Transfer Time
10ms
Input Voltage
230VAC
Battery Over Charge Protection
60VDC
Parallel
9PCS
Protection
Overload,Short Circuit
Transport Package
Export Standard Package/Based on Your Requirement
Specification
CE, ISO9001, RoHS
Trademark
ZLPOWER/OEM
Origin
Shenzhen, China
HS Code
8504403090
Production Capacity
10, 000PCS/Month
Packaging & Delivery
Package Size
75.00cm * 65.00cm * 45.00cm
Package Gross Weight
20.000kg
Product Description

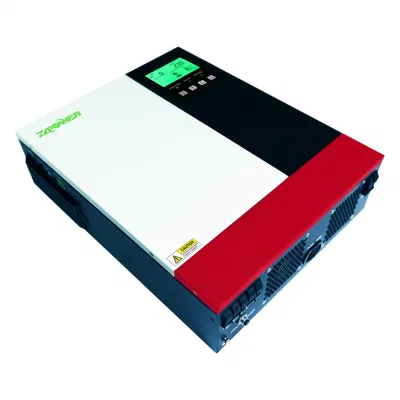

48V Lead-Acid,Lithium Battery and Without Battery 5500W Hybrid Inverter DC to AC Off-Grid Pure Sine Wave Inverter with 80A Charge Controller
Feature: 5500W Pure Sine Wave Inverter 48V DC to 220V-230V AC, built in 80A Mppt charge controlle, is a new all-in-one hybrid solar charge inverter, Max 5500W 450V(Voc) Input , Fit for 48V Lead-Acid(AGM/FLD/Lithium/USER) and Lithium battery. Support Utility/Generator/Solar Charge.
LCD Setting: Configurable input voltage range for home appliances and personal computers via LCD setting. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current,AC/solar charger priority, and acceptable input voltage based on different applications.
Protection Function: Overload/ Over temperature/ short circuit protection. Smart battery charger design for optimized battery performance. Can work no battery.Generate power from PV directly to supply load, even without battery.PV to AC efficiency is much higher.please know if the inverter does not connect battery, the PV voltage must be over 200VDC .
Four Charging Modes: i.e. Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging; and two output modes are available, i.e. Inverter and Mains, to meet different application requirements.
Scope of Application: This inverter can power all kinds of appliances in home or office environment, including motor-type appliances such as tube light, fan, refrigerator and air conditioner.Notice:inverter is only suitable for Single-phase 230V AC outputsystem and not suitable for 110V phase separation and parallel system! ! !
Technical specifications:
Why choose us:
1. 16years manufacturing experience on power inverter and UPS
2. 5000pcs monthly production assure fast delivery time
3. Professional R&D person offer permanent technical supprt
4. 24-month worry-free after sales services.
5. 98% 5-star reviews from customers
6. CE, ETL certificates on inverters and UPS, ISO9001&ISO14001 on factory
CONTACT US:
https://zlpower.en.made-in-china.com/contact-info.html
Feature: 5500W Pure Sine Wave Inverter 48V DC to 220V-230V AC, built in 80A Mppt charge controlle, is a new all-in-one hybrid solar charge inverter, Max 5500W 450V(Voc) Input , Fit for 48V Lead-Acid(AGM/FLD/Lithium/USER) and Lithium battery. Support Utility/Generator/Solar Charge.
LCD Setting: Configurable input voltage range for home appliances and personal computers via LCD setting. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current,AC/solar charger priority, and acceptable input voltage based on different applications.
Protection Function: Overload/ Over temperature/ short circuit protection. Smart battery charger design for optimized battery performance. Can work no battery.Generate power from PV directly to supply load, even without battery.PV to AC efficiency is much higher.please know if the inverter does not connect battery, the PV voltage must be over 200VDC .
Four Charging Modes: i.e. Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging; and two output modes are available, i.e. Inverter and Mains, to meet different application requirements.
Scope of Application: This inverter can power all kinds of appliances in home or office environment, including motor-type appliances such as tube light, fan, refrigerator and air conditioner.Notice:inverter is only suitable for Single-phase 230V AC outputsystem and not suitable for 110V phase separation and parallel system! ! !
Technical specifications:
Why choose us:
1. 16years manufacturing experience on power inverter and UPS
2. 5000pcs monthly production assure fast delivery time
3. Professional R&D person offer permanent technical supprt
4. 24-month worry-free after sales services.
5. 98% 5-star reviews from customers
6. CE, ETL certificates on inverters and UPS, ISO9001&ISO14001 on factory
CONTACT US:
https://zlpower.en.made-in-china.com/contact-info.html
