Product Description

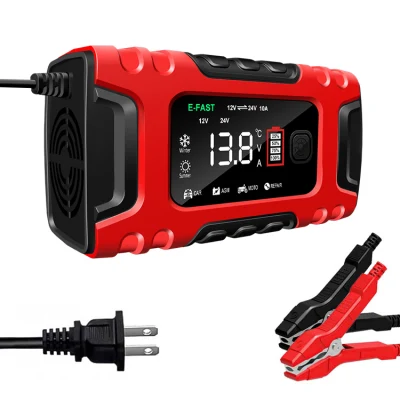

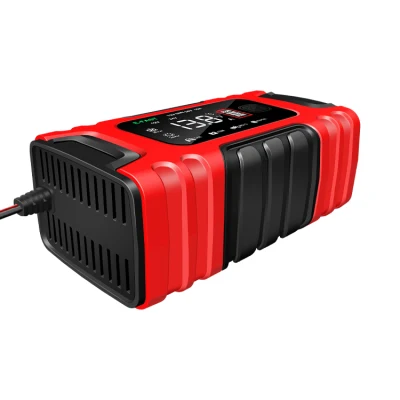

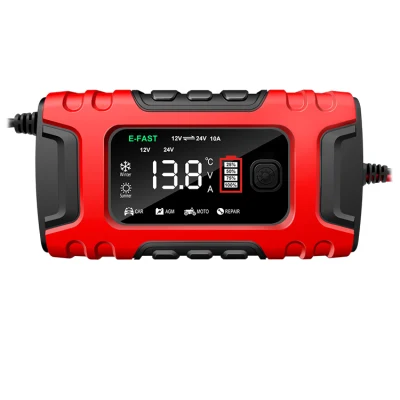

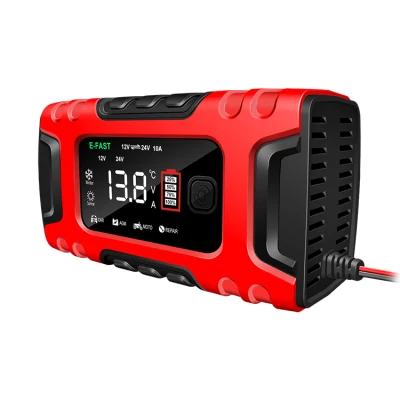

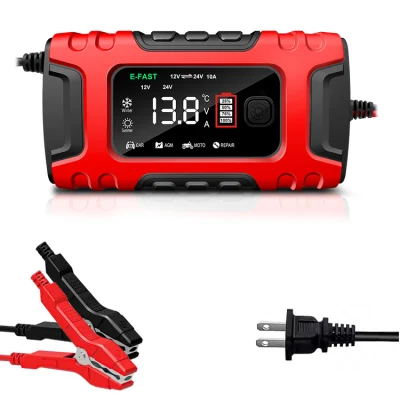

New Product 12V 10A 24V 5A Automatic Car Battery Charger for AGM GEL WET Battery Fast Charge
| Name | Battery Charger 12V 10A 24V 5A for Automatic Motorcycle Car |
| Material | ABS |
| Protection | Short Circuit Protection, Over-charging, Overcurrent, Overvoltage |
| Function | Battery charger, Standard Battery, Motorcycle Battery, Car battery |
| Output Power | 140W |
| Model Number | TK-600 |
| Use For | Motorcycle Car |
| Rated output | 12V/10A 24V/5A |
| Input voltage | 100-240VAC,50-60HZ |
| Dimension(L*W*H) | 170*90*60 mm |
| Weight | 0.61kg |
| Compliant standards | CE,IEC60335,EN61000,En55014 |
Product Multiple Protection:
(1) output short circuit, anti-reverse connection:
the product has an output short circuit, reverse battery prompt (reverse connection 1-2S detection, detection of reverse connection reverse connection or short circuit when the LCD display "ERO", the detection process will not cause damage to the product because of reverse connection or short circuit), and reverse connection, after the microprocessor program processing, there will be no reverse connection sparking phenomenon occurs.
(2) battery power detection:
no access to AC input voltage, battery clamps clamped on the positive and negative ends of the battery (red positive and black negative), you can display the battery current and voltage parameters in time (digital tube display data: voltage and ambient temperature cycle display, power grid according to the detected data in the form of a percentage display, the first power 6S self-test waiting, 6S not to show the temperature, 6S to reach the temperature and voltage cycle display).
during the charging process, detect the ambient temperature, timely adjustment of the product charging state to ensure battery life and charging safety, winter mode: LCD display snowflakes, summer mode: LCD display sun.
the product has over-temperature protection function, the product detects the temperature is too high, will start the over-tempterature protection program, when the temperature returns to normal values, restore the initial charging state.
the product has an overcharge protection function to avoid overcharging resulting in a decline in battery life and to enhance the reliability of charging safety (maximum charging time default 15.5-16.0H).
automatic self-test after the battery is charged, without artificial switching, the self-test passes into the floating charge, and vice versa into the compensation charge, the compensation charge is completed into the floating charge.
LCD display "FUL", power grid "100%" e: charging status: LCD cycle display voltage, current, temperature, power grid "charging special effects display" f: repair mode: LCD display "PUL", power grid "repair effect display", repair icon flashing g: no-load battery detection: LCD cycle display voltage, temperature, power grid according to the battery power in the form of percentage display.
Charging Steps: (1) detect the state of the battery before charging, the output alligator clips on both ends of the battery, red positive and black negative, with LCD display data (power on 6S self-test, 6S after the temperature and voltage cycle display, self-test before the display temperature), this step must ensure that AC power is not connected, only AC power disconnected before operation.
(2) thecharger AC input line into the plug, and then open the plug switch.
(3) mode selection (if the key after 30S self-locking, please remove any alligator clips, with LCD display OFF, key unlock,confirm good mode, clip on the alligator clips), and then charging.
(4) When the charger shows "FUL" or "End", it means that the charging or repair mode is over, disconnect the AC input at this time and observe the battery capacity status after 10S (LCD cycle shows voltage and temperature, the power grid shows the current battery capacity),confirm full, disconnect the alligator clips from the battery.
