Basic Info.
Model NO.
TE4-0246
Interface
Clip
Color
OEM
Input Voltage
120V/230V
Output
12V
Efficient
>75%
Charging Voltage
2/5/10/20A
Ambient Temp
-10-40
Housing Protection
IP65
Protection -1
Overtemp ,Reverse Polarity ,Over Charger
Protection -2
High and Low Voltage
USB
3.4A
Transport Package
Color Box
Specification
Color box: 32X22X12.8cm
Trademark
TONNY
Origin
China
HS Code
8504401990
Production Capacity
200000PCS
Packaging & Delivery
Package Size
46.00cm * 33.70cm * 27.50cm
Package Gross Weight
3.000kg
Product Description

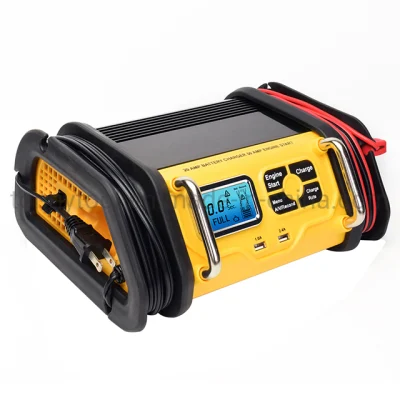

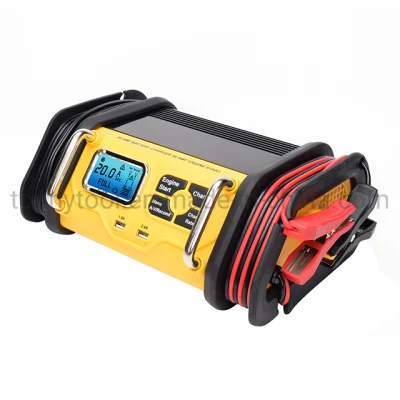

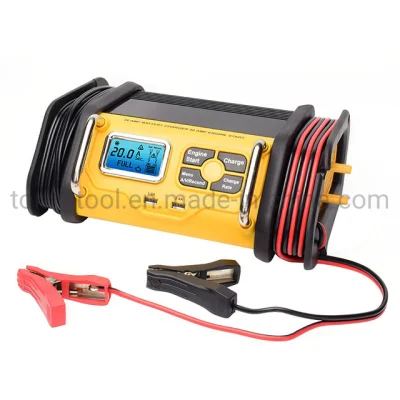

1.LCD screen
2.Battery Recondition
3.Charge rate
4.Engine start button
5.Battery charge button

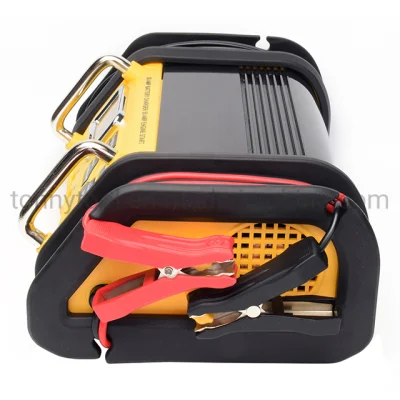

6.Positive (red) clamp
7.Negative (black) clamp
The TE4-0246 battery charger is for use on a normal 120V-230V circuit, and has a grounding plug that looks
like the plug illustrated in the sketch A in the illustration below. A temporary adaptor, which tools like the adapter
illustrated in sketches B and C, may be used to connect this plug to a two-pole receptacle as shown in sketch B if a
properly grounded outlet is not available. The temporary adapter should be used only until a properly grounded
outlet can be installed by a qualified electrician.

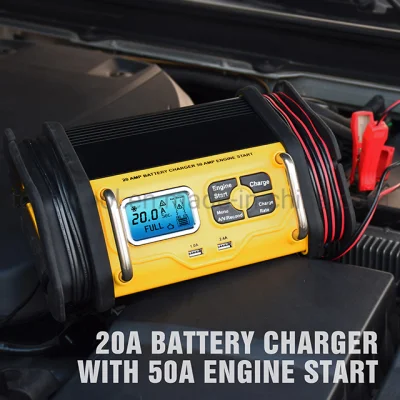

20A BATTERY CHARGER WITH 50A ENGINE START
- For all 12V lead-acid batteries(WET, MF, AGM and GEL)
- Fully automatic multi-stage charger with emergency engine start function
- Reconditioning sulfated batteries that have been sitting for long periods of time
- Easy readout for the charging status on the LCD screen
- Dual USB for charging mobile devices
- Fully protection for reverse polarity, short circuit, overcharge, over-temp, etc.
Dimension
| Model | TE4-0246 |
| Battery Type | 12V STD, GEL, AGM |
| Rated AC Input Voltage | AC105-125V, 60Hz or AC220-240V, 50Hz |
| Max Output Voltage | 14.4V±0.3 |
| Charging Current | 2A, 5A, 10A, 20A(MAX) |
| USB Output (Optional) | DC5V, 2.4A+1.0A |
| Engine Start | 50Amp |
| Activated Voltage | 4.2V |
| Desulfation function | Yes |
| Protection | Overheat |
| Short Circuit | |
| Reverse Polarity | |
| Overcharge | |
| Housing Material | ABS |
| Color | Customized |
| Certificate | cETL /CE-EMC/CE-LVD/ROHS |
| Weight | 2.85kg |
| Size | 30.5x19.5x11(cm) |
| Socket Standard | EU/AU/UK/US |
