Basic Info.
Model NO.
FY014610000
Size
AAAA
Certification
SASO, GOST-R, KC, PSE, CTIA, RoHS, TUV, CB, CE
Socket Type
Us UK EU Jp Au Universal
Recyclable
Recyclable
Item Name
10A 14.6V LiFePO4 Battery Charger
Inrush Current
15A for a Cold Start
Protections
Short Circuit Overload Overvolt
Warranty
3 Years
Application
Golf Cart Automatic Motorcycle Bicycle Drone
Weight
0.85kgs
Efficiency
>90%
Payment
30% Deposit in Advance, 70% Before Shipment
Leadtime
10-25days
Description
LiFePO4 Battery Charger
Certifications
FCC cUL CE RoHS CB GS SAA C-Tick Rcm PSE Kc CCC
Shell
Plastic or Metal Case Optiona
Mbtf
30000 Hours
Material
PC Fireproof Material
Safety
Install Fuses on Both Ends of The Input and Output
Transport Package
White Box+Export Carton
Specification
Dimension: 178*80*46mm
Trademark
Fuyuang
Origin
China
HS Code
8501310000
Production Capacity
500000PCS Per Month
Product Description

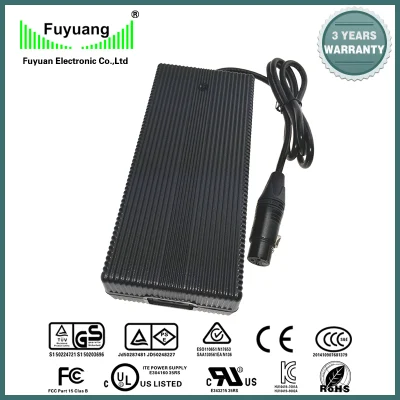

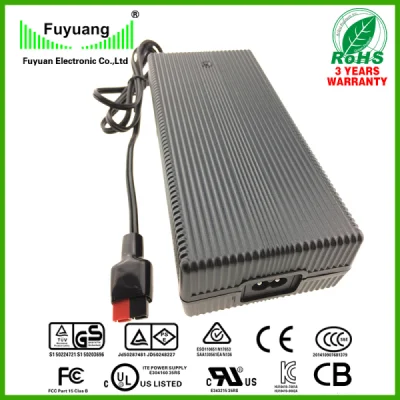

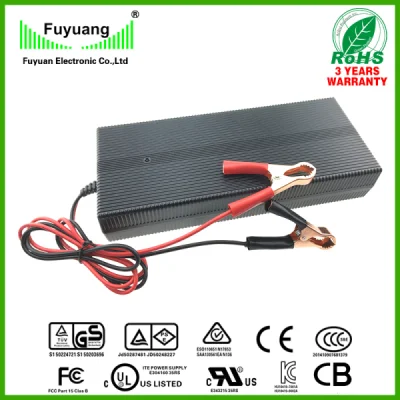

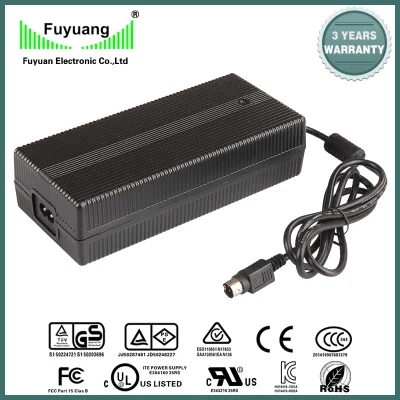

Universal Electric Pallet Truck Golf Cart Drone ac 220v dc 14.6v 10a Lifepo4 Automatic Battery Charger
| Item | Value |
| Usage | Industrial |
| Material | PC Fireproof Material |
| Function | Sweeper, scooter, e-bike, battery pack, wheelchair, treadmill, hoverboard, etc. |
| Brand Name | Fuyuang |
| Port | DC |
| Input voltage and current | 100-240V / 50-60Hz |
| Output voltage and current | 14.6V / 10A |
| Output Power | 200W |
| Supports Solar Energy | No |
| Place of Origin | Guangdong, China |
| Warranty | 3 Years |
| Safe | 30000 hours |
| DC connector | Anderson connector , 5.5*2.1, 5.5*2.5, 3.5*1.35, Canon connector, XLR connector, Inline plug, XT60, TX40/60 etc. --- DC plug customized as per your demands. |
| Protection | Short circuit, over current, and over-voltage. |
| Payment | 30% deposit, the rest 100% T/T before shipping |
The range of li-ion battery chargers we can make
| Battery Qty (cell) | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 |
| Max charging voltage(V) | 4.2 | 8.4 | 12.6 | 16.8 | 21 | 25.2 | 29.4 | 33.6 | 37.8 | 42 | 46.2 | 50.4 | 54.6 | 58.8 |
| Max charging current(A) | ≤10A | ≤8.5A | ≤7.5A | ≤6.5A | ≤5.5A | ≤5A | ≤4.5A | ≤4A | ≤3.6A | |||||
The range of lifepo4 battery charger we can make
| Battery Qty (cell) | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
| Max charging voltage(V) | 3.65 | 7.3 | 10.95 | 14.6 | 18.25 | 21.9 | 25.55 | 29.20 | 32.85 | 36.5 | 40.15 | 43.8 | 47.45 | 51.1 | 54.75 | 58.4 |
| Max charging current(A) | ≤10A | ≤9.5A | ≤8.5A | ≤7.5A | ≤6.5A | ≤6A | ≤5A | ≤4.5A | ≤4A | ≤3.5A | ||||||
The range of Lead-acid battery chargers we can make
| Battery Qty (cell) | 1 | 2 | 3 | 4 |
| Max charging voltage(V) | 14.5 | 29 | 43.5 | 58 |
| Max charging current(A) | ≤10A | ≤7.5A | ≤5A | ≤3.5A |
PACKING DETAILS:
1. Regular package. 2. Individual package. 3. Customized package is accepted.
SHIPPING WAY:
1.By express/courier(Door to Door): FedEx / DHL/ UPS, etc.
2. By Air or by Sea shipment.
3. Customers specifying freight forwarders and negotiable shipping methods.
Q1: What is the warranty of your products?
A: We offer 3 years guarantee for our Battery Chargers, Power Adapters, and LED Power Supplies at the same time if the products were damaged undesigned, we are willing to replace them unconditionally.
A: We can manufacture Lithium Battery Chargers, Lead-acid Battery chargers, LifePo4 Battery chargers, and NiMH Battery Chargers within a range of 5w-500w.
Q3. Do you have some new products coming?
A: We have 30 years of experience in the production of a switch power supply company. At present, the main goal is to high-power switching power supply design and production, that 800W battery chargers and adapters have been applied for certification, can be put into production soon.
Q4: Will each of your products will be tested before shipment? A: Yes, each of our Battery Chargers, Power Adapters, and LED Power Supplies will be strictly tested before shipping. The last four processes of testing are Open Frame Performance Testing--- Plastic Housing Integrated 4-hour Aging Testing-- Drop Testing-- Final Performance Testing---Packaging.
Q5: What certifications do you have? A: Our company have been certified by ISO 9001:2015. ISO 14000:2015, QC 080000:2015; Our Battery Chargers. Power Adapters and LED Power Supplies are passed UL, FCC,CUL,CE,RoHs,CB,TUV/GS, SAA,RCM,PSE.KC,CCC.
Q6: What's the lead time? A: Sample :3-5 days. Mass production: 15-20 days, depending on the order quantity.
Q7: How do you ship the goods? How long does it take?
A: We usually ship by DHL, UPS.FedEx, TNT, etc. It usually takes 4-5 days to arrive. By air, by sea are also acceptable.
Q8: Could you customize the electric bike battery charger for us?
A: Yes, we support both OEM & ODM.
