Basic Info.
Product Description

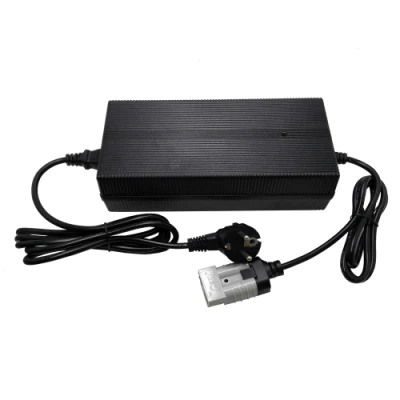

UL CE GS PSE SAA listed 10a 12v 12 volt 10 amp battery charger lifepo4 battery charger 14.6v 10a
Fuyuan Advantage:
1) With global certificates: UL, FCC, cUL, CE, RoHs, CB, GS, Reach, SAA, RCM, PSE, CCC,KC.
2) Universal AC input 100V-240V, 50/60Hz
3) No load power consumption ≤ 0.21W
4) Protections: Short Circuit / Over Load / Over Voltage
5) Regulate output with low ripple noise
6) Meet CEC VI, DoE VI,CoC V5 energy efficiency
7) With LED Indicator Light
8)Safety agency requirements and EMI/EMC certified
9) Fireproof Teijin brand PC plastic case
Parameter:
| Fuyuan 200W Series | ||||||||||||||||
| Output | Voltage | 12.6V | 14.6V | 16.8V | 21V/ 21.9V | 25.2V | 29V | 36V | 42V | 43.8V | 50.4V /51V | 58V | 67.2V | 73V | 84V | 87V |
| Current | 10-12A | 9-12A | 8-12A | 6-10A | 6-8A | 5-7A | 4-5A | 4-5A | 3-4.5A | 3-4A | 3-3.5A | 2-3A | 2-3A | 2-2.5A | 1.5-2.4A | |
| Power max | 150W | 175W | 202W | 210W | 200W | 203W | 198W | 200W | 197W | 204W | 203W | 200W | 210W | 210W | 210W | |
| AC Input: | 100-240V,50/60HZ, 2.5A Max, 250VA |
| AC Inlet: | IEC320-C14, C6, C8, fixed AC power cord |
| AC Power Cord: | 1.2M (or customized length) power cord with US,AU,EU,UK,KR,JP,CHN etc. plug |
| DC Wire: | UL1015/UL2464/2468/1185/SPT-1, 1.2M/1.5M/1.8M or Customized length |
| DC Plug: | Anderson connector , 5.5*2.1,5.5*2.5,3.5*1.35,Canon connector, XLR connector, Inline plug, XT60,TX40/60 etc. --- DC plug customized as per your demands. |
| Protection: | Short Circuit/Over Current / Over Voltage / Reverse Polarity Protection. |
| Housing: | Dimension:178*80*46MM Black TEIJIN brand PC material |
| Packaging: | White box+Export standard Carton Carton Size:48x29x25cm 15PCS/CTN 15.50kg/CTN |
| Certificates: | UL, ETL, CUL, FCC, CE, GS, CB, BS, PSE, KC, RCM, SAA, C-TICK, CCC, ROHS |
| Safety Standard: | UL60950,UL1012,UL1310, IEC61347, IEC60950, IEC61558, IEC60335, EN62233, EN62493 |
| HIPOT testing: | 3000-4200V |
| Operating temperature: | -29ºC~ +45.5ºC |
| Storage temperature: | -40ºC~ +75ºC |
| Dropping Testing: | X-Y-Z direction 100cm,one time with each direction |
| MTBF: | 30000 hours full rated load at 25ºC |
| AQL: | MIL-STD-105E II CRI 0; MAJ 0.25; NIN 1.0 |

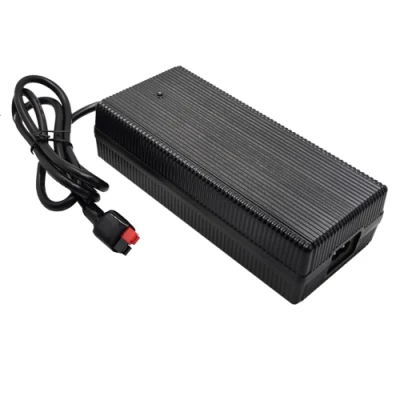

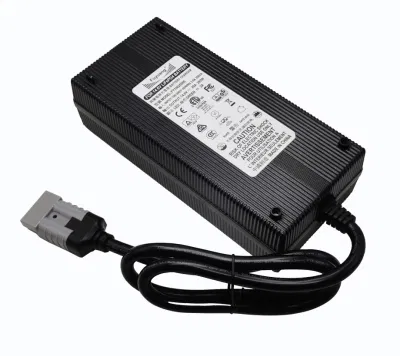

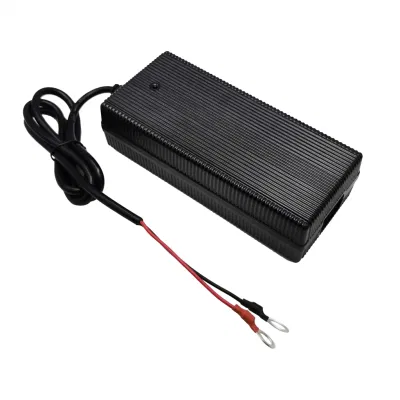

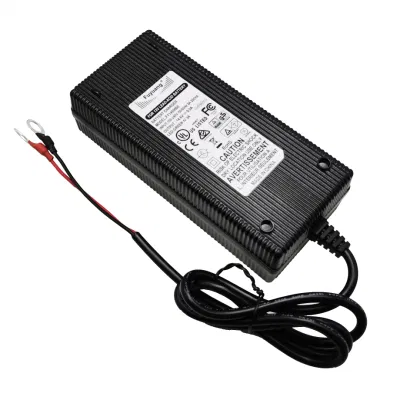

More Photos:
Worldwide plug AC power cords for your selection:
Company Introduction:
Fuyuan Electronic Co.,Ltd, established in 2005, is a professional manufacturer of Battery Charger, Power Adapter and LED Power Supply. We are located in Dongguan of China, with an 6800 square meter self-built factory, over150 staff, company is certified by ISO9001,ISO14001 and QC080000. With over 30 years experience senior engineer team, our company is integrated with product research, development, production as a whole, it only takes 10 days to design and develop a new product.
Up to now, Fuyuan has accumulatively offered samples to over 5000 global customers for over 22,000 times, and kept over 300 stable quality customers worldwide. Our monthly production capacity reaches 500,000 units , annual production value amounts to over 15 million U.S. dollars.
Fuyuang products range from 3 Watt to 1000 watt, 3Volt to 87Volt, 1 Amp to 40 Amp , cover over 2000 models, all products have passed global quality certifications include UL, FCC, cUL, GS, CE, CB, BS,RoHs, Reach, KC, PSE, SAA, RCM, CCC etc. At present, Our 60 watt to 1000 Watt high power products take the leading position in the switching power supply industry, our company is the preferred supplier for Batteries, Electric Vehicles, LED Lights, Medical Equipment, Robots, Audio, Electrical Tools etc. Industries.
Fuyuan Certifications:
*Fuyuan Electronic Co.,Ltd is certified by ISO 9001, ISO 14001 and QC 080000.
* Fuyuang Battery Chargers are approved by UL1012 & IEC-60335: Include UL, FCC, cUL, CE, RoHs, CB, GS, SAA, RCM, PSE, CCC,KC Certificates.
* Fuyuang Power Adapter are approved by UL62368 & IEC 62368: Include UL, FCC, cUL, CE, RoHs, CB, GS, SAA, RCM, PSE, CCC,KC Certificates.
* Fuyuang LED Power Supply are approved by UL1310 & IEC-61347: Include UL, FCC, cUL, CE, RoHs, CB, GS, SAA, RCM, PSE, CCC,KC Certificates.
