Basic Info.
Product Description
| Fuyuan 200W Series | ||||||||||||||||
| Output | Voltage | 12.6V | 14.6V | 16.8V | 21V/ 21.9V | 25.2V | 29V | 36V | 42V | 43.8V | 50.4V /51V | 58V | 67.2V | 73V | 84V | 87V |
| Current | 10-12A | 9-12A | 8-12A | 6-10A | 6-8A | 5-7A | 4-5A | 4-5A | 3-4.5A | 3-4A | 3-3.5A | 2-3A | 2-3A | 2-2.5A | 1.5-2.4A | |
| Power max | 150W | 175W | 202W | 210W | 200W | 203W | 198W | 200W | 197W | 204W | 203W | 200W | 210W | 210W | 210W | |
| AC Input: | 100-240V,50/60HZ, 2.5A Max, 250VA |
| AC Inlet: | IEC320-C14, C6, C8, fixed AC power cord |
| AC Power Cord: | 1.2M (or customized length) power cord with US,AU,EU,UK,KR,JP,CHN etc. plug |
| DC Wire: | UL1015/UL2464/2468/1185/SPT-1, 1.2M/1.5M/1.8M or Customized length |
| DC Plug: | optional, 1M |
| Protection: | Short Circuit/Over Current / Over Voltage / Reverse Polarity Protection. |
| Housing: | Dimension:178*80*46MM Black TEIJIN brand PC material |
| Packaging: | White box+Export standard Carton Carton Size:48x29x25cm 15PCS/CTN 15.50kg/CTN |
| Certificates: | UL, ETL, CUL, FCC, CE, GS, CB, BS, PSE, KC, RCM, SAA, C-TICK, CCC, ROHS |
| Safety Standard: | UL60950,UL1012,UL1310, IEC61347, IEC60950, IEC61558, IEC60335, EN62233, EN62493 |
| HIPOT testing: | 3000-4200V |
| Operating temperature: | -29ºC~ +45.5ºC |
| Storage temperature: | -40ºC~ +75ºC |
| Dropping Testing: | X-Y-Z direction 100cm,one time with each direction |
| MTBF: | 30000 hours full rated load at 25ºC |
| AQL: | MIL-STD-105E II CRI 0; MAJ 0.25; NIN 1.0 |
Advantages :
*All our battery chargers,power adapters and LED drivers come with UL,cUL,CE, GS, PSE, SAA,CCC,KC,CB,ROHS,LVD,EMC,ERP.RCM,C-TICK and FCC approvals.
*Strong Independent R&D Team -- 30 years Switching Power Supply R&D working experience team.
*Meets Level VI standard,DoE VI, CoC V and CEC VI.
*Self-built 8,000 sq.m. self-built garden-like factory, TUV-verified supplier.
*ISO 9001:2015-, ISO 14000:2015- and QC 080000:2015-certified
*Product Range: 60W-450W
*Main Clients: SMP, Stanley, Pentair, CDVI, Hitachi, Onewheel, Hama, YikeBike, TC Electronic, Heter, Tenda and Konka.
Didn't find the specification you want? Send inquiry to supplier.

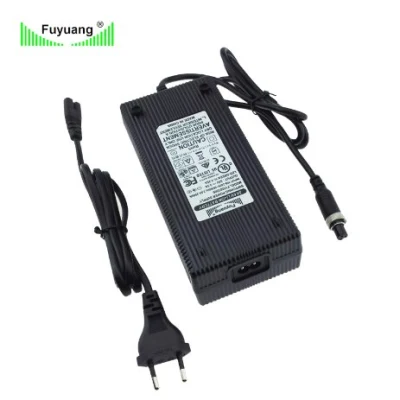

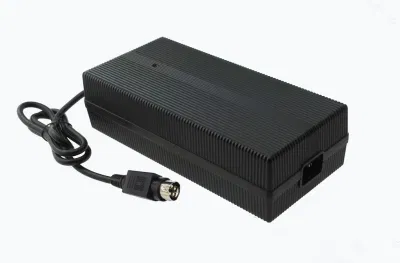

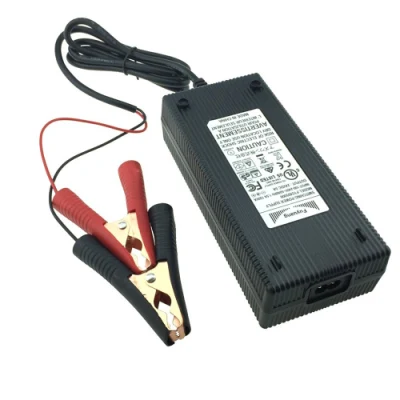

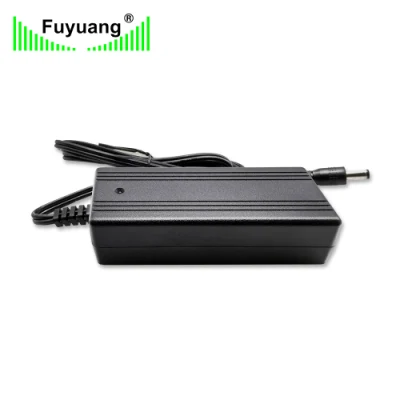

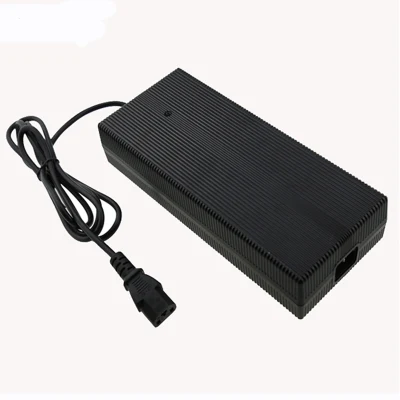

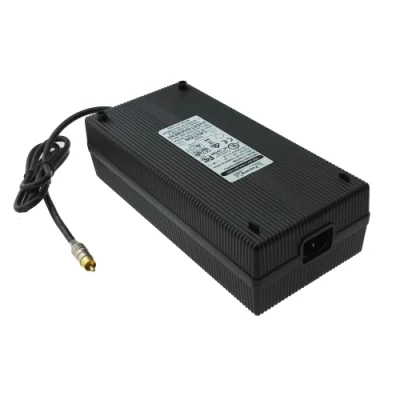

Product Photos & Features:
Click here ask for fast reply, samples, quotation and datasheet.
Company Introduction:
Fuyuang is the Chinese famous switching power supply brand, product line include Battery Charger, Power Adapter and LED Driver. Located in Dongguan of China, the company is integrated with product design, R&D and production as a whole. Established in 2005, Fuyuang has 8,000 sq.m. self-built garden-like factory buildings and 200 staff members. With 30-year senior engineer team personally led by the founder Mr. Huang Shaocheng, the company has mastered core technologies, adhered to the enterprise's concept of "seeking greater perfection and giving top priority to quality", upheld the pioneering and progressive spirits that "we have what others don't have and ours are better than others", built the leading brand in the battery charger and adapter manufacture industry, and enjoyed good reputation at home and abroad.
Fuyuang products range 60W~1000W and cover over 1,000 models, all products have passed quality certification UL,FCC,cUL,CE,RoHs,CB,TUV/GS,SAA,RCM,PSE,KC,CCC ,currently, its 60W~400W large-capacity products take the leading position in the power supply industry. Fuyuang is the preferred supplier for such industries as electric motor car, battery, electric tool, LED lamp, security, acoustic equipment, massaging machine, beauty apparatus and robot.
