Basic Info.
Model NO.
Deep Cycle Solar Lithium Battery
Rated Capacity
100ah
Standard Voltage
12.8V
Usage
RV Golf Cart
Electrolyte
Li-ion
Name
12V 24V 36V 100ah 200ah LiFePO4 Lithium Battery
Keyword1
LiFePO4 Battery
Keyword2
Lithium-Ion Batteries
Keyword3
Lithium Batteries
Cycle Life
>4000 Cycles
Features
Deep Cycle Battery
Charge Temperature
0 ~45 Degree Centigrade
Discharge Temperature
-20 ~60 Degree Centigrade
Plastic Case
ABS
OEM/ODM
Acceptable
Application
Car, UPS, Lighting, Electric Bicycle, Boat
Transport Package
Carton Packaging
Specification
650*485*190mm
Trademark
TYCORUN
Origin
Guangdong China
HS Code
850440200
Production Capacity
30000PCS/Month
Product Description

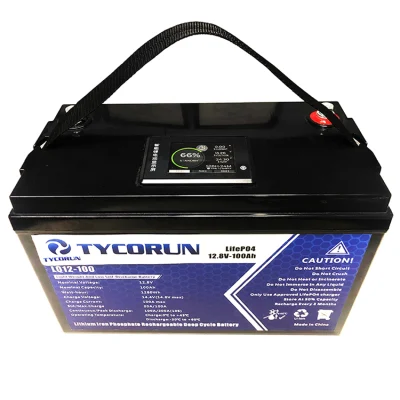

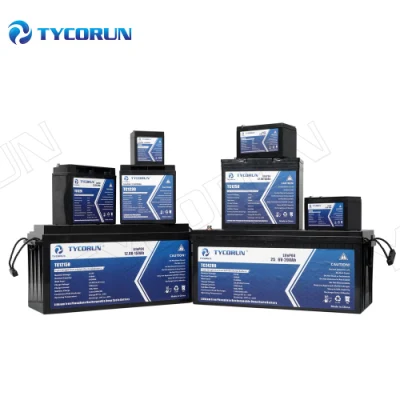

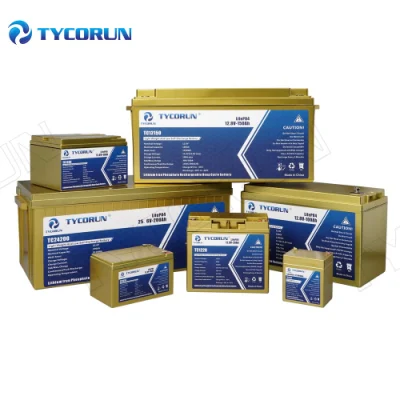

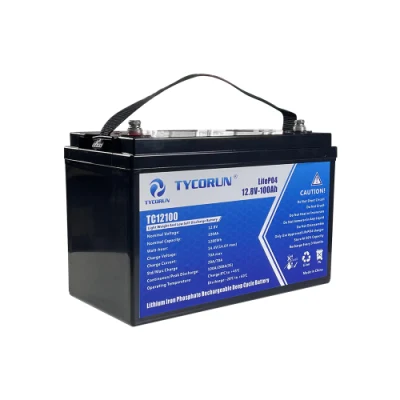

Tycorun Deep Cycle Solar Lithium Battery Pack 12V 24V 36V 7ah 20ah 36ah 50ah 100ah 120ah 150ah 200ah 300ah 400ah LiFePO4 Lithium Ion Battery for RV Golf Cart
| Name | Tycorun Deep Cycle Solar Lithium Battery Pack 12V 24V 36V 7ah 20ah 36ah 50ah 100ah 120ah 150ah 200ah 300ah 400ah LiFePO4 Lithium Ion Battery for RV Golf Cart | ||||
| Function | Same size with lead acid battery ,easy to replace old battery, lifepo4 battery for golf cart ,RV ,solar system | ||||
| Modal | TC1206 | TC1210 | TC1215 | TC1220 | TC1240 |
| Electrical Characteristics | |||||
| Rated voltage | 12.8V | 12.8V | 12.8V | 12.8V | 12.8V |
| Rated capacity | |||||
| Rated power | 76.8Wh | 128Wh | 192Wh | 256Wh | 512Wh |
| Internal Resistance | 80≤m | 80≤m | 80≤m | 50≤m | 60≤m |
| Cycle Life | >2000 Cycles @ 0.2C Charge/Discharge at 100%DOD,End of Life 70% Capacity | ||||
| Months Self Discharge | ≤3.5% per month at 25ºC | ||||
| Standard Charge | |||||
| Charge Voltage | 14.6±0.2V | 14.6±0.2V | 14.6±0.2V | 14.6±0.2V | 14.6±0.2V |
| Charge Mode(CC/CV) | CC/CV | CC/CV | CC/CV | CC/CV | CC/CV |
| Charging electricity | 1A | 2A | 3A | 4A | 10A |
| Max charging electricity | 5A | 10A | 15A | 30A | 30A |
| Standard Discharge | |||||
| Discharging electricity | 1A | 2A | 3A | 4A | 20A |
| Max. Continuous electricity | 10A | 20A | 20A | 30A | 30A |
| Max.Pulse Current | 30A(<10s)<> | 50A(<10s)<> | 50A(<3s)<> | 100A(<3s)<> | 110A(<3s)<> |
| Discharge Cut-off Voltage | 10.8V | 10.8V | 10.8V | 10.8V | 10.8V |
| Environmental | |||||
| Charge Temperature | 0ºC~45ºC | ||||
| Discharge Temperature | -20ºC~60ºC | ||||
| Storage Temperature | 0ºC~45ºC | ||||
| Water Dust Resistance | IP55 | ||||
| Mechanical | |||||
| Plastic Case | ABS | ||||
| Dimension(L*W*H*TH) | 90x70x101mm | 151x65x94mm | 151x98x95mm | 181x77x167mm | 198x166x170mm |
| Weight | 0.7Kg | 1.3Kg | 2.0Kg | 2.6Kg | 5Kg |
| Terminal | T2 | T2 | T2 | M5 | M6 or M8 |
Main Features: 1.Automotive Grade Battery
Tycorun LiFePO4 battery use Automotive Grade LiFePO4 Cells with higher energy density, more stable performance and greater power. Highest-level safety based on UN38.3 Testing Certificate for the cell inside. Perfect for solar home, RV, campers, solar, motor homes, off-grid applications.
2.100% Safe
100% safe, nontoxic, renewable energy. LiFepo4 battery will not burn when overcharged, over discharged, over current or short circuit, and can withstand high temperatures without decomposition. Smart BMS inside can handle cell balancing, low & high voltage cutoff, short circuit protection and temperature protection. Without memory effect, no matter what state the battery is, it can be used as soon as it is charged.
3.Lightweight and Widely Use
Our lithium battery weighs only 1/3 weight of the same capacity lead acid batteries! With no acid in the battery, you're able to safely mount it in any position. Perfect choice for variety types of backup power application, such as UPS, Fishfinder, Ride on toys, RV etc. Allow to be extended up to 4 in series and 4 in parallel (Max 4S4P) to get more capacity (Max 800Ah) and higher voltage (12V, 24V, 36V, 48V).
4.Efficient & Convenient
Tycorun LiFePO4 Battery can be 100% discharged while lead acid battery can only 40%-50% discharged. Charge the same time while use 2 times longer. Also, Tycorun battery has constant power while lead acid battery has steady power drop when use it. Tycorun battery more reliable and powerful.
5.Best Service
Providing 4000+ cycles while lead acid battery last 300-500 cycles. 5 year battery warranty & lifetime technical support. If you have any questions, please feel free to contact us.
6.Support Oem
Tycorun Energy has 14 years of experience in lithium battery production!
We can customize 12V/24V/36v/48v/60V/72v 20AH, 50AH,100h, 120ah, 150ah,200ah, 300ah, 400ah, 800ah lithium batteries. We can also customize any size and function you need.
