Basic Info.
Model NO.
HBT2010-34
Description
Hybrid Car Battery Analyzer, Hev Battery Charger
Applied Battery
Li-ion Batteries, Ni-MH Batteries, Ni-CD Batteries
Max. Voltage Output
20 V
Min. Voltage Output
2 V
Max. Charging Current
10 a
Max. Discharge Current
10 a
Channel No.
34
Operation Language
English
Input Voltage
Three-Phase 380V
Quality Management System
ISO9001
Approval
CE
Advantage 1
15-Year Experience
Advantage 2
Strong R&D Team
Advantage 3
Advanced Production Technology
Advantage 4
Perfect After-Sale Guarantee
Transport Package
Seaworthy Packing
Specification
70*60*85 cm
Trademark
DK
Origin
China
HS Code
9030409000
Production Capacity
500 Pieces/Year
Product Description
Descriptions:

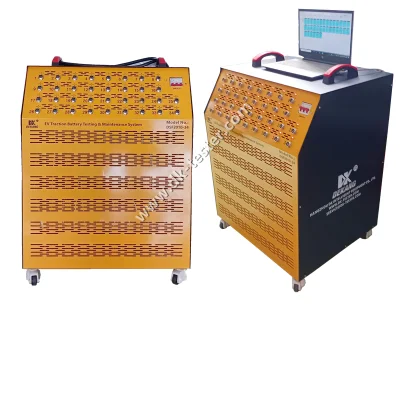

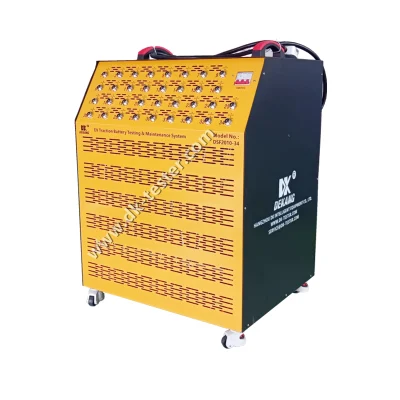

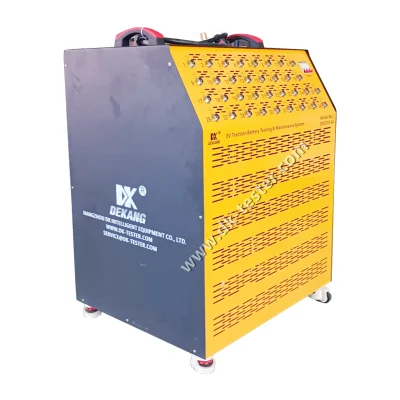

Hybrid Vehicle NiMh Battery Testing and Maintenance System HBT2010-34 can be used for the capacity test, charge characteristic test, capacity grading and matching, balance maintenance, analysis & judgment of individual modules in the entire battery pack (Lithium, Nickel-Metal Hydride, and Nickel-Chromium). Isolation testing technology can determine the location of the defective modules without disassembling the battery pack, then replacing it to repair the battery. It can balance charge and discharge the unbalanced battery pack to balance the battery and restore the battery pack to normal balance.
it is widely used in the detection and repair of traction batteries in electric vehicle maintenance and service industries, especially for the detection and maintenance of hybrid batteries composed of 4.8V/7.2V/9.6V/14.4V battery modules. Such as Honda, Toyota, Lexus, Nissan, Ford, Porsche and other hybrid models.
Applicable Batteries:
Lead-acid/Lithium/Ni-MH/Ni-Cd Batteries, etc.
Software Interface
About us:
Founded in 2005, DEKANG is a high-tech enterprise involved in researching & developing, producing, and sales of Storage Battery Measuring & Maintenance Equipment, EV Charging Station, Shared Power Swapping Station, Shared Mobility Solution. We provide the clients with the complete solution of storage battery service.
Products Category:
Battery Charging & Discharging Tester
Battery Testing and Recovery Equipment
Lithium Battery Intelligent Charger
E-Bike/E-scooter Charging Station
Shared Battery Charging & Swapping System
Intelligent Lithium Batteries
Battery-swapping E-bike/E-scooter and so on.
Why choose us?
Delivery
Sample order dispatched by express via DHL, FEDEX, TNT, UPS or any other express services you prefer to, also we can coordinate to send it to other agreed address in China for loading with your convenience
Normal order delivered by sea or air as per your instructions.
Equipment operation training & guidance
In addition to providing user manual and operation videos, after you purchase the equipment, we will also provide operation training and guidance support through telephone, email, video connection, remote connection and other ways, so as to ensure that you are proficient in the operation and use of the equipment. Our equipment is intelligent in design, rich in functions, and easy to operate. Make it easy for you to operate.
Warranty:
12-month warranty, lifelong after-sale service, and free technology service.
After-sales service
Very important: DEKANG exporting division is the only official exporting department of DEKANG. Anyone who obtains our equipment from a third party or through other channels may have the risk of not being able to obtain perfect after-sales & technology service. In order to enjoy better service and technology support, overseas users please purchase directly from the official exporting department of DEKANG.
Free replacement parts will be provided during the warranty period, and we will dispatch the replacement parts to the user by DHL, UPS, TNT, or FEDEX at our account and guide the user to replace them via phone, email, or video. The modular design of our equipment makes it easy to install and replace
After the warranty period, the cost of replacement parts will be charged. If you pay for the replacement parts, you can enjoy a free warranty within half a year from the maintenance date for the same problem.
Lifelong free technology service provided by us, the users can advise malfunction and inquire the maintenance technology through the telephone, fax, email, and social media, etc.
Paid service
The conditions below not included in the free maintenance range, the company provide the paid service, kindly note:
Hybrid Vehicle NiMh Battery Testing and Maintenance System HBT2010-34 can be used for the capacity test, charge characteristic test, capacity grading and matching, balance maintenance, analysis & judgment of individual modules in the entire battery pack (Lithium, Nickel-Metal Hydride, and Nickel-Chromium). Isolation testing technology can determine the location of the defective modules without disassembling the battery pack, then replacing it to repair the battery. It can balance charge and discharge the unbalanced battery pack to balance the battery and restore the battery pack to normal balance.
it is widely used in the detection and repair of traction batteries in electric vehicle maintenance and service industries, especially for the detection and maintenance of hybrid batteries composed of 4.8V/7.2V/9.6V/14.4V battery modules. Such as Honda, Toyota, Lexus, Nissan, Ford, Porsche and other hybrid models.
Applicable Batteries:
Lead-acid/Lithium/Ni-MH/Ni-Cd Batteries, etc.
Basic Function:
1. Charge
2. Capacity test
3. Automatic cycle charge-discharge
4. Balance charge-discharge maintenance
5. Cells grading and matching
6. Internal resistance test
7. Test data analysis and comparison
8. Battery Temperature Monitoring
1. Charge
2. Capacity test
3. Automatic cycle charge-discharge
4. Balance charge-discharge maintenance
5. Cells grading and matching
6. Internal resistance test
7. Test data analysis and comparison
8. Battery Temperature Monitoring
Features:
• Each channel is equipped with a dedicated processor to ensure a perfect calculation level of capacity, timing, voltage and current control.

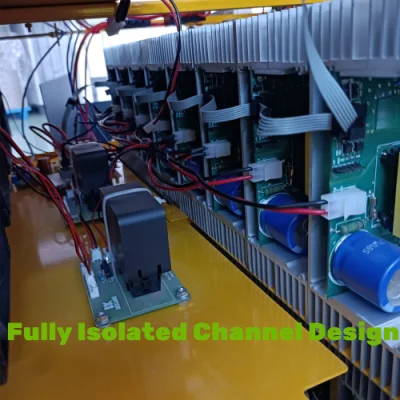

• All channel is under isolated test, it can directly test the cells of the battery pack.
• 28 isolated channels can perform one-time testing and maintenance of battery pack within 28 modules, with precision measurement, high efficiency & fast speed.
• Independent heat source channel, temperature control and speed regulation fan.
• The LED light indicates the running status, testing status, matching status, alarm status.
• Fully compatible with the batteries of Lead-acid, Li-ion, Polymer, Ni-MH, NiCd, and so on.
• Online test between computer and device, the setting and result is particular and plentiful,
• With the work steps of Constant Current Discharge, Constant Power Discharge, Constant Resistance Discharge, Constant Current Charge, Constant Voltage Charge, Constant Current & Voltage Charge, Internal Resistance Test and Idle, etc.
• Work step automatically switching.
• The charge and discharge parameters can be customized.
• The matching can be processed, the test results can be matched according to the customized standard, and it can mark and display on the device.
• The recording function of the test process.
• With 3 Y-axis (voltage, current, capacity) and a time axis curve drawing ability, and data report function.
• The color of the test status bar is customized, which makes it easy to check the test status of all devices when the number of tests is large.
• Isolation channel battery temperature monitoring system monitors the temperature of each battery in real time and controls the charge and discharge of each battery to ensure safe charging without human attendance.
(Remarks: Different number of channels can be customized to suit different battery packs)
Illustrations:
Battery Connection
Packing Information:
Produce Size: 70*60*85 cm (L*W*H)
Pcs/Case: 1 pc/case
Package Size: 80*75*120 cm (L*W*H)
G.W.: 145.00 kgs
N.W.: 115.00 kgs
• Each channel is equipped with a dedicated processor to ensure a perfect calculation level of capacity, timing, voltage and current control.
• All channel is under isolated test, it can directly test the cells of the battery pack.
• 28 isolated channels can perform one-time testing and maintenance of battery pack within 28 modules, with precision measurement, high efficiency & fast speed.
• Independent heat source channel, temperature control and speed regulation fan.
• The LED light indicates the running status, testing status, matching status, alarm status.
• Fully compatible with the batteries of Lead-acid, Li-ion, Polymer, Ni-MH, NiCd, and so on.
• Online test between computer and device, the setting and result is particular and plentiful,
• With the work steps of Constant Current Discharge, Constant Power Discharge, Constant Resistance Discharge, Constant Current Charge, Constant Voltage Charge, Constant Current & Voltage Charge, Internal Resistance Test and Idle, etc.
• Work step automatically switching.
• The charge and discharge parameters can be customized.
• The matching can be processed, the test results can be matched according to the customized standard, and it can mark and display on the device.
• The recording function of the test process.
• With 3 Y-axis (voltage, current, capacity) and a time axis curve drawing ability, and data report function.
• The color of the test status bar is customized, which makes it easy to check the test status of all devices when the number of tests is large.
• Isolation channel battery temperature monitoring system monitors the temperature of each battery in real time and controls the charge and discharge of each battery to ensure safe charging without human attendance.
| Model No.: HBT2010-34 | ||
| Input Voltage: | 3-Phase 380V | |
| Input Power: | No-load 280W, full load 7000W | |
| Voltage | Charge Constant Voltage Range: | 2 V - 20 V adjustable |
| Discharge Cut-off Voltage Range: | 2 V - 20 V adjustable | |
| Tolerance: | ± 0.02 V | |
| Current | Charge Current: | 0.05 A - 10 A Adjustable |
| Discharge Current: | 0.05 A - 10 A Adjustable | |
| Charge Cut-off Current: | 0.05A - 5 A | |
| Tolerance: | ± 0.02 A | |
| Power | Max. Output Power (Single Channel) | 200 W |
| Data Recording | Data Recording Conditions | Time interval |
| Voltage interval | ||
| Current interval | ||
| Charge | Charge Modes: | Constant current charge |
| Constant voltage charge | ||
| Constant current & voltage charge | ||
| Charge Cut-off Conditions: | Voltage, current, time, capacity, -△V, temperature | |
| Discharge | Discharge Modes: | Constant current discharge |
| Constant power discharge | ||
| Constant resistance discharge | ||
| Discharge Cut-off Conditions: | Voltage, current, time, capacity | |
| Cycle | Cycle Index: | 1-5000times |
| Protection | Power-down protection | |
| Reverse connection | ||
| Over-temperature protection | ||
| Over-voltage protection | ||
| Short-circuit protection | ||
| IP Grade | IP20 | |
| Channel Control Mode | Independent control | |
| High Voltage Insulation Between Channels | AC1000V/2min Normal | |
| Voltage & Current Test Sampling | Four-core wires connection | |
| Noise | < 76 dB | |
| Host Computer Communication Method | based on TCP/IP protocol | |
| Test Report Output Method | Excel | |
| Server Disk Configuration | >100GB | |
| Server Operation System | Windows XP, Windows 7/8/10 | |
| Communication Port | LAN | |
| Equipment Work Ambient Conditions | ||
| Operation Ambient Temperature | 0 ºC - 40 ºC | |
| Storage Temperature | -10 ºC - 50 ºC | |
| Operation Ambient Humidity | ≤ 70 % RH (No condensation) | |
| Storage Ambient Humidity | ≤ 80 % RH (No condensation) | |
(Remarks: Different number of channels can be customized to suit different battery packs)
Illustrations:
Battery Connection
Connect the positive and negative poles of the battery with the test cables.
Packing:
Packing:
Packing Information:
Produce Size: 70*60*85 cm (L*W*H)
Pcs/Case: 1 pc/case
Package Size: 80*75*120 cm (L*W*H)
G.W.: 145.00 kgs
N.W.: 115.00 kgs
