Tesla to Type1 Evse Use to Charge SAE J1772 Electric Vehicle Charger on Tesla to Type 1 EV Chargers for Car Charging AC 40A 250V

Get efficient car charging with our Tesla to Type 1 EVSE for SAE J1772 electric vehicle chargers. Our factory provides AC 40A 250V solutions for your EV needs.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Company Profile
Overview

Basic Info.

Model NO.
YJ-IEC06
Operating Temperature
-25ºC~50ºC
Withstand Voltage
2000V

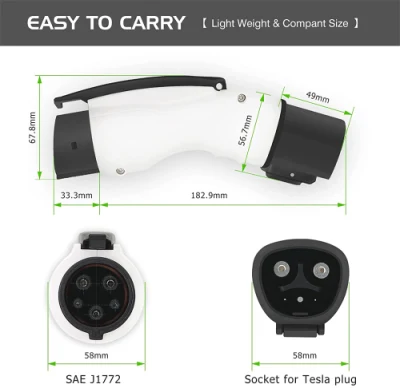

Size
as Picture Shown
Material

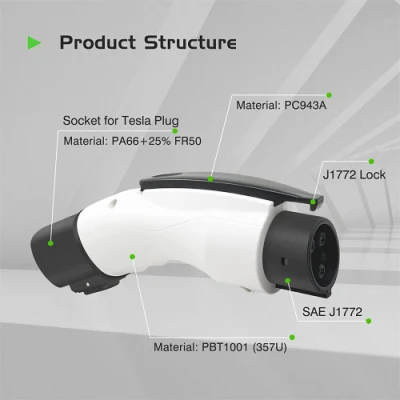

Thermoplastic, Flame Retardant
Pin Material
Copper Alloy, Silver + Thermoplastic on The Top
Color
Black
Protection Grade
IP54
Transport Package
Colorful Box
Specification
CE, RoHS, CCC, SGS
Trademark
MY
Origin
China
HS Code
8536500000
Production Capacity
5000PCS/Month

Product Description

Tesla to J1772 Adapter, Max 40Amp & 250V - Compatible with Tesla High Powered Connector, Destination Charger, and Mobile Connector Only, for J1772 EVs

The adapter meets the SAE J1772-2010 US standard and the related standards of Tesla charging dock;
Working principle: When the adapter socket end is inserted into the Tesla charging pile plug, it can realize the interchange charging between the US standard AC charging plug and the Tesla charging pile;
Rated current: 16A/ 32A/ 40A;
Rated voltage: 250V AC;
Mechanical life: no- load plug in/ pull out> 10000 times;
Coupled insertion force:45N
Terminal temperature rise: <50K;
Flame retardant grade: UL94-0;
Water-proof class: IP44 in working condition.


Packing included:

1 * Socket Charging Adapter

Tesla to J1772 Adapter, Max 40Amp & 250V - Compatible with Tesla High Powered Connector, Destination Charger, and Mobile Connector Only, for J1772 EVs

Tesla to Type1 Evse Use to Charge SAE J1772 Electric Vehicle Charger on Tesla to Type 1 EV Chargers for Car Charging AC 40A 250VTesla to Type1 Evse Use to Charge SAE J1772 Electric Vehicle Charger on Tesla to Type 1 EV Chargers for Car Charging AC 40A 250VTesla to Type1 Evse Use to Charge SAE J1772 Electric Vehicle Charger on Tesla to Type 1 EV Chargers for Car Charging AC 40A 250VTesla to Type1 Evse Use to Charge SAE J1772 Electric Vehicle Charger on Tesla to Type 1 EV Chargers for Car Charging AC 40A 250VTesla to Type1 Evse Use to Charge SAE J1772 Electric Vehicle Charger on Tesla to Type 1 EV Chargers for Car Charging AC 40A 250VTesla to J1772 Adapter, Max 40Amp & 250V - Compatible with Tesla High Powered Connector, Destination Charger, and Mobile Connector Only, for J1772 EVsTesla to Type1 Evse Use to Charge SAE J1772 Electric Vehicle Charger on Tesla to Type 1 EV Chargers for Car Charging AC 40A 250V

Tesla to Type1 Evse Use to Charge SAE J1772 Electric Vehicle Charger on Tesla to Type 1 EV Chargers for Car Charging AC 40A 250V

Tesla to Type1 Evse Use to Charge SAE J1772 Electric Vehicle Charger on Tesla to Type 1 EV Chargers for Car Charging AC 40A 250V

Tesla to Type1 Evse Use to Charge SAE J1772 Electric Vehicle Charger on Tesla to Type 1 EV Chargers for Car Charging AC 40A 250V
