Product Description
| Model | WallArk-2500 | WallArk-5000 | WallArk-7500 | WallArk-10K |
| Capacity Energy | 2.56kWh | 5.12kWh | 7.68kWh | 10.24kWh |
| Capacity Ah | 50Ah | 100Ah | 150Ah | 200Ah |
| Suggested SOC | 10-100% | |||
| Usable Capacity | 2.3kWh | 4.6kWh | 6.9kWh | 9.2kWh |
| Nominal Voltage | 48/51.2V | |||
| Operation Voltage | 42V - 54V (48V) or 44.8V - 57.6V (51.2V) | |||
| Maximum Charging Current | 35A | 70A | 70A | 150A |
| Maximum Discharging Current | 50A | 100A | 100A | 200A |
| BMS | Robust Multi Point Monitoring BMS | |||
| Scalable(Parallel Function) | Yes, Maximum 15 Packs | |||
| Life Cycling (0.5C 25ºC) | 6000 Cycles @ 0.5C | |||
| Warranty | 10 Years | |||
| Operation Temperature | Chrage : 0 ~ 45ºC, Dischrage : -20 ~ 45ºC | |||
| Storage Temperature | -20 ~ 45ºC | |||
| Net Weight | 29kG | 52kG | 66kG | 92kG |
| Dimensions (H x W x D) | 350x520x165 mm | 480x520x165mm | 560x537x174mm | 866x537x174mm |
| Certifications | MSDS, UN38.3, RoHS, IEC62619,CE | |||
| IP Grade | IP54 | |||
| Communication | RS232, RS485, CAN (Compitable with most brand inverters in market) | |||
| Type | Single Phase | 3 Phase | Split Phase |
| Output Power | 3-16KW | 5-30KW | 5-8KW |
| Output Voltage | 220/230/240V | 220/380V, 230/400 | 120/240V |
| Battery Type | Lead Acid or Lithium Ion 40-60V | ||

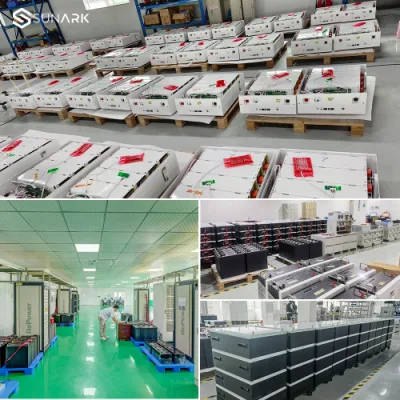

SunArk Power is a professional battery manufacturer since 2002, SunArk manufactures and sells environmentally friendly Sealed Lead Acid (SLA) and Lithium batteries. SunArk introduces and develops advanced technology, and adopts the world's most advanced production equipment and testing measures to ensure long product life, high energy density, and environmental protection features such as cadmium-free, leading the domestic counterparts. The company is a high-tech enterprise headquartered in Shushan District, Hefei, China, and has three manufacturing bases in Jiangsu, Hengyang(China) and Vietnam. It has approximately 2,000 employees, including two professors who have experience over 40 years in batteries research, and over 50 research engineers. SunArk also has invested strongly in domestic and foreign institutions and scientific research institutions to overcome difficulties in battery technology. The performance of the batteries independently researched and developed by SunArk has met and exceeded international standards, and a variety of technologies have been granted national and international patents.
