Basic Info.
Model NO.
PEVC2201
Output Current
16-32AMP
Working Frequency
45-65Hz
AC Supply System
Single-Phase/Three-Phase
Waterproof Rating
IP55/Ik8
Output Connector
Type 2 /J1772
Efficiency
≥95%(Load:50~100%)
After-sales Service
2 Years Warranty
Type
Fast EV Charging Station
Certification
CCC, CE, ISO, TUV, RoHS
Warranty
24 Months
Transport Package
Carton Package
Specification
2708365*135
Trademark
SoonPlus
Origin
China
Production Capacity
500pieces Per Week
Product Description
| Specification: |

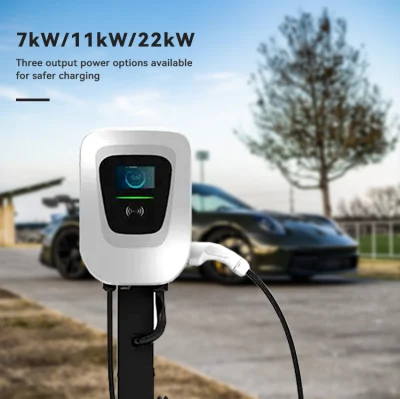

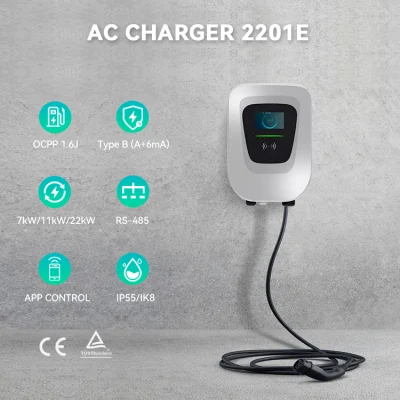

| 7kw/11kw/22kw | Compliant with OCPP 1.6J |
| Built in RCD AC 30mA+6mA DC | Support Bluethooth+Wifi, 4G optional |

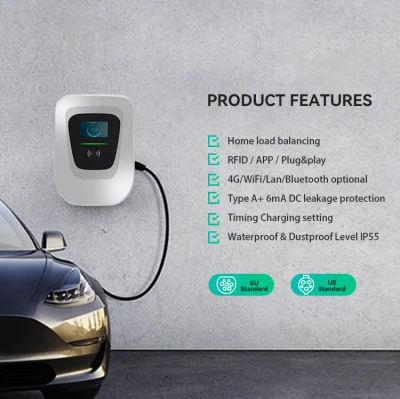

| Smart App control via Bluetooth | DLB loading balance/ Solar matching system |
| Rated Voltage | 230VAC±10% |
| Rated Current | 16A or 32A |
| Grid Frequency | 50Hz or 60Hz |
| Rated Power | 3.7kW or 7.4kW |
| Charge Connector | Type 2 Plug(Type 1 Plug Optional) |
| Maximum Current | 16A or 32A |
| Cable Length | 5m or Optional |
| LED Indicator | Green/Blue/Red |
| LCD Display | 4.3" Touch Color Screen |
| RFID Reader | ISO/IEC 14443 RFID Card Reader |
| Start Mode | Plug&charge/RFID Card/APP |
| Backend | Bluetooth / Wi-Fi /Cellular(Optional) / Ethernet |
| Charging protocol | OCPP-1.6J |
| Energy Metering | Embedded Meter Circuit Component With 1% Accuracy |
| Residual Current Device | Type A+DC 6mA |
| Protection | IP55 / IK10 |
| Electrical Protection | Over/Under Voltage Protection,Over Current Protection, Short CircuitProtection, Over/Under Temperature Protection,Lightning Protection,Ground Protection |
| Certifification | CE,TUV |
| Certifification and Conformity | IEC61851-1/-21,IEC62196-1/-2,SAE J1772 |

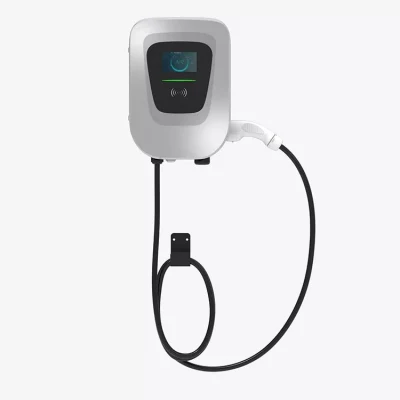

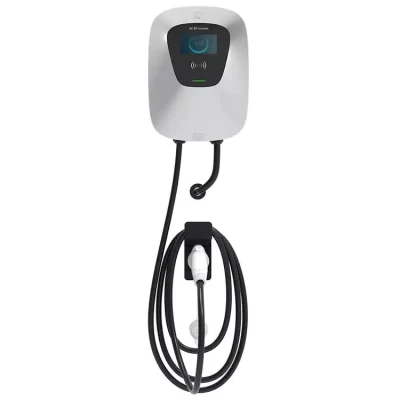

| Mounting | Wall-mount/Pole-mount |
| Storage Temperature | -40ºC - +85ºC |
| Operating Temperature | -30ºC - +50ºC |
| Max.Operating Humidity | 95%,Non-condensing |
| Max. Operating Altitude | 2000m |
| Product Dimension | 300mm*154mm*420mm(W*D*H) |
| Package Dimension | 390mm*280mm*490mm(W*D*H) |
| Weight | 5kg(Net ) / 6kg(Gross) |
| Factory Brife Introduction Shenzhen E-Zonda Energy Co., Ltd was established in 2015. We provide safe, innovative, and smart complete AC charging products for electric vehicles, including EV Charging Station,Smart EV wallbox, Portable EV Charger, EV Charging Cable, extension Cable, EV Charger Adaptor and all kinds of EV plugs, sockets, and connectors. All our products come with CE, TUV certification. The products are sold throughout the country Inside and outside with good reputation. We can provide customers with complete charging solutions and technical support with years experiences in Ev charging industry. With professional R & D team and experiences on product customization, OEM and ODM services are available for our customers. |  |
| We would like to show our honesty, top good quality, competitive prices, and superior efficiency to start business with all of you. Our goal is providing a complete solution including product design, research and developemtn,and service for our customers to achieve a win-win situation for us as well as our clients. Welcome contact from customers all over the world. | |
| Q What is your sample policy? A We can supply the sample within 7 days, but customer need to pay the sample cost and the courier cost. Q Can I put my brand logo on charger? A Yes, we support OEM and ODM production. We can put your trademark on the ev charger box and plug with MOQ quantity of 50pcs. Q Does your products have quality certification? How long is the warranty time? A We have a very strict quality controlling system which promises the goods we produced are always of the best quality. Our EV charging products passes with CE&TUV certifications. All products FREE warranty within 24 month. Q How can we guarantee quality?#0a4cad A We always conduct a pre-production sample before mass production and 100% Inspection before shipment; Q Can the EV charger charge all EVs on the road? A Yes, all models of our EV Charger work with all Electric Vehicles. Tesla vehicles need the use of a J1772 to Tesla adapter to work with our EV chargers. Q How about your Lead time? A Generally, it will takes 3 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Q What about the delivery? A We can delivery by express,by Air Cargo and by sea Q Does the EV Charger need any APPs or internet? A Some models are set be to standalone type which use RFID card to start or plug and play mode . Some models are Wi-Fi connected and can work with App and any OCPP 1.6j application. Details please feel free to ask. Q What is an OCPP application? A The Open Charge Point Protocol (OCPP) is an open-source communication protocol for networked electric vehicle chargers. The Smart charger is able to work with any charger management software that uses these protocols to direct Smart Charging. |
