Basic Info.
Condition
New
Certification
ISO, CE
Material
Polycrystalline Silicon
Size
350*300mm
Thickness
30mm
Rated Power
10W
Voc
20.6V
Vop
17.3V
Short Circuit Current (Isc)
0.69A
Working Current (Iop)
0.58A
Output Tolerance
3%
Temperate Coefficient of Isc
0.01%
Temperate Coefficient of Voc
- (0.38 +/-0.01)%
Temperate Coefficient of Power Voc
-0.47%
Temperature Range
-40- +80 Temperrature
Transport Package
2PCS/Carton
Specification
FSP-010W
Trademark
FLAGSUN
Origin
Jiangsu China
HS Code
8541402000
Production Capacity
100MW/Year

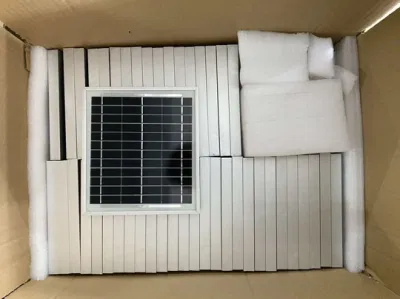

Packaging & Delivery
Package Size
35.00cm * 30.00cm * 2.30cm
Package Gross Weight
0.750kg
Product Description
Type | FSP010W |
| Type of Solar Cell | Poly-crystalline, 156mm×156mm |
| Number of Cells | 36 pcs ( 156×12) |
| Size of module | 350×300×23mm ( 156×156mm cell) |
| Module, Weight | 0.75 kg |
| Junction box/Connector | TOP,IP65, 1000V DC, TUV certificated |
| Cables, Length (+/-) | Customizable |
| Front Cover Glass | Tempered glass |
| Front Cover Glass Thickness | 3.2 mm |
| Frame | Anodized Aluminium |
| Maximum Power Pm(W) | 10 W |
| Power Tolerance | + 3% |
| Maximum Power Voltage(Vmp) | 17.8 V |
| Maximum Power Current (Imp) | 0.47 A |
| Open Circuit Voltage(Voc) | 21.6 V |
| Short Circuit Current(Isc) | 0.62 A |
| Module Efficiency | 14.80% |
| Maximum System Voltage | 1000 V |
| Operating temperature | -40 Degree to 85 Degree |
| Heavy mechanical load | 5400Pa (meet IEC61215) |

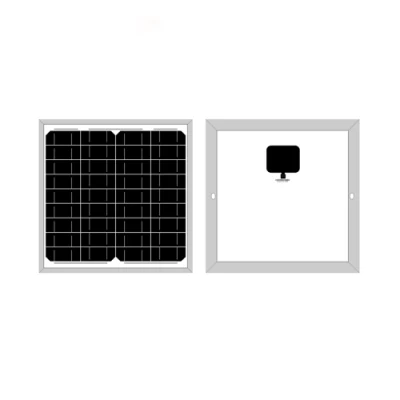

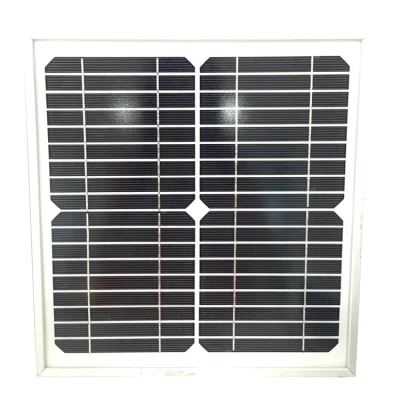

10W mono Solar panel

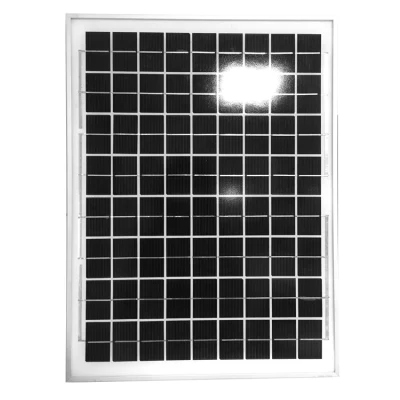

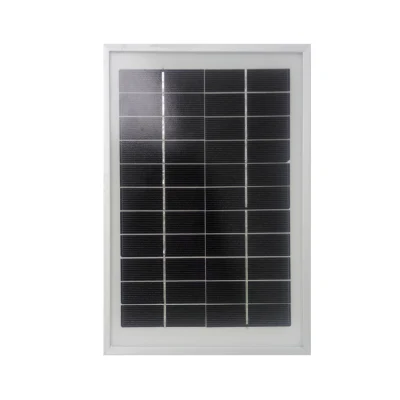

High efficiency poly solar cell with positive tolerance only
International quality management system with 100% panel power and EL test before shipment
Fire test, Ammonia corrosion test, Salt mist corrosion resistance approved
Nearest shipment port: Ningbo or Shanghai
Temperature Coefficients
Power temperature coefficient (%/ºC): - 0.45 %/ºC
Current temperature coefficient(%/ºC): 0.065±0.015 %/ºC
Voltage temperature coefficient(%/ºC): - 0.35 %/ºC
NOCT-Normal Operating Cell Temperature: 45±2ºC
Module Warranty
25 - year limited warranty of 80% power output;
10 - year limited warranty of 90% power output;
5 - year limited warranty of materials and workmanship
