Basic Info.
Model NO.
MP-30
Trademark
One Inverter
Origin
China
Production Capacity
50000PCS/Month
Product Description

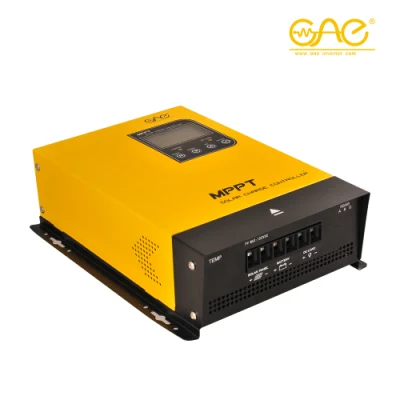

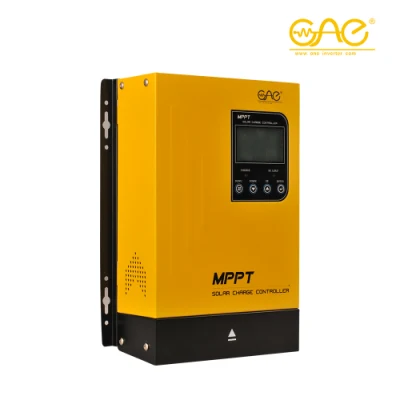

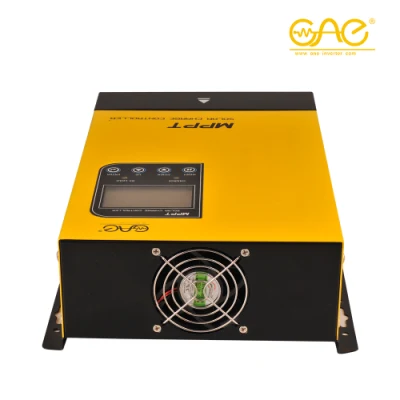

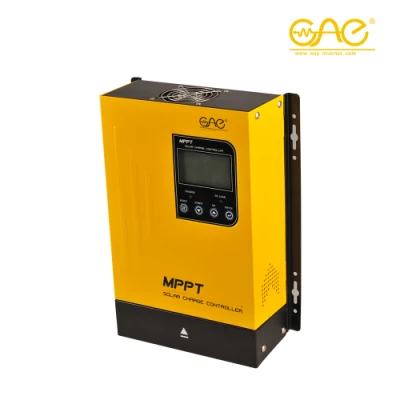

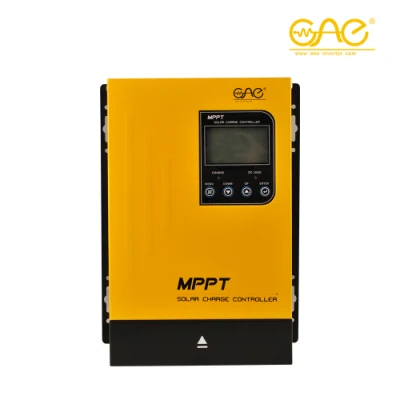

New Design 12V/24V/36V/48V/60A MPPT Solar Charge Controller for Solar Inverter
Features
1. The efficiency is up to 99%
2. The intelligent DSP control chip
3. The Intelligent LCD display with Multiple functions
4. Switching power is supplied by the independent system
5. True over temperature protection
6. New and original electronic components
7. Internal circuit lines and signal lines are based on plug-pull blocks, not welding
Technical Specification
product specifications are subject to change without notice.
About Us:
Foshan Top One Power Technology Co., Ltd was established in 2003 which is a professional Hi-tech enterprise in the development and manufacturing of Uninterruptable Power Supply( UPS), Power Inverter, Solar Inverter, Hybrid Inverter, Solar Charge Controller. We are one of supplier authorized by the Chinese Government. One solar with excellent R&D team formed by over 10 engineers, and 5,000 spare meter in-house manufacturing facilities in Foshan Guangdong China. Our main market is Africa, the Middle East, Kenya, South Africa, Nigeria, Pakistan etc. Most inverters from Top One Power applied with CE & FCC certification. Production Process:
FAQ:
Q1: Does your company also provide other solar products except for Pure Sine Wave Inverter:
A1: Yes, we also provide other solar products, like MPPT Solar Controller, solar panels, off-grid solar inverter, batteries, portable solar system, solar charger and other accessories related to the solar power system.
Q2: How to choose the right inverter:
A2: Tell us your demand, then our sales will recommend a suitable inverter for you.
Q3: How is the delivery time?
A3: 3 days for sample; 7-15 days for bulk order.
Q4: What is the warranty for the inverter?
A4: 2 years warranty.
Q5: How to solve the technical problem:
A5: 24 hrs after-sales service consultancy just for you and to make your problem solved easily.
Please check our the other products:
Please check the other products in our store:
Features
1. The efficiency is up to 99%
2. The intelligent DSP control chip
3. The Intelligent LCD display with Multiple functions
4. Switching power is supplied by the independent system
5. True over temperature protection
6. New and original electronic components
7. Internal circuit lines and signal lines are based on plug-pull blocks, not welding
Technical Specification
| Model | 20A | 30A | 40A | 50A | 60A | 80A | |
| Input spec. | |||||||
| MPPT suggest working voltage | 12V system | 18VDC-80VDC | |||||
| 24V system | 30VDC-100VDC | ||||||
| 48V system | 60VDC-150VDC | ||||||
| Max PV input voltage | 12V/24V/36V/48V | 150VDC | |||||
| Max PV input power | 12V system | 280W | 420W | 570W | 700W | 900W | 1100W |
| 24V system | 550W | 840W | 1130W | 1400W | 1700W | 2270W | |
| 48V system | 1100W | 1650W | 2270W | 2800W | 3400W | 4530W | |
| Output spec. | |||||||
| Battery type | 12V/24V/36V/48V | Lithium battery, lead acid battery, gel battery | |||||
| Rated current | 12V/24V/36V/48V | 20A | 30A | 40A | 50A | 60A | 80A |
| Max charge current | 12V/24V/36V/48V | 22A | 32A | 42A | 52A | 62A | 82A |
| Max Efficiency | 12V/24V/36V/48V | ≥96.5% | |||||
| Charge type | 12V/24V/36V/48V | Three stages: constant current( MPPT), equal charge, float charge | |||||
| Protection | |||||||
| Input low voltage protection | Yes | ||||||
| Input high voltage protection | Yes | ||||||
| Positive and negative reverse protection | Yes | ||||||
| Short current protection | Yes, auto recovery | ||||||
| High Temp. protection | Yes | ||||||
| Display | |||||||
| LCD display | Show PV, load, battery voltage/capacity, charge current and fault | ||||||
| LED display | Charge indicator, DC load indicator | ||||||
| PC host machine ( communication connector) | RS485 (Optional) | ||||||
| Environment requirement | |||||||
| Humidity | 0-90%RH ( No condensation) | ||||||
| Working Temp. | -20ºC-60ºC | ||||||
| Store Temp. | -40ºC-70ºC | ||||||
| Altitude | 0~3500m | ||||||
| Package | |||||||
| Product size LxWxHmm | 212X190X85 | 313X230X91 | |||||
| Net weight (KG) | 1.9 | 3.62 | |||||
| Mechanical protection type | IP32 | ||||||
product specifications are subject to change without notice.
