Product Description

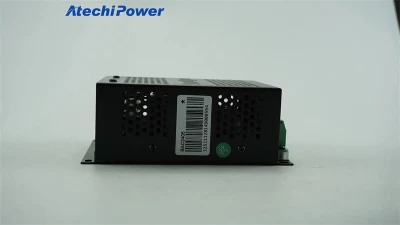

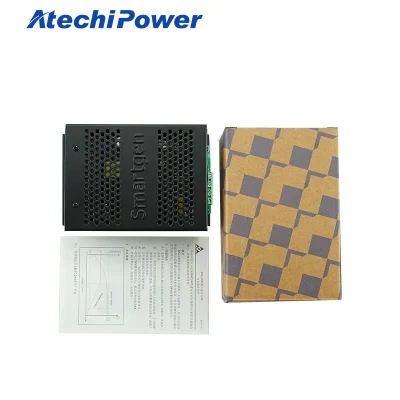

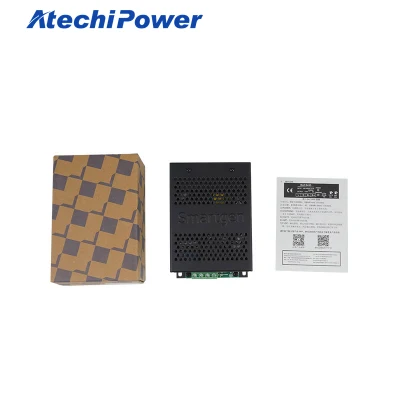

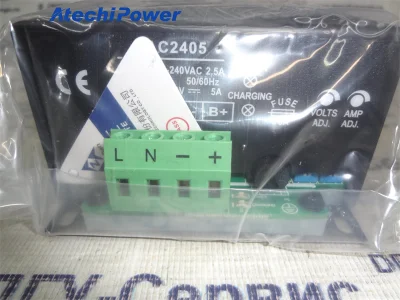

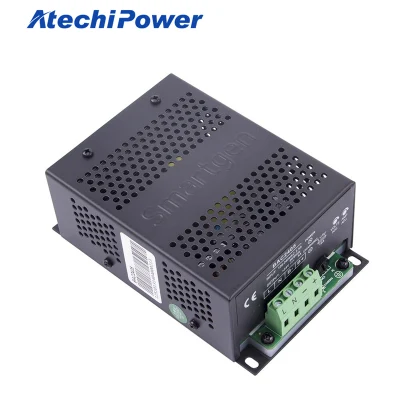

Floating Original ATS Generator Battery Charger BAC2405 is specially designed for starting or working of storage battery in diesel engine. It is a intelligent model of switch structure. It is only one charger in market which can automatic identify charging voltage, current and can automatic switch over corresponding output voltage. It feature in constant pressure, constant current, tricking current, resistance of short circuit and fully automated function.
| No. | Description | Value |
| 1 | Battery Voltage | 24V |
| 2 | Max. Charging Current | 5A |
| 3 | Rated Input Voltage | (100~240)V |
| 4 | Max. Input Voltage Range | (90~280)V |
| 5 | AC Input Frequency | (50/60)Hz |
| 6 | Max. Input Current | 2.5A |
| 7 | No-Load Power Consumption | <3W |
| 8 | Operating Mode | Two segments |
| 9 | Maximum Efficiency | 87% |
| 10 | Operating Temp. | (-30~+55)ºC |
| 11 | Storage Temp. | (-40~+85)ºC |
| 12 | Case Dimensions(mm) | 143*92*52 |
1. Switch power supply structure, wide input alternating voltage range, small size, light weight, high efficiency rate;
2. Automatic two-stage charging process (first constant current, then constant voltage) carried out according to storage battery charging characteristics to prevent overcharging and significantly prolong battery lifetime;
3. Built-in current protective circuit for short-circuit protection and reverse connection protection;
4. Charging voltage and current can be adjusted via potentiometer on the spot;
5. Suitable for 24V storage battery and the rated current is 5A;
6. LED display: Power indication and charging indication.
