Basic Info.
Model NO.
QW480-040-S
Size
187.5*77.8*41mm
Certification
KC, PSE, RoHS, CB, CE, C-Tick FCC GS Ices SAA Rcm Ukca UL
Socket Type
Au/EU/UK/Us Plug
Recyclable
Recyclable
Input Voltage
100-240VAC 50/60Hz
Color
Black
Transport Package
White Box/Polybags/at Your Request
Specification
Weight: 680± 10g
Trademark
QUAWIN/OEM
Origin
Shenzhen
HS Code
850431900
Production Capacity
500000 Pieces
Product Description
Quick Detail:
Brand Name:QUAWIN
Model Number:QW480-040-S
Use:48V Lead-Acid Battery
Type:Electric
Place of Origin:Guangdong China (Mainland)
Battery charger:automatic battery charger 58.8V
Color:Black
Shell Material:plastic case
Input voltage:100-240VAC 47/63Hz with PFC
Output voltage:58.8V
Output current:4a
Output power:235.2W
Efficiency:>=92%
Shock & Vibration:SAEJ1378 Standard
Charge mode:CC---CV---Float Charge
Output Connector:Crocodile clip,aviation connector,XLR,Ring terminal,Anderson connector,customization
Certification:CB60335/CB62368 CCC CE60335/CE62368
C- TICK FCC GS60335/GS62368 KC PSE SAA RCM UKCA60335/UKCA62368 UL1012/UL62368
Packaging & Delivery :
inner package: white box/polybags/at your request outer package:carton
Delivery Detail:sample within 7 work days,25-35 days for bulk order
Specifications:

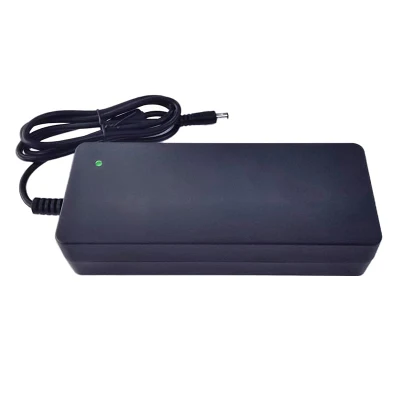

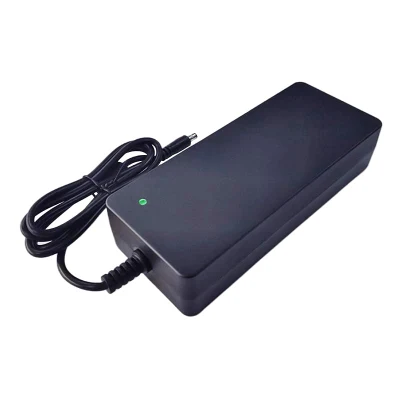

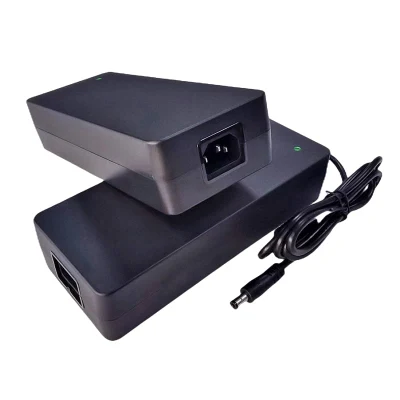

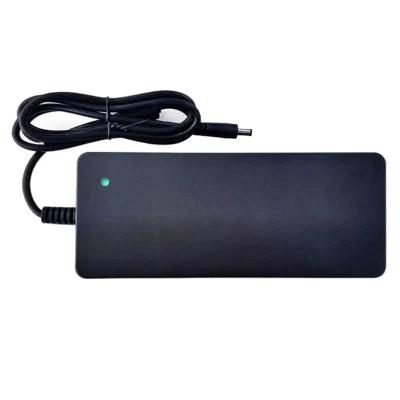

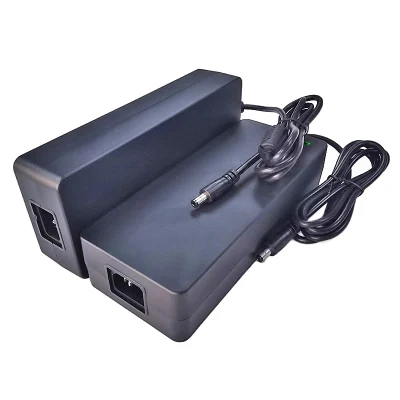

Portable fast SLA /AGM /VRLA /GEL charger 48V Lead-acid Battery charger
Features:
• Fully auto CC +CV(H)+CV(L) charging process,with MCU controller
• Constant big charging current for faster charging;
• automatically charging ending with Cut-Off output;
• Fully enclosed fanless design, quiet and durable.
• It can charge any 48V SLA/VRLA/GEL/AGM battery with capacity 8-32ah
Specification:
• Input: 100-240VAC 50/60Hz with PFC
• Output: DC 58.8V
• Charging current: 4a(Max)
• Dimensions (mm): 187.5*77.8*41
• Weight: 680±10g(only body)
Safety protections:
• Over current protection
• Over voltage protection
• Short circuit protection
• Reverse polarity protection
• Anti- revert current protection
• Anti-spark protection
LED Indicator:
The charger turn trickle-off charging mode if battery is full (1/10C), and indicate by LED:
• Charging:Red LED
• Battery Full:Green LED Call us to know more details datasheet.
Brand Name:QUAWIN
Model Number:QW480-040-S
Use:48V Lead-Acid Battery
Type:Electric
Place of Origin:Guangdong China (Mainland)
Battery charger:automatic battery charger 58.8V
Color:Black
Shell Material:plastic case
Input voltage:100-240VAC 47/63Hz with PFC
Output voltage:58.8V
Output current:4a
Output power:235.2W
Efficiency:>=92%
Shock & Vibration:SAEJ1378 Standard
Charge mode:CC---CV---Float Charge
Output Connector:Crocodile clip,aviation connector,XLR,Ring terminal,Anderson connector,customization
Certification:CB60335/CB62368 CCC CE60335/CE62368
C- TICK FCC GS60335/GS62368 KC PSE SAA RCM UKCA60335/UKCA62368 UL1012/UL62368
Packaging & Delivery :
inner package: white box/polybags/at your request outer package:carton
Delivery Detail:sample within 7 work days,25-35 days for bulk order
Specifications:
Portable fast SLA /AGM /VRLA /GEL charger 48V Lead-acid Battery charger
Features:
• Fully auto CC +CV(H)+CV(L) charging process,with MCU controller
• Constant big charging current for faster charging;
• automatically charging ending with Cut-Off output;
• Fully enclosed fanless design, quiet and durable.
• It can charge any 48V SLA/VRLA/GEL/AGM battery with capacity 8-32ah
Specification:
• Input: 100-240VAC 50/60Hz with PFC
• Output: DC 58.8V
• Charging current: 4a(Max)
• Dimensions (mm): 187.5*77.8*41
• Weight: 680±10g(only body)
Safety protections:
• Over current protection
• Over voltage protection
• Short circuit protection
• Reverse polarity protection
• Anti- revert current protection
• Anti-spark protection
LED Indicator:
The charger turn trickle-off charging mode if battery is full (1/10C), and indicate by LED:
• Charging:Red LED
• Battery Full:Green LED
| Typical Product Model | |||||
| Model | Input Voltage(V) | Battery Voltage(V) | Charging Voltage(V) | Charging Current(A) | |
| QW128-120-F | LiFePO4 | AC 100~264V | 12.8(4S) | 14.6 | 12 |
| QW256-080-F | 25.6(8S) | 29.2 | 8 | ||
| QW384-050-F | 38.4(12S) | 43.8 | 5 | ||
| QW512-040-F | 51.2(16S) | 58.4 | 4 | ||
| QW640-030-F | 64(20S) | 73 | 3 | ||
| QW768-025-F | 76.8(24S) | 87.6 | 2.5 | ||
| QW148-120-L | Lithium | 14.8(4S) | 16.8 | 12 | |
| QW259-080-L | 25.9(7S) | 29.4 | 8 | ||
| QW370-050-L | 37(10S) | 42 | 5 | ||
| QW481-040-L | 48.1(13S) | 54.6 | 4 | ||
| QW629-030-L | 62.9(17S) | 71.4 | 3 | ||
| QW740-025-L | 74(20S) | 84 | 2.5 | ||
| QW120-120-S | Lead Acid | 12(1S) | 14.7 | 12 | |
| QW240-080-S | 24(2S) | 29.4 | 8 | ||
| QW360-050-S | 36(3S) | 44.1 | 5 | ||
| QW480-040-S | 48(4S) | 58.8 | 4 | ||
| QW600-030-S | 60(5S) | 73.5 | 3 | ||
| QW720-025-S | 72V(6S) | 88.2 | 2.5 | ||
