Basic Info.
Product Description
| SKYRC PC2500 12/14S Agricultural UAV Intelligent 2500W 45A 4 Channel Fast Charging Lithium Battery Charger | ||||

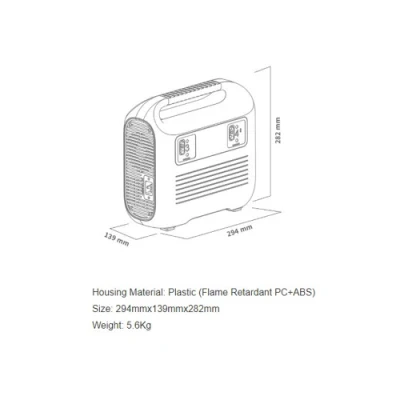

| Size and Weight | Material | Plastic (Flame Retardant PC-ABS) | ||
| Size | 294*139*282mm | |||
| Weight | 5.6kg | |||
| Power Supply | AC Input | 100-240V | ||
| Charging Power | AC220V | 2500W | ||
| AC120V | 1200W | |||
| Battery | Type | Lithium Battery | ||
| LiPo Battery Cells | 12S/14S | |||
| LiHV Battery Cells | 12S | |||
| Charger/Discharge | AC 220V | Fast Charge Current | max. 45A single channel | |
| Slow Charge Current | max. 20A single channel; max. 45A multi channels in total | |||
| AC 120V | Fast Charge Current | max. 1200W single channel | ||
| Slow Charge Current | max. 20A single channel; max. 1200W multi channels in total | |||
| Discharge Power | 60W | |||
| Charging Mode | Fast charge, Slow, Storage | |||
| Working and Storage | Working Temperature | 0ºC to 40ºC | ||
| Working Humidity | 0% to 75% | |||
| Storage Temperature | -10ºC to 70ºC | |||
| Storage Humidity | 0% to 75% | |||
SkyRC PC2500 2500W 4 Channel 45A battery charger is an intelligent charger that integrates CAN communication for smart batteries and ordinary lithium batteries. It is compatible with Tattu Swift 12S 16000MAH, 22000MAH, Swift Pro 12s 22000mah, Okcell 12S 8000mah to 28000mah battery, FullyMAX battery, Super Poly Power battery and etc.
SkyRC PC2500 battery charger can connect four batteries at the same time. The charger's maximum output power is up to 2500W, with three modes: Fast(Fast Charge), Charge(Slow Charge), Storage. The charger can recognize the batteries with customized CAN communication instantly. Charging is convenient and straightforward with a better user experience.
Main Features:
--- The Max. output can reach 2500W and the Max. Current is 45A, a 12S 16000mah battery can be fully charged in about 15 minutes;

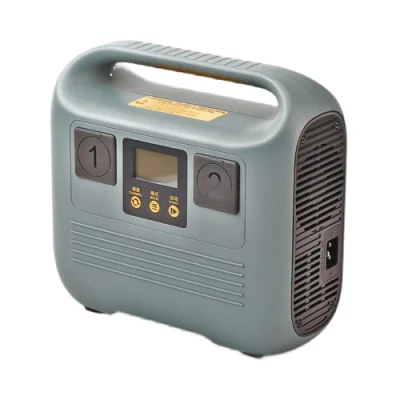

---The LCD shows the charging process in real time, such as the charging time, battery percentage, single cell voltage and etc;
---PC2500 charger comes with built-in CAN Bus communication;

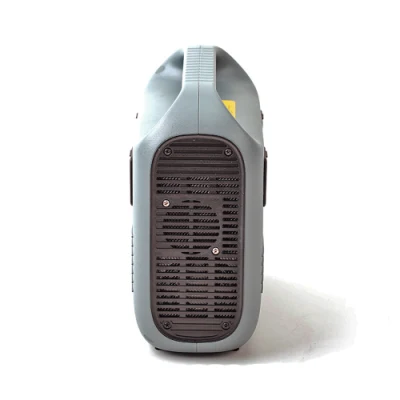

---Effectively filtering dust and sediment with a high-quality ventilator
---Short Circuit Protection;
---Reverse Polarity Protection;
---Over-temperature Protection.
CNUAVS (full name: Dongying Youjia Industry & Trade Co. Ltd.) was founded in 2004, committed to the development and implantation of agricultural technology, it is one of the world's leading UAS (Unmanned Aerial System) R&D manufacturers and a smart agriculture solution provider. Headquartered in Shandong, Meanwhile, CNUAUS has set up laboratories and research stations in 20 countries, including Australia, Japan, Germany, etc., participated in a number of frontier Agri-tech projects.
Q1. Can I have a sample order for agriculture drone?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 7-10 days. FOB shenzhen price, CFR price DDP price, DDU price
Q3. Do you have any MOQ limit for drone?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by airplane. It usually takes 7-12 days to arrive. sea shipping is also optional.
Q5. How to proceed an order for drone?
First, let us know your requirements or application.
Second, we quote according to your requirements or our suggestions.
Third, customer confirms the samples and places deposit for formal order.
Fourth, we arrange the production.
Q6. Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on the sample.
