Basic Info.
Model NO.
QW6-12-040-N
Size
119*60.3*37.3
Certification
RoHS, CE
Socket Type
Au/EU/UK/Us Plug
Recyclable
Recyclable
Input Voltage
100-240VAC 50/60Hz
Color
Black
Transport Package
White Box/Polybags/at Your Request
Specification
Weight: 300g(only body)
Trademark
QUAWIN/OEM
Origin
Shenzhen
HS Code
8504409999
Production Capacity
500000 Pieces
Product Description
Quick Detail:
Brand Name:QUAWINModel Number:QW6-12-040-N
Use:5-10 Cells 6-12V Nimh Nicd Battery Pack
Type:Electric
Place of Origin:Guangdong China (Mainland)
Battery charger:automatic battery charger 7.5-15V
Certificate:CE
Color:black
Input voltage:100-240VAC 50/60Hz
Output voltage:7.5-15V
Output current:4a
Output power:60W
Charge mode:MCU control charging process to avoid over charge

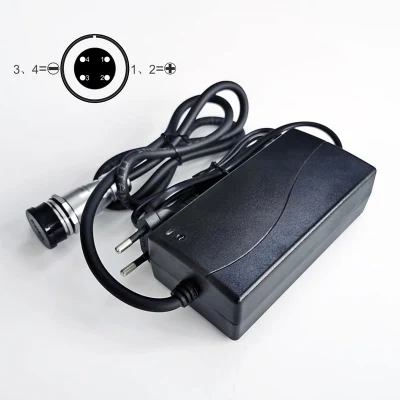

Output Connector:DC Jack,Small crocodile clip,Cigar lighter,XRL,Ring terminal
Packaging & Delivery :
40pcs/Carton
Carton size:390*300*460mm
Delivery Detail:sample within 7 work days,15~25 days for bulk order
Carton size:390*300*460mm
Delivery Detail:sample within 7 work days,15~25 days for bulk order
Specifications:
5-10 Cells 6-12V Nimh Nicd Battery Pack
Features:
• Charging mode:CC-CV(Constant Current-Constant Voltage)
• High efficiency and low power consumption
• Stabilized output and low noice
• Efficiency(at 100% load): >=80%
• Operating temperature:-10ºC ~ 45ºC
• Storage temperature:-20ºC ~ 70ºC
• Operating humidity:5%~90%RH
Specification:
• Input: AC 100-240V 50-60Hz
• Output:7.5-15V
• Charging current: 4a
• Dimensions (mm):119*60.3*37.3
• Weight: 300g(only body)
Safety protections:
• Over Voltage protection
• Short Circuit protection
• Polarity error protection
• Over power protection
LED Indicator:
The charger turn trickle-off charging mode if battery is full (1/10C), and indicate by LED:
• Charging:RED,
• Protection:RED Blinking
• No battery or Charging finished:GREEN
• Output short or battery poles wrong:RED Blinking
Call us to know more details datasheet.
| Model | Input Voltage (V) | Battery Voltage (V) | Charging Voltage (V) | Charging Current (A) | |
| QW2.4-4.8-050-N | NiMh/NiCD | AC 100~264V | 2.4-4.8(2-4S) | 3~6 | 5 |
| QW3.6-7.2-050-N | 3.6-7.2(3-6S) | 4.5-9 | 5 | ||
| QW4.8-9.6-050-N | 4.8-9.6(4-8S) | 6-12 | 5 | ||
| QW6-12-040-N | 6-12(5-10S) | 7.5-15 | 4 | ||
| QW7.2-14.4-030-N | 7.2-14.4(6-12S) | 9-18 | 3 | ||
| QW9.6-19.2-025-N | 9.6-19.2(8-16S) | 12-24 | 2.5 | ||
| QW12-24-020-N | 12-24(10-20S) | 15-30 | 2 | ||
| QW18-36-013-N | 18-36(15-30S) | 22.5-45 | 1.3 | ||
