Basic Info.
Model NO.
F26000
Size
6V 12V 24V
Certification
SASO, RoHS, TUV, CE
Socket Type
For E.U.
Recyclable
Non-Recyclable
Charge Voltage
DC6V/12V/24V
Input
200VAC-250VAC/0.27A or 100VAC-125VAC/0.54A
Efficiency
80% Max
USB Output
DC5V 2.1A Max
BMS Unlocking
Yes
Transport Package
Carton Box

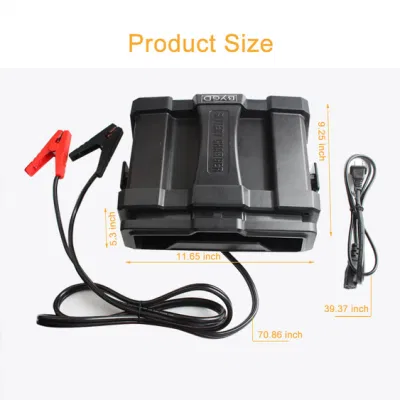

Specification
370*110*71mm
Trademark
freeman
Origin
Ningbo
HS Code
8504409999
Production Capacity
1000000
Product Description

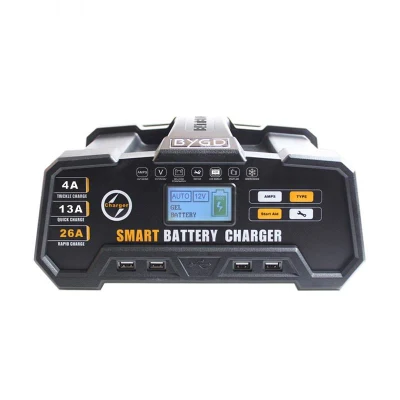

6V/12V/24V Smart Car Battery Charger Intelligent Repair Gel/Lead Acid/AGM/Li Battery Charger
1. 1*F26000 Smart Battery Charger
2. 1*220V EURO PLUG
3. 1*INTEGRATED CLIP CABLE
4. 1*User Manual
Battery type and output voltage
| Type of battery | 6V | 6V Floating charge voltage | 12V | 12V Floating charge voltage | 24V | 24V Floating charge voltage |
| Standard lead acid | 7.2±0.2V | 6.8±0.2V | 14.4±0.2V | 13.6±0.2V | 28.8±0.2V | 27.2±0.2V |
| AGM | 7.4±0.2V | 6.8±0.2V | 14.8±0.2V | 13.6±0.2V | 29.6±0.2V | 27.2±0.2V |
| GEL | 7.0±0.2V | 6.6±0.2V | 14.1±0.2V | 13.6±0.2V | 28.2±0.2V | 27.2±0.2V |
| Lifepo4 | 7.4±0.2V | 7.1±0.2V | 14.6±0.2V | 13.6±0.2V | 29.2±0.2V | 27.2±0.2V |
Output current
When the charger is connected to the working power supply and the output clip connected to the battery, the default output current is 2A. The user can choose the correct current to charge according to the battery capacity. The size of various charging currents is shown in the following table:
| Current Voltage | AUTO | 2A | 4A | 6A | 8A | 12A | 13A | 24A | 26A |
| 6V | √ | √ | √ | ||||||
| 12V | √ | √ | √ | √ | |||||
| 24V | √ | √ | √ | √ |
The estimated battery charging time is below: The size of the battery (Ah) and its depth of discharge (DOD) greatly affect its charging time. The charging time is based on the average depth of discharge of a fully charged battery , it is for reference only. Actual charging time will depend on battery conditions, Below charging time is based on 50% DOD.
| Battery Capacity(Ah) | Estimated charge time (hour) | ||
| 6V | 12V | 24V | |
| 8 | within 2 hours | within 2 hours | within 2 hours |
| 12 | within 2 hours | within 2 hours | within 2 hours |
| 18 | within 2 hours | within 2 hours | within 2 hours |
| 24 | within 2 hours | within 2 hours | within 2 hours |
| 30 | within 2 hours | within 2 hours | 2.5 |
| 40 | within 2 hours | within 2 hours | 3 |
| 50 | 2 | 2 | 4 |
| 60 | 2.5 | 2.5 | 4.5 |
| 70 | 3 | 3 | 5.5 |
| 80 | 3.5 | 3.5 | 6 |
| 100 | 4 | 4 | 8 |
