Basic Info.
Model NO.
F15000
Size
Wet, Gel, Mf, Ca, Efb, AGM, Lithium Battery
Certification
SASO, RoHS, TUV, CE
Socket Type
For USA/Canada
Recyclable
Non-Recyclable
DC Output Voltage
DC6V/12V/24V
Input
200VAC-250VAC/0.27A, 100VAC-125VAC/0.54A
Efficiency
85%
BMS Unlocking
Yes
Transport Package
Carton Box
Specification
370*110*71mm
Trademark
freeman
Origin
Ningbo
HS Code
8504409999
Production Capacity
1000000
Product Description
About F15000.
F15000 represents some of the most innovative and advanced technologies on the market, making every charge simple and easy. This is most likely the safest and most effective charger you will use. F15000 is designed to charge all types of 6V,12V and 24V lead-acid batteries, including wet (full charge), gel, MF (maintenance free), EFB (enhanced full charge), AGM (absorbent glass mat) batteries and lithium Battery. It is suitable for charging batteries up to 250 Ah and supports all battery sizes.
| AC input: | 200V~250VAC 50Hz (± 2) |
| Efficiency: | 85%(MAX) |
| Power: | 300W Max |
| DC output voltage: | DC6V/12V/24V |
| Charging current : | DC6V:4A/8A/15A DC12V:4A/8A/15A DC24V:2A/4A/8A |
| BMS unlocking: | Yes |
| Charging stages: | 3 stage charging for Lithium battery 8 stage charging for wet batteries |
| Applicable battery type: | Wet, Gel, MF, CA, EFB, AGM, Lithium battery (Lithium battery with BMS only) |
| Battery capacity: | Less than 250AH,support all battery size. |
| working temperature: | -10°C to +40ºC |
| Shell protection: | IP20 |
| Cool down: | Cooling fan |
| Product Size | 370*110*71mm |
| Product net weight: | 1.30KG |

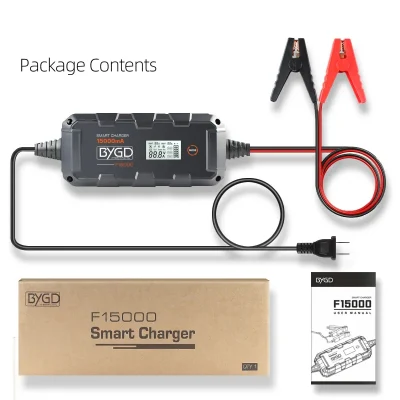

What's in the box?
1. 1*F15000 Smart Battery Charger
2. 1*INTEGRATED 220V EURO PLUG
3. 1*INTEGRATED CLIP CABLE
4. 1*User Manual
Battery type and output voltage | Battery Type | 6V | 6V Floating voltage | 12V | 12V Floating voltage | 24V | 24V Floating voltage |
| Standard battery | 7.2±0.2V | 6.8±0.2V | 14.4±0.2V | 13.6±0.2V | 28.8±0.2V | 27.2±0.2V |
| AGM | 7.4±0.2V | 6.8±0.2V | 14.8±0.2V | 13.6±0.2V | 29.6±0.2V | 27.2±0.2V |
| GEL | 7.0±0.2V | 6.6±0.2V | 14.1±0.2V | 13.6±0.2V | 28.2±0.2V | 27.2±0.2V |
| LifePO4 | 7.4±0.2V | 7.1±0.2V | 14.6±0.2V | 13.6±0.2V | 29.2±0.2V | 27.2±0.2V |
Battery capacity corresponding to charging current
| Charging current | 2A | 4A | 8A | 15A |
| Battery capacity | 0-15Ah | 15-60Ah | 60-120Ah | 120-250Ah |
Battery charging time
The estimated battery charging time is below: The size of the battery (Ah) and its depth of discharge (DOD) greatly affect its charging time. The charging time is based on the average depth of discharge of a fully charged battery , it is for reference only. Actual charging time will depend on battery conditions,Below charging time is based on 50% DOD.
| Battery Capacity(Ah) | Estimated charge time (hour) | ||
| 6V | 12V | 24V | |
| 8 | within 2 hours | within 2 hours | within 2 hours |
| 12 | within 2 hours | within 2 hours | within 2 hours |
| 18 | within 2 hours | within 2 hours | within 2 hours |
| 24 | within 2 hours | within 2 hours | within 2 hours |
| 30 | 2 | 2 | 3.5 |
| 40 | 2.6 | 2.6 | 5 |
| 50 | 3.3 | 3.3 | 6 |
| 60 | 4 | 4 | 7.5 |
| 70 | 4.5 | 4.5 | 8.7 |
| 80 | 5.5 | 5.5 | 10 |
| 100 | 6.5 | 6.5 | 12.5 |
