Basic Info.
Packaging & Delivery
Product Description
1. Adopting the latest Latest LifePo4 prismatic cell technology
2. Warranted throughout of 10MWh per 1kWh of stored capacity
3. 1C Discharge rate and 0.5C Charge rate
4. 158Wh per Kg+/-5% for cells
5. 2.6kWh 5kWh 10kWh optional
6. 5000 cycles @25ºC 0.7C conditions
7. Plug and Play functionality
8. Multiple BMS functionality allowing greater control and monitor
9. Scalable Battery Packs
10.Wall mounted and Ground type selectable
11.Multiple Energy Capacity options
12.BMS Compatible with Growatt, Goodwe, Deye, SMA, etc.,
13.Wall mounted lithium battery is mainly for home energy stoarge solutions.

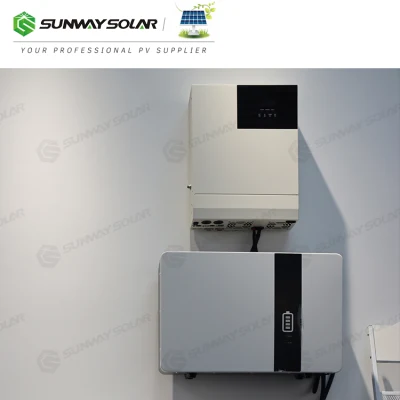

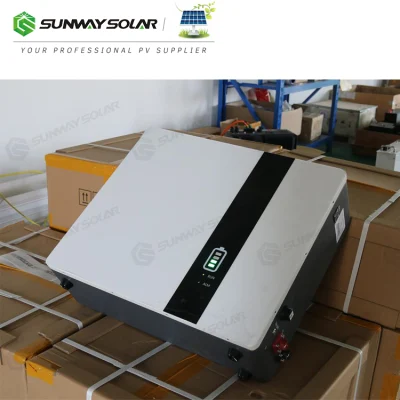

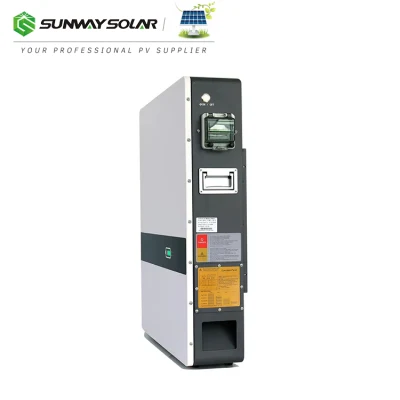

Front of Wall Mounted Lithium Battery Side of Wall Mounted Lithium Battery Back of Wall Mounted Lithium Battery Residential Solar & Storage Solution
(3.6KW/5KW Hybrid Inverter+5kWH Wall Mounted Lithium Battery)

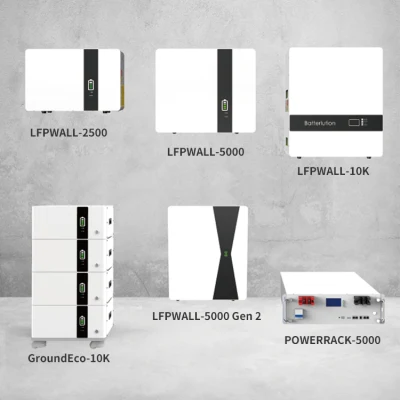

| Mode Capacity | LFPWall 2500 | LFPWall 5000 | LFPWall 10K |
| Energy Capacity | 2.56kWh | 5.12kWh | 10.24kWh |
| Ah Capacity | 50Ah | 100Ah | 200Ah |
| Nominal Voltage(V) | 51.2V | ||
| Operation Voltage(V) | 43.2V-58.4V | ||
| Suggested SOC | 10% ~ 100% | ||
| Usable Energy | 2.3kWh | 4.6kWh | 9.21kWh |
| Nominal Voltage | 51.2V, 48V optional | ||
| Operation Voltage | 44.8V ~ 57.6V | ||
| Maximum Charge/Discharge Current | 35A | 70A | 100A |
| BMS | Yes, intelligent monitoring and protection BMS per install | ||
| Scalable (Parallel Function) | Yes | ||
| Cycle Life | ≥ 6000 | ||
| Warranty BTT | Standard 5 year, 10 years optional 10MWh per kWh BTT (battery total throughput) | ||
| Operation Temperature | Charge 0ºC ~ 45ºC , Discharge -20ºC ~ 45ºC | ||
| Storage Temperature | -20ºC ~ 45ºC | ||
| Net Weight | 30kg | 52kg | 96kg |
| Dimensions (W x H x D) | 537*365*196mm | 524*468*197mm | 694*581*219mm |
| Certifications | MSDS, UN38.3, CE, RoHS | ||
| IP Grade | IP65 | ||
| Communications | RS485, CAN, RS232, BMS has been compiatble with most of hybrid inverter brands in market | ||
| More options | Nominal 48V or 51.2V options Fire suppression per install Heating system per install OEM & ODM support | ||
| Note | LFPWall 2500, 2.6kWh (51.2V) 2.4kWh (48V) LFPWall 5000, 5.12kWh (51.2V) 4.8kWh (48V) LFPWall 10K, 10.24kWh (51.2V) 9.6kWh (48V) | ||
Q1:Is the battery BMS included?
A1:Yes.It's advanced BMS included and very safe to use.
Q2:How do you ship lithium battery?
A2:We can ship by sea.
Q3:Does the battery have overcharge and overdischarge protection?
A3:Yes.We use advanced BMS and it can protect the battery well from overcharge and overdischarge.
Q4:What's the lead time?
A4:Sample lead time:3-7 days.Order lead time:12-25 days.
Q5.What is the payment term?
A5:T/T, L/C, Credit Card, Alibaba Trade Assurance,etc.
Q6.How can guarantee quality?
A6:Always a pre-production sample before mass production; Always final Inspection before shipment.
Q7.Do you provide after-sales serive?
A7:Yes,the warranty for lithium battery is 5 years or 10 years optional, if any quality problems on our side in this period, we
can send new one as replacement.
