Basic Info.
Model NO.
QW160-015-F
Size
115*47.2*34.3mm
Certification
RoHS, CE
Socket Type
Au/EU/UK/Us Plug
Recyclable
Recyclable
Input Voltage
100-240VAC 50/60Hz
Color
Black
Transport Package
White Box/Polybags/at Your Request
Specification
Weight: 250± 5g(only body)
Trademark
QUAWIN/OEM
Origin
Shenzhen
HS Code
850431900
Production Capacity
50000 Pieces/Month

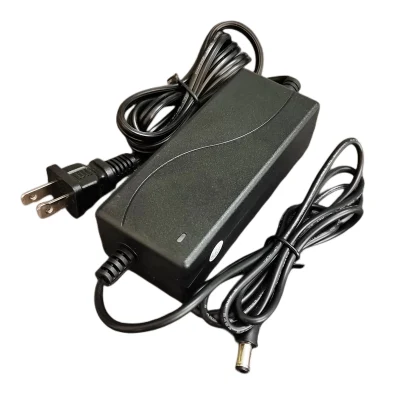

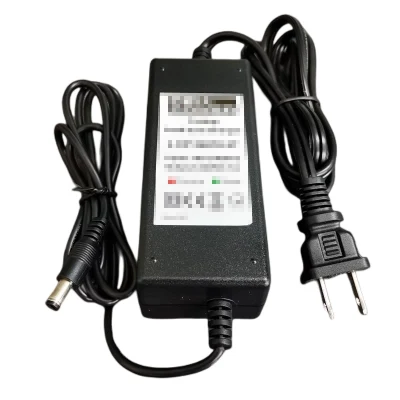

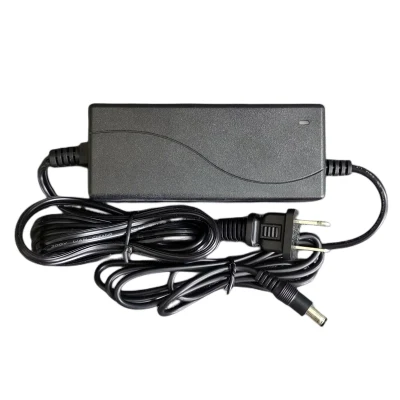

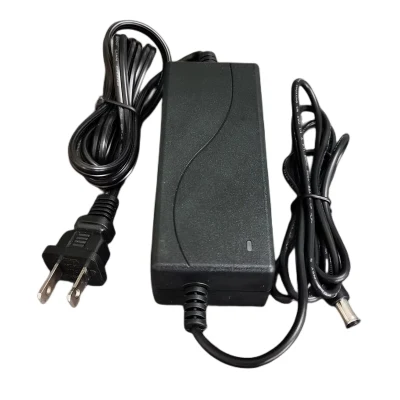

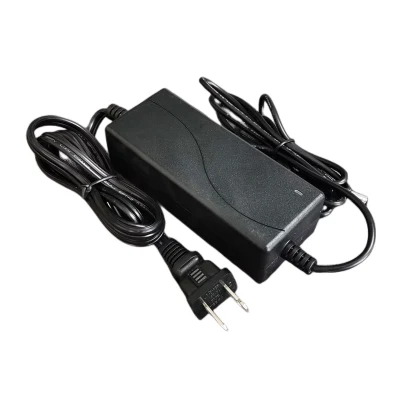

Product Description
Quick Detail:
Brand Name:QUAWINModel Number:QW160-015-F
Use:5S 15V/16V Lifepo4 battery pack
Type:Electric
Place of Origin:Guangdong China (Mainland)
Battery charger:automatic battery charger 18.25V
Color:Black
Shell Material:Plastic Shell(ABS+PC)
Input voltage:100-240VAC 50/60Hz
Output voltage:18.25V
Output current:1.5a(Max)
Output power:27.375W
Charge mode:CC-CV(Constant Current-Constant Voltage)
Output Connector:DC Jack,Waterproof Flat Jack,RCA,Multiple PIN,Micro USB,TYPE C,Small Alligator Clip,Ring Type Terminal,Air Jet Plug,customization
Packaging & Delivery :
50pcs/Carton
Carton size:440*337*318mm
Delivery Detail:sample within 7 work days,15~25 days for bulk order
Carton size:440*337*318mm
Delivery Detail:sample within 7 work days,15~25 days for bulk order
Specifications:
5S 15V/16V Lifepo4 battery pack
Features:
• Charging mode:CC-CV(Constant Current-Constant Voltage)
• High efficiency and low power consumption
• Stabilized output and low noice
• Efficiency(at 100% load): >=85%
• Operating temperature:-20ºC ~ 45ºC
• Storage temperature:-40ºC ~ 85ºC
• Operating humidity:5%~90%RH
Specification:
• Input: 100-240VAC 50/60Hz
• Output: DC 18.25V
• Charging current: 1.5a(Max)
• Dimensions (mm): 115*47.2*34.3
• Weight: 250±5 g(only body)
Safety protections:
• Over Voltage protection
• Short Circuit protection
• Polarity error protection
• Over power protection
LED Indicator:
The charger turn trickle-off charging mode if battery is full (1/10C), and indicate by LED:
• Charging:Red LED
• Battery Full:Green LED
| Typical Product Model | |||||
| Model | Input Voltage (V) | Battery Voltage (V) | Charging Voltage (V) | Charging Current (A) | |
| QW064-030-F | LiFePO4 | AC 100~264V | 6.4(2S) | 7.3 | 3 |
| QW128-020-F | 12.8(4S) | 14.6 | 2 | ||
| QW256-010-F | 25.6(8S) | 29.2 | 1 | ||
| QW384-005-F | 38.4(12S) | 43.8 | 0.5 | ||
| QW512-005-F | 51.2(16S) | 58.4 | 0.5 | ||
| QW074-030-L | Lithium | 7.4(2S) | 8.4 | 3 | |
| QW111-020-L | 11.1(3S) | 12.6 | 2 | ||
| QW148-015-L | 14.8(4S) | 16.8 | 1.5 | ||
| QW185-015-L | 18.5(5S) | 21 | 1.5 | ||
| QW222-010-L | 22.2(6S) | 25.2 | 1 | ||
| QW259-010-L | 25.9(7S) | 29.4 | 1 | ||
| QW296-005-L | 29.6(8S) | 33.6 | 0.5 | ||
| QW333-005-L | 33.3(9S) | 37.8 | 0.5 | ||
| QW370-005-L | 37(10S) | 42 | 0.5 | ||
| QW407-005-L | 40.7(11S) | 46.2 | 0.5 | ||
| QW444-005-L | 44.4(12S) | 50.4 | 0.5 | ||
| QW481-005-L | 48.1(13S) | 54.6 | 0.5 | ||
| QW060-030-S | Lead Acid | 6(0.5S) | 7.35 | 3 | |
| QW120-020-S | 12(1S) | 14.7 | 2 | ||
| QW240-010-S | 24(2S) | 29.4 | 1 | ||
| QW360-005-S | 36(3S) | 44.1 | 0.5 | ||
| QW480-005-S | 48(4S) | 58.8 | 0.5 | ||
| QW6-12-020-S | 6-12 | 7.35-14.7 | 2 | ||
