Product Description

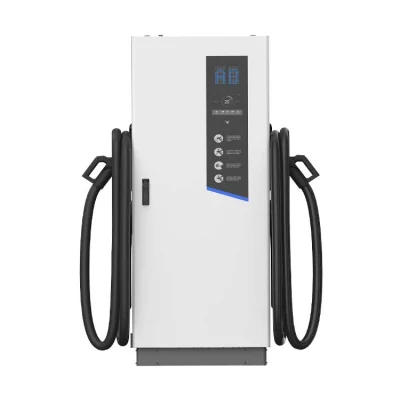

PEVC3107 is a basic DC Fast EV charger. It is easy to install, stable in performance, and provides complete protection function. The LCD display can show the charging status, user friendly. It supports GSM/3G/4G/Ethernet communication with party system for remote monitoring/maintain/upgrade. The charger can optionally equipment installed outdoors.
IP54, Strong and Durable: Support outdoor harsh environment,waterproof and dust-proof. Rugged shell which could resist the rolling and crash of the car.
| Power Suppply | 3P+N+PE |
| Rated Voltage | 400VAC±15%(50/60Hz) |
| THDi | ≤5% |
| Efficiency | ≥95% |
| Power Factor | ≥0.98 |
| Connector Type | CCS Combo 1, CCS Combo 2, Chademo |
| Output Voltage | 150-1000V |
| Maximum Output Current | 200A/250A |

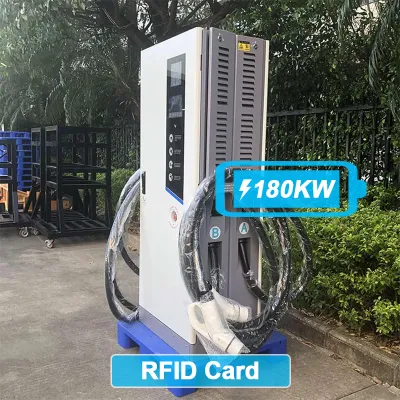

| Output Power Rating | 60KW/120kW(Max)/180kW(Max)/240KW(Max) |
| Output Voltage Accuracy | ≤0.5% |
| Output Current Accuracy | ≤±5% |
| Screen Size | 7-Inch touch screen |
| Charging Method | RFID Card |
| Backend | Cellular modem:GSM/4G (optional) LAN:10/100 Base-T Ethernet |
| Communication Protocol | OCPP 1.6J |
| Operating Noise Level | ≤60dBA |
| Ingress Protection (IP/IK rating) | IP54/IK08 |
| Power Meter | Accuracy Class 1 energy meter |
| Enclosure | Galvanized steel |
| Product Dimension | 700 x 550 x 1800mm(W x D x H) |
| Package Dimension | 950 x 720 x 1950mm(W x D x H) |
| Protection | Over Current,Under Voltage,Over Voltage,Short Circuit,Residual Current, Surge Protection,Over Temperature,Ground Protection |
| Certification Standard | EN/IEC 61851-1,EN/IEC 61851-23,EN/IEC 61851-24,EN/IEC62196-1,EN/IEC62196-3 |
| Operating Temperature | -35ºC to +50ºC |
| Storage Temperature | -40°C to +75°C |
| Maximum Installation Height | ≤2000m |
| Operating Humidity | 5%-95% RH |
Zhuhai Piwin New Energy Co., Ltd. is a production-oriented enterprise integrating R&D, production, sales and service of intelligent EV charger products. Our products have more than 31 core technologies, obtained over 68 patents, and had passed the international quality system certification. To be the leading enterprice in this industry. The products have passed TUV, CE, Rosh, CB, Nemko, SAA, VDE, KC, BIS, CCC and other certification, UL certification is also under negotiation.
The company has long been engaged in the R&D and production of AC and DC chargers for new energy vehicles in overseas markets, and with the capabilities of OCPP protocol docking and overseas platform deployment. The company's technology in the field of EV chargers is unique, and it has rich experience in cooperation with overseas listed companies, fortune global 500, and new energy vehicle manufacturers.
Company's product concept: "Safe, Intelligent, Green, and Environmentally friendly".
Our products have been sent to some important potential markets such as Europe, North America, Japan, South Korea, Southeast Asia, etc. Contributing to the early realization of carbon neutrality in the world.
Q1: Where is your EV charger factory address?
A: Zhuhai, Guangdong, China. Welcome to visit our factory.
Q2: Can you provide OEM/ODM service?
A: Yes. If you have customized requirements, please contact us.
We will provide specific solutions for your requirements.
Q3: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4: What is your sample policy?
A: We can supply the sample, but the customers have to pay the sample cost and the courier cost.
Q5: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
If you can't find the exact product you need in the picture, welcome to contact us at any time, we will reply you as soon as possible.
