Basic Info.
Certification
CE, ISO, TUV
Warranty
24 Months
Transport Package
Standard Packaging
Specification
900*900*1800mm
Trademark
Hiconics/Customization
Origin
China
HS Code
8504409999
Production Capacity
300PCS/Month
Product Description
HICONICS 300kW/600kW Split Type
Pantograph Charging System
Pantograph Charging System

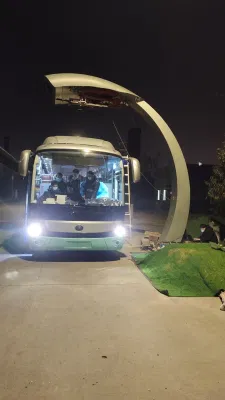

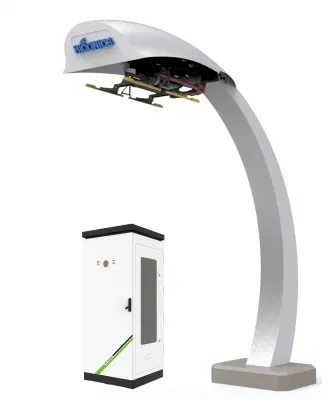

HK series split type pantograph system is a kind of high-power quick charging equipment developed by Hiconics Intelligent Company. It is mainly used to provide fast charging for pure electric buses. The product has two modes of AC input and DC input and the whole charging system is composed of "charging module cabinet + charging interface", which makes maintenance more convenient and customers have better experience. The pantograph adopts streamline design, which makes it look more fashionable. The charging module cabinet is treated with galvanizing and multi-layer spraying, and its mechanical characteristics are greater than IK10. With waterproof, dustproof and anti-corrosion protection functions, the system could achieve a protection class of IP54 and its design could meet environment protection demand. The system has combined the charging interface, HMI, battery charger, communication, billing system functions together.
With modular design concept, the system has easily achieved convenient installation, commissioning and simple maintenance as well. The pantograph system could be applied in large parking lot, bus station and other places.
Unique features of HK SERIES Split Type Pantograph System
A. Large Current Output Mode
PLC carrier communication is adopted to realize accurate positioning and data interaction during charging between the bus and pantograph, which has greatly improved the charging security and charging connection errors have been prevented also.
-The stability of PLC carrier communication is relatively higher and meet ISO15118 standard.
-The maximum output current can reach 800A aims to satisfy fast charging of bus system and commuter system.

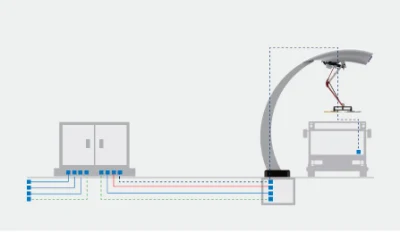

B. "Power + Charging" Split Structure Design
-Split structure design concept is adopted to separate the power part and the charging interface, which is convenient for installation and maintenance.

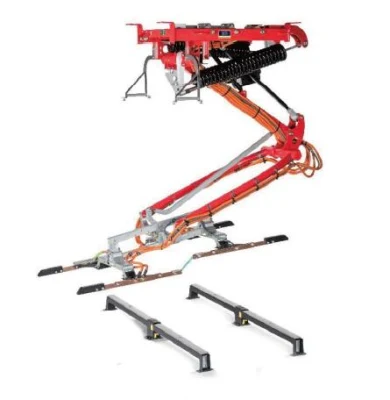

-The charging interface adopts schunk brand which is imported from Germany and charging stability has been ensured by good electrical components.
-Fluid mechanics structural design makes the pantograph appearance beautiful and generous and steel frame design has ensured pantograph safe and reliable.
C. Safe Control Mode
-With the output/input overvoltage, undervoltage, overcurrent, abnormal frequency, output overflow voltage, short circuit, emergency stop, access control, leakage current, lightning surge protection functions and hot insertion and extraction function aims to ensure safe charging.
D. Comprehensive Charging Solutions
-The charging interface of both falling type and rising type could be provided and the input mode of AC input and DC input could be selected by the customer.
-Could supply a comprehensive solution of pantograph system and the electric bus.
Major Standards and Approvals
IEC61851-1 -2010
IEC 61851-23-2014
IEC 61851-24-2014
IEC 62196-1-2011
IEC 62196-3 2014
IEC 60364-4-41:2005
IEC 60990:1999
IEC 61439-1:2011
IEC 60664-1:2007
ISO15118-2018
Technical data sheet for 6 00kW Split Type Pantograph System
| Item | Technical Requirements |
| Nominal Voltage | 400VAC±15% |
| Input Current(MAX) | 1100A |
| AC Input Frequency Range | 40~60HZ |
| AC Input Mode | 3P+N+PE |
| Rated Output Voltage | 150~1000VDC |
| Rated Output Current | 0~800A |
| Cooling Method | Force Air Cooling |
| Power Factor | >0.99 |
| Efficiency | ≥0.95(50% load or above) |
| Standby Consumption | ≤0.1% @ nominal power |
| Voltage Error | ≤±0.5% |
| Current Error | 0.3A(Iout≤30A); ±1%( Iout≥30A) |
| Voltage Precision | ≤±0.5% |
| Current Precision | ≤±1% |
| Ripple Factor | Effective Value ≤±0.5%, Peak Value ≤±1% |
| Robust Protection | Protecting Functions: Input Overvoltage/undervoltage Protection, output overvoltage protection Input/output Overcurrent Protection, Short Circuit Protection, Emergency Stop Protection, RCD Protection, Earthing Protection, Self-checking after startup Protection, Output Wire Reversed Connected Protection |
| Charging Mode | Output Charging Interface: Pantograph |
| Communication Protocol | OCPP 1.6 (JSON) Optional |
| Internet/network | 4G, Ethernet/ LAN/WIFI |
| IP Class | IP54 |
| Operation Temperature | -30ºC~+55ºC |
| Noise | ≤65dB |
| Humidity | 5~95% |
| Environmental Protection | Meet 2011/65/EU |

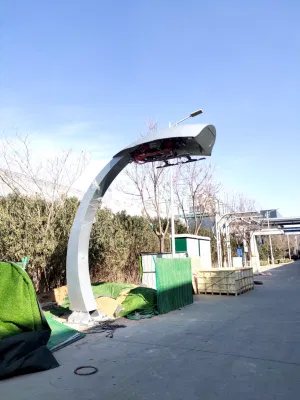

Application
Hiconics EV charger has been widely applied in over 200 cities all around China and about 27 countries and regions overseas like England, France, Bulgaria, Australia, Middle East Region and Singapore, etc.
We have accumulated abundant experience in actual application and service. While constantly improving product performance and service quality, we also welcome valuable comments from users and grow up together.
After Sale Service
1). Well prepared English version users manual, construction manual, maintenance guidance document will be supplied together with the products.
2). Online remote guidance will be supplied 24 hours a day to help with installation, commissioning, operation and problem solving part.
3). Operation and maintenance training could be supplied for free to help customer better understanding and operating the charger.
4). Spare parts within warranty period will be delivered within 5 working days after problem confirmed.
5). The engineer will be dispatch to solve problem onsite if severe problem occurred with large quantity.
About the company
Hiconics Intelligent is a national high-tech enterprise specialized in R&D, production and marketing of smart charging stations, key components and the integration of energy storage systems.The company is located in Wuhan Optical Valley Hiconics Industrial Park, which covers an area of 56,000 square meters. Hiconics Wuhan Company has about 130 employees, 28% are core R&D staff.
Equipped with a scientific research team with excellent technology, Hiconics Intelligent has the capability of software and hardware with completely independent intellectual property rights. We are always committed to controlling products quality from the source, striving to provide customers with high-quality products, and truly realizing charging freely.
Hiconics Intelligent has built national advanced automatic assembly production line with rhythm set automatically. Operation documents are put on display screen. Debugging and aging process are operated with automation equipment. Data self-collection, self-diagnosis and self-uploading could be achieved also. One charging pile could be finished within 35 minutes and daily production capacity reaches 13 sets for each production line.
