Outdoor Public EV Charger DC 60kw Wall Mount Ocpp 1.6j IP54

Find the best Outdoor Public EV Charger DC 60kw Wall Mount Ocpp 1.6j IP54 at our factory. High-quality, durable and customizable charging solutions." Note: SEO description should be concise and clear, use specific keywords, and convey the product's benefits.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Product Parameters
  • Packaging & Shipping
  • Company Profile
  • Certifications
  • Exhibitions
  • FAQ
Overview

Basic Info.

Model NO.
EXP60K3-FT-W-1
DC Output Voltage
150VDC~1000VDC
Protection Class
IP55
Payment
Card and APP
After-Sales Service
One-on-One Technician Online Support
Type
Fast EV Charging Station
Certification
CE, UL, RoHS
Warranty
24 Months
Transport Package
Pallet
Specification
705mm*1000mm*240mm
Trademark
Infypower
Origin
China
HS Code
8504409999
Production Capacity
10000PCS Per Year

Product Description

Product Description

EXP60K3-FT-1 is one of Infypower bestselling electric vehicle DC chargers qualified for CCS, CHAdeMO, GBT and AC type2 standard. The EV charging station features a perfect combination of classic wall-mounted design (optinal stand column installation),  IP55 protection, glass protective 7" LCD touch screen,  multiple charging modes as well as LAN and optional LTE wireless communication. Technically, the fast EV DC charger supports a DC output power capacity of 60kW, optional AC output power capacity of 22kW and a wide output voltage range from 150Vdc to 1000Vdc. With regard to professional qualification, the EV charging station passes EMC Class B, TUV CE and UL certification.

Main Features:

  1. CCS1 or CCS2, CHAdeMO and GBT configure support, optional AC Type 2 cable support.
  2. IP55 design with high protection and high reliability under harsh environment.
  3. Wall mounted, optional stand column installation.
  4. EMC Class B, TUV CE and UL certification.
  5. Power transfer between two charging cables and power flow simutaneously through two charging cables.
  6. 60kW charging capacity, charging voltage from 150V to 1000V.
  7. Optional 44kW V2G configuration, support CHAdeMO and CCS standard.
  8. User Friendly interface with tempered glass protective 7'' TFT capacitive touch screen LCD.
  9. Multiple charging modes: Auto basis, Amount basis, Energy basis, SOC basis.
  10. Multiple power distribution modes: Stand alone, Current switch, Plug Switch, Full hold.
  11. Internal high precision AC energy meter and DC energy meter, optional VDE and PTB certification type.
  12. LAN and optional LTE wireless support, OTA support, RFID authorization and Mobile App payment support.

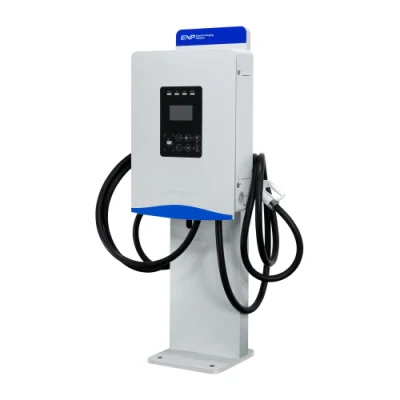

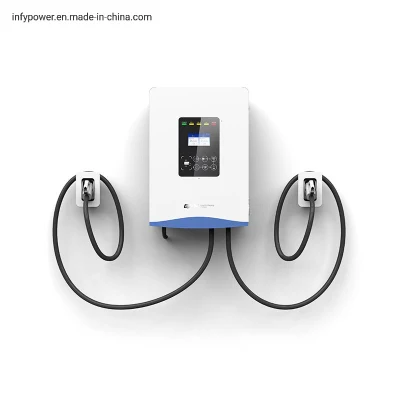

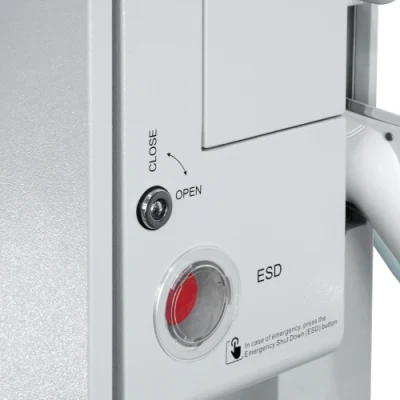

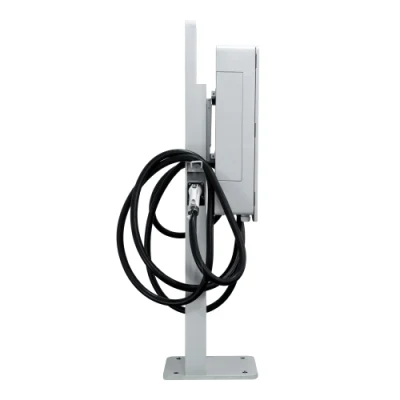

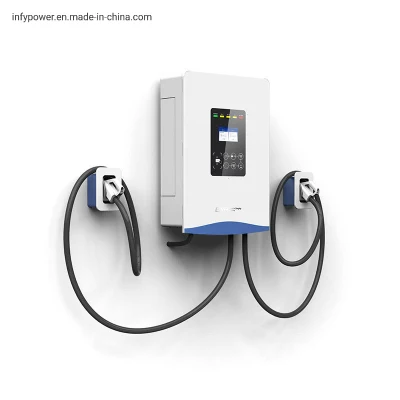

Detailed Photos

Outdoor Public EV Charger DC 60kw Wall Mount Ocpp 1.6j IP54
Outdoor Public EV Charger DC 60kw Wall Mount Ocpp 1.6j IP54

    Product Parameters
    Rated Power DC 60kW/AC 22kW
    AC Side 3-phase+N+PE, 260Vac-530Vac
    DC Voltage 150Vdc-1000Vdc
    Max DC Output Current 60A/1000V, 80A/750V, 120A/500V, 200A/300V
    Charging Standard CCS, GBT, CHAdeMO, AC Type2
    Certification EMC Class B, TUV CE/UL
    Dimension & Weight 705mm*1000mm*240mm(W*H*Dmm)/150kg



    Packaging & Shipping
    Outdoor Public EV Charger DC 60kw Wall Mount Ocpp 1.6j IP54
    Outdoor Public EV Charger DC 60kw Wall Mount Ocpp 1.6j IP54



    Company Profile
    Outdoor Public EV Charger DC 60kw Wall Mount Ocpp 1.6j IP54
    Shenzhen Infypower Co., Ltd. is a high-tech company professionally engaged in power modules and power system solutions. We have gained abundant experience in power electronics and intelligent control technology with specialty lying on electric vehicle charging solutions and energy storage solutions. Our products cover a wide range of power modules, energy storage converters, charger solutions and energy storage solutions, among which our power modules have enjoyed a good reputation home and abroad for high reliability, high full-load efficiency and wide output voltage range for constant power.
    With over 70% R&D members, Infypower attaches great importance to the steady and rapid development of Infypower technology so as to take a leading role as always. We've published more than 150 authorized patents and an additional 100 more patents under review.
    Taking years of unremitting efforts in new energy power industry, Infypower has maintained long-term strategic cooperation with a great deal of brand customers. InfyPower focuses on the Infy Solved strategy with an effort to help our customers grow and succeed. The ultimate goal of InfyPower is to build a greener planet for our next generations together with you.


    Feedbacks from Customers
    Outdoor Public EV Charger DC 60kw Wall Mount Ocpp 1.6j IP54
    Outdoor Public EV Charger DC 60kw Wall Mount Ocpp 1.6j IP54



    Certifications
    Outdoor Public EV Charger DC 60kw Wall Mount Ocpp 1.6j IP54
    Outdoor Public EV Charger DC 60kw Wall Mount Ocpp 1.6j IP54

    Exhibitions
    Outdoor Public EV Charger DC 60kw Wall Mount Ocpp 1.6j IP54
    Outdoor Public EV Charger DC 60kw Wall Mount Ocpp 1.6j IP54
    Outdoor Public EV Charger DC 60kw Wall Mount Ocpp 1.6j IP54
    Outdoor Public EV Charger DC 60kw Wall Mount Ocpp 1.6j IP54




    FAQ

    Q: How do you handle shipments?
    A: 1. For small orders, we send goods by FedEx, DHL, UPS, express service on door to door term.
    2. For large shipments, we send goods by sea or by air in containers.
    Ps. it's highly recommended to delegate your own forwarders to handle shipments and FOB Shenzhen is widely adopted by our customers.

    Q: What is your delivery time?
    A: Normally, we need about 30 days to prepare your goods. For orders in large quantities and customized orders, the time for shipment will be a little longer.

    Q: What is your term of payment?
    A: Our standard term is 100% TT advance with order. However, it is negotiable under the condition of long-term strategic cooperation.

    Q: What is your customized service?
    A: With abundant experience in various kinds of OEM and ODM projects, we provide flexible and professional customized service. The MOQ varies based on your customized requirements.

    Q: How long is the warranty?
    A: The warranty of our products is 24 months upon the receipt of your shipment under normal circumstances.

    Q: What is your guarantee of after-sale service?
    A: In response to every single after-sale request within the warranty, we will appoint a one-on-one technician for timely online aid.

    Q: What are the certifications for your products?

    A: Our products are well qualified to be exported to the majorities of overseas countries with international certifications, such as CE for the Europe, UL for the United States and KC for the South Korea.
