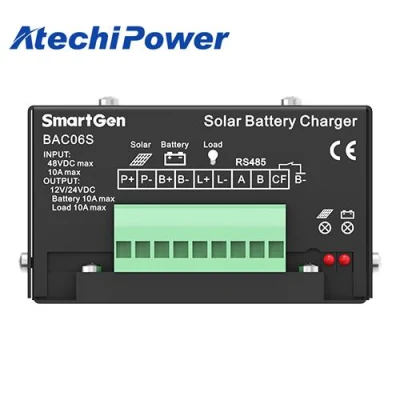

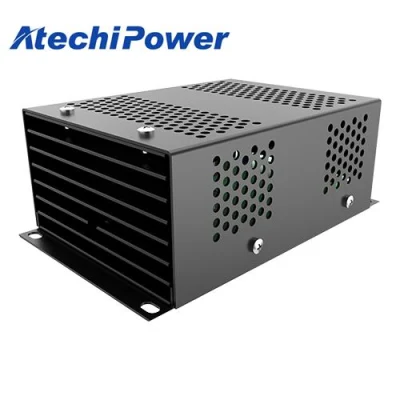

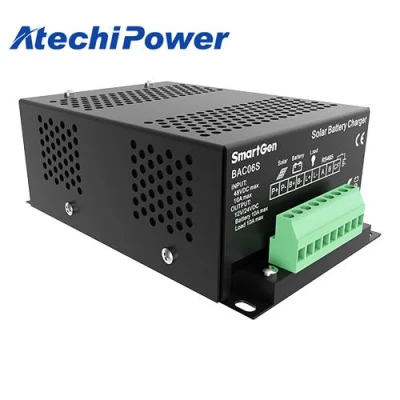

Original Smartgen Bac06s Smartgen Bac06s A12VDC Battery Auto Charger 12V Bac 06s

BAC06S solar charger adopts the latest switching power supply circuit and a new MPPT algorithm with disturbance increment method. It is specially designed for the charging characteristics of lead-acid batteries used for engine starting. It is suitable for long-term supplementary charging of lead-acid batteries using sunlight. Can be applied to 12V or 24V batteries.



  a) It is suitable for charging 12V/24V batteries, and users can also freely set the output voltage and current according to actual needs.
b) It adopts the step-down BACK switching power supply structure, which is small in size, light in weight and high in efficiency.
c) The innovative maximum power point MPPT tracking technology has high tracking efficiency and effectively improves the power generation of solar energy.
d) It has excellent heat dissipation characteristics, adopts natural air convection heat dissipation, high reliability, and no noise.
e) There are battery charging mode and constant voltage constant current mode (power mode) optional.
f) Two-stage or three-stage charging methods can be selected for automatic charging according to needs. Both methods are fully based on the charging characteristics of the battery.
Designed to prevent overcharging of lead-acid batteries and maximize battery life.
g) has an input terminal and an output terminal
Short circuit protection and reverse polarity protection.
h) The load output interface has overvoltage, undervoltage, overcurrent protection output, and the load output function when the solar voltage is too low (night).
i) It has an output port for charging failure or low battery voltage.
j) It has RS485 communication interface and adopts MODBUS protocol. Users can set parameters and remotely monitor the charging status through the communication interface.
