Basic Info.
Model NO.
5Kwh-40Kwh
Dimension(in./mm)
860*540*160mm
Installation
Packaged
Product Name
LiFePO4 Lithium Battery Pack
Material
LiFePO4
Inverter Matched
Solax, Deye, Goodwe, Growatt, Sofar, Gmde, etc.
Display
LCD Indicator
Anode Material
LFP
Mounting
Wall Mounted Powerwall
Color
Grey, Black , Red ,Green,White etc
Transport Package
Standard Battery Package
Specification
5.12Kwh-10.24Kwh
Trademark
Orders & OEM
Origin
China
HS Code
8507600090
Production Capacity
10000pieces/Monthly
Product Description
| Model No. | ODS2400 | ODS5000 | ODS7500 | ODS10000 |
| Voltage | 24V | 48 V | 48 V | 48 V |
| Capacity | 200Ah | 100Ah | 150Ah | 200Ah |
| Energy | 5.84Kwh | 5.12KWH | 7.68KWH | 10.24KWH |
| Operation voltage | 20-29.2 Vdc | 42-54 Vdc | 42-54 Vdc | 42-54 Vdc |
| Max.charging voltage | 29.2 Vdc | 54 Vdc | 54 Vdc | 54 Vdc |
| Max.charging and discharging current | 200Ah | 100A | 100A | 100A |
| Max Power | 5840W | 5120W | 7680W | 10240W |
| Life time(25°C) | 20 years | |||
| Life cycles(80% DOD, 25°C) | 6000 Cycles | |||
| Storage time / temperature | 5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C | |||
| Operation temperature | -20°C to 60°C @60+/-25% Relative Humidity | |||
| Storage temperature | 0°C to 45°C @60+/-25% Relative Humidity | |||
| Lithium Battery Standard | IEC62619, UN38.3, ROHS,CE-EMC | |||

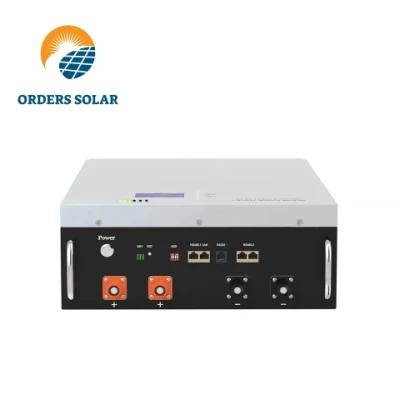

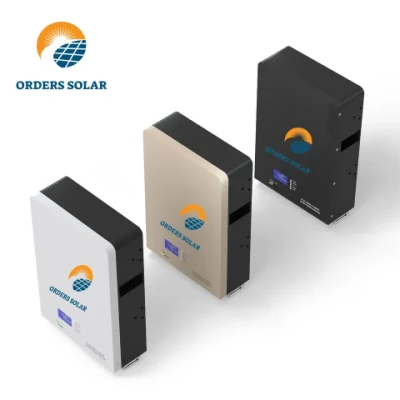

Attractive Design
Orders Lithium battery has compact design, LCD screen, convenient setting buttons, bluetooth Monitor on your smartphones, and cables&accessories ready for installation.
To welcome the world cooperation we accept OEM with your logo design!

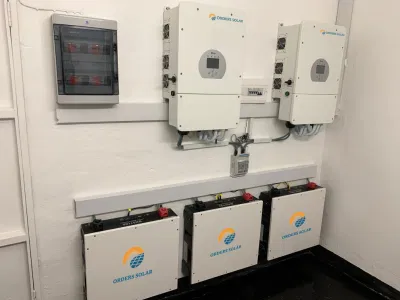

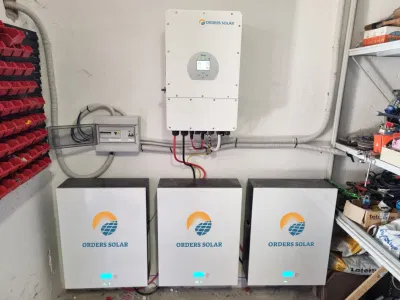

Wide Application
Orders Lithium Ion Powerwall series are widely used in Solar Systems for residential and commercial use. With more than 6000 times deep cycle, up to 90% DOD and phosphate battery Cell, Orders Powerwall has won global approval!
Orders Powerwall design belongs to Orders patent. Orders reserves sole and only right for sales of it's powerwall.
Orders Powerwall can be installed in parallel with combiner box for protection, with it's integrated BMS communication protocol to comprehensive hybrid and off grid inverters!
