off Grid Inverter Xtm 3500-24 Unit Combining Inverter / Charger 3500W 24V

Get the reliable Off Grid Inverter XTM 3500-24 unit, a powerful 3500W 24V inverter/charger. Manufactured by our factory for assured quality.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
XTM3500-24
Grid Type
off-Grid Inverter
Output Type
Single
Circuit Topologies
Push-Pull Type
Nature of Wave String
Sine Wave Inverter
Type
DC/AC Inverters
Surge Rating
3500W
Maximum Charging Current
90A
Output Voltage (at No Load)
Pure Sine Wave 230VAC (±2%) / 120VAC (1)
Output Frequency
45Hz-60Hz(1) +/-0.05% (Crystal Controlled)
Overload and Short-Circuit Protection
Automatic Disconnection with 3 Time Restart Attemp
Operating Temperature Range
-20 to 55 C
Warranty
5 Year
Weight
21kg
Load Detection
2 to 25 W
Transport Package
Standard Export Carton Packing
Specification
CE, RoHs, SGS, ISO9001
Trademark
Fangpusun
Origin
Zhejiang, China
HS Code
8504403090
Production Capacity
50000PCS Per Year

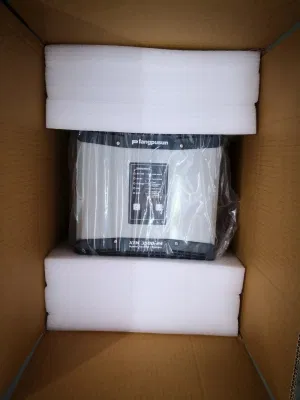

Packaging & Delivery

Package Size
55.00cm * 42.00cm * 27.00cm
Package Gross Weight
28.000kg
Lead Time
5 days (1 - 1 Pieces)
7 days (2 - 10 Pieces)
30 days (11 - 50 Pieces)
To be negotiated ( > 50 Pieces)

Product Description

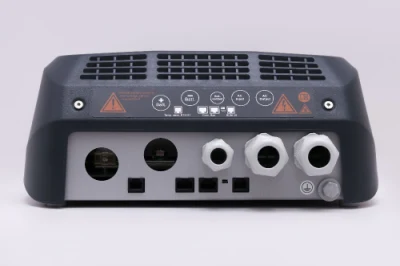

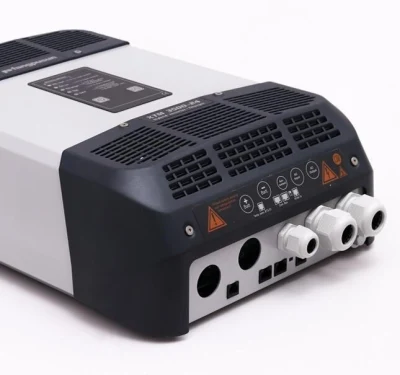

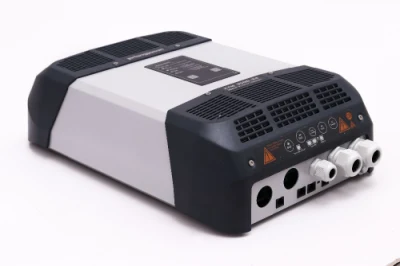

off Grid Inverter Xtm 3500-24 Unit Combining Inverter / Charger 3500W 24V



  • Excellent overload capabilities
  • Optimal battery protection
  • Automatic load detection
  • Parallel connectable
  • Best reliability


off Grid Inverter Xtm 3500-24 Unit Combining Inverter / Charger 3500W 24V
off Grid Inverter Xtm 3500-24 Unit Combining Inverter / Charger 3500W 24V
off Grid Inverter Xtm 3500-24 Unit Combining Inverter / Charger 3500W 24V
off Grid Inverter Xtm 3500-24 Unit Combining Inverter / Charger 3500W 24V


off Grid Inverter Xtm 3500-24 Unit Combining Inverter / Charger 3500W 24V
off Grid Inverter Xtm 3500-24 Unit Combining Inverter / Charger 3500W 24V





Model
XTM 1500-12 XTM   2000-12 XTM 2400-24 XTM 3500-24 XTM 2600-48 XTM  4000-48
Characterisation of the operating performance
Nominal battery voltage  12V 12V 24V 24V 48V 48V
Input voltage range  9.5-17VDC 9.5-17VDC 19-34VDC 19-34VDC 36-68VDC 36-68VDC
Continuous Power 1500VA 2000VA 2000VA 3000VA 2000VA 3500VA
Power 30 min. 1500VA 2000VA 2400VA 3500VA 2600VA 4000VA
Power 5 Sec. 3400VA 4800VA 6000VA 9000VA 6500VA 10500VA
Max.efficiency 93% 93% 94% 94% 96% 96%
Own consumption stand by

1.4W


1.4W


1.6W


1.6W


2.0W


2.1W
Own consumption stand by

8.0W


10W


9W


12W


10W


14W
Acoustic level without ventilation

40 dB
Acoustic level with ventilation 45 dB
Maximum load Up to short-circuit
Maximum asymmetric load  Up to Pcont.
Load detection (stand-by)

2 to 25 W
Cos φ 0.1-1
Output voltage Pure sine wave 230Vac (±2%) / 120Vac (1)
Output frequency 45Hz-60Hz(1) ± 0.05% (crystal controlled)
Harmonic distortion <2%
Overload and short-circuit protection

Automatic disconnection with 3 time restart attempt
Overheat protection Warning before shut-off - with automatic restart
Battery charger
Charge Characteristic 6 steps : Bulk-Absorption-Floating-Equalization-reduced floating-periodic absorption Number of steps,thresholds,end current and times completely adjustable with the RCC-02/03
Temperature compensation With BTS-01 or BSP 500/1200
Maximum charging current 70A 100A 55A 90A 30A 50A
Input voltage range  150 to 265Vac / 50 to 140Vac (1)
Input frequency 45 to 65Hz
Input current max . (transfer relay) / Output current max . 50Aac / 56Aac
Transfer time  < 15ms
Protection index IP 20
Operating temperature range -20 to 55ºC
Ventilation Forced from 55ºC
Warranty  2 Years


Q1.  What's Certificates you have?

   A: CE, ROHS, ISO9001, SGS certificates



Q2.  How many years warranty?

   A: All of products warranty 2 years. If have any quality problem, could return to us exchange new one or repair it free. Use our company DHL account, free freight.



Q3.  What's the payment term?

   A: 100% T/T (large order, accept 30% T/T prepay 70% balance before shipping), Western Union, Paypal.



Q4.  How's the delivery time?

   A: Usually 2 hours after receive full payment. OEM order need 10-15 days.



Q6.  Why choose Fangpusun pure sine wave inverter?

   A: . Fangpusun inverter, its wave better than electric supply, used for military, car, boat, solar home system. Does not affect radio transmission.

     . Through testing, Fangpusun inverter is full power. Many other supplier only 70% or 80% power.



Q7.  What's Government tender you get?

   A: FP-S-300W and FP-S-600 inverter get Indonesia tender, Solarix MPPT2010 controller get Bulgaria tender, PR2020 solar controller get Ecuador tender, PR3030 solar charge controller get Mexico tender and so on.



Q8.  Would you supply OEM/ ODM service?

   A: Yes! Our company supply OEM service.

     .  MOQ 200Pcs per model, blank box packing, standard export carton.

     .  MOQ 500Pcs per model, customer's design color box packing, standard export carton.



Q9.  Why your unit price is higher than other supplier?

   A: Alto and Audi are cars, also four wheels cars. Why Audi price higher than Alto? The same token, our Fangpusun power inverter unit price higher than other supplier, so products quality higher than other supplier. We believe in the right balance between quality and price. We offer competitively priced systems while maintaining our high standard of quality.



Q10.  Engineering expertise

  A: In Fangpusun we know that every project is different. Our solar experts with 10 year experience, will conduct a solar site analysis using the latest tools in the industry to ensure the maximum performance of your solar system. Give you the best suggestion, recommend suitable model for you.



Q11.  What about your sale service?

  A: Developing long-lasting relations with our customers  is of utmost importance to us. We are committed to providing you with excellent all-round services,  before, during and after the installation of your renewable energy syste.
