Basic Info.
Model NO.
YS50
Power Source
Half-Bridge Type
Connection
Desktop
Bluetooth Standard
2
Brand
Yingjiao/OEM/ODM
Experience
20 Years′experience
Quick Delievery
15-25 Days
Warranty
3 Years′ Warranty
Packaging
PE Bag, White Box, Carton
Keyword1
Switching Power Supply
Keyword2
Switching Power Adapter
Keyword4
PC Power Supply
Keyword5
Battery Charger
Keword6
Meanwell
Transport Package
PE Bag, White Box, Carton
Specification
CE, RoHS
Trademark
Yingjiao&OEM
Origin
Ningbo, China
HS Code
8504401400
Production Capacity
1, 000 PCS/Day
Product Description
We are a leading manufacture and export of switching and linear power adapters, transformers, power cords, charger, car chargers, etc.

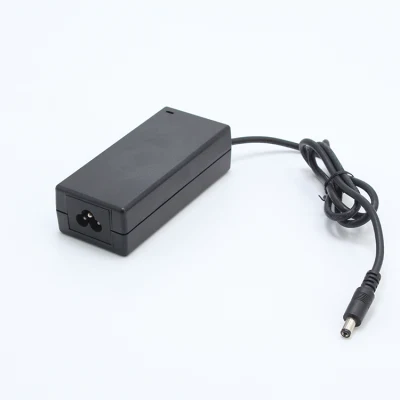

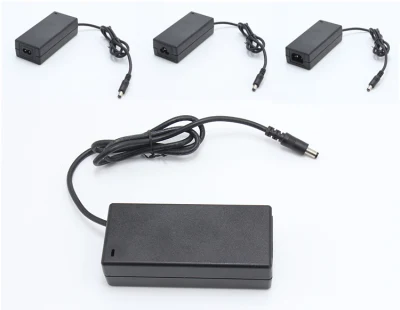

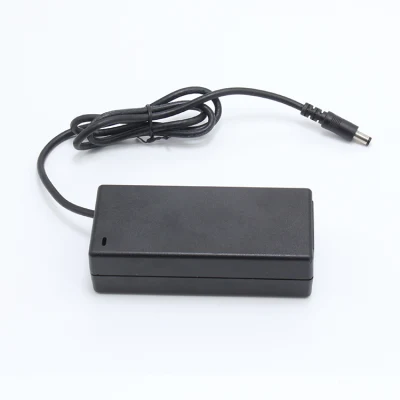

50w-70w Switching Charger (YS50)CE, EMC, , UL, GS, RoHS, EUP compliance.
Model: YS50 series charger
Universal Input: 100-240V AC 50/60Hz
Rated Power: 70W max.
Features:
Universal Input: 100-240V AC 50/60Hz
Safety: UL/CUL/TUV/GS/CE/CCC compliance
RoHS Compliance
High efficiency & low power consumption
LED power indicator
Short Circuit Protection
Over Current Protection
Over Voltage Protection
Light Weight & Compact
Environmental:
Operating Temperature: 0 to 40 degrees centigrade
Storage Temperature: -40 to +70 degrees centigrade
Operating Humidity: 10% ~ 90% RH Non-condensing
Storage Humidity: 5% ~ 95% RH Non-condensing
50w-70w Switching Charger (YS50)CE, EMC, , UL, GS, RoHS, EUP compliance.
Model: YS50 series charger
Universal Input: 100-240V AC 50/60Hz
Rated Power: 70W max.
Features:
Universal Input: 100-240V AC 50/60Hz
Safety: UL/CUL/TUV/GS/CE/CCC compliance
RoHS Compliance
High efficiency & low power consumption
LED power indicator
Short Circuit Protection
Over Current Protection
Over Voltage Protection
Light Weight & Compact
Environmental:
Operating Temperature: 0 to 40 degrees centigrade
Storage Temperature: -40 to +70 degrees centigrade
Operating Humidity: 10% ~ 90% RH Non-condensing
Storage Humidity: 5% ~ 95% RH Non-condensing
| Battery charger | NI-MH battery charger |
| Model: | YS12U |
| Rated Power: | 12W max. |
| Input: | 100-240VAC 50/60Hz |
| Output Voltage: | 6V /9V /12V /13.5V/ 15V /16.5V /18V |
| Output Current: | 0.1-2A Constant Current |
| Input current: | 0.5A max. |
| Inrush Current: | 65 Amps max. at 230VAC/50Hz,full load |
| Leakage Current: | 0.25mA Max. at 264VAC input |
| No Load Power Consumption : | <0.3W |
| Protections: | Short Circuit /Over Current /Over Voltage |
| Short Circuit Protection (SCP): | Protection to Zero Voltage |
| Over Voltage Protection (OVP): | ≤Vout*150% |
| Over Current Protection (OCP): | ≤Iout*150% |
| Working TEMP.: | '-20-50°C |
| Working Humidity: | 5%-90% RH non-condensing |
| Storage TEMP.,Humidity and altitude: | ,-40ºC ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL. |
| Input plug | EU,UK,US ,AU plug option |
| Certificates and approvals: | CE,EMC,RoHS,REACH |
| LVD | EN 60335-1 /EN60335-2-29 |
| EMI EMISSION: | EN55014-1/EN55014-2 EN61000-3-2 EN61000-3-3 |
| MTBF: | 100000 hours minimum at full load at 25 C ambient |
| Dimension: | 69*27*38mm |
| Weight: | 76g |
| Packing: | 100PCS/CTN, 45*28.5*31cm |
Details:
| Model: | YS12-0602000 | YS12-0901000 | YS12-1201000 | YS12-1350800 | YS12-1500800 |
| DC Voltage: | 6V | 9V | 12V | 13.5V | 15V |
| Rated Current: | 2000mA | 1000mA | 1000mA | 800mA | 800mA |
| Current Range: | 100-200mA | 100-100mA | 100-1000mA | 100-800mA | 100-800mA |
| Rated Power: | 12W | 9W | 12W | 11W | 12W |
| Voltage Range: | ±5% | ||||
| Line Regulation: | ±3% | ||||
| LED indicator | Red is charging ,Green is idle and full charged. There will be a continous float charging current 150mA after full charged . | ||||
| Setup,Rise,Hold up time: | 1000ms,50ms,16ms at full load | ||||
