Basic Info.
Model NO.
PER-400
Conditions of Use
Land Use
Usage
Common Units, Standby Unit, Emergency Crew
Landuse Type of Unit
Ordinary
Excitation Mode
AC Rotating Exciter
Keyword
Per Diesel Generators
Engine Model
Lr6m3l-Da
Alternator Model
Stg274f
Governor
Electrical
Bearing
Three
Warranty
1 Year
Color
Customers′ Requirement
Control Panel
Deepsea / Comap / Harsen / Smartgen 6110
Options
ATS / Silent Canopy / Fuel Pump
Engine Speed (Rpm)
1500rpm 1800rpm
Transport Package
Plywood Case or Film Package
Specification
500KVA
Origin
Fuzhou, China
HS Code
8502120000
Production Capacity
800units/Month
Product Description

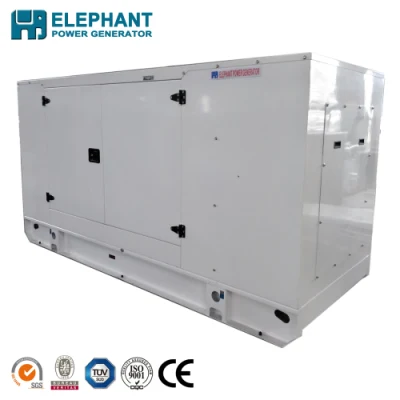

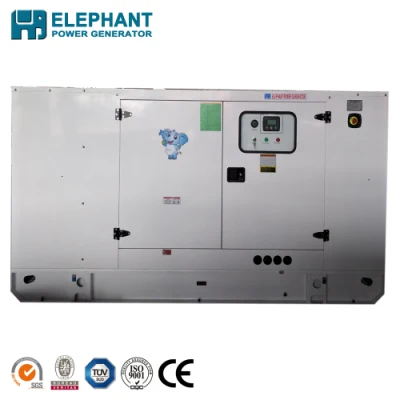

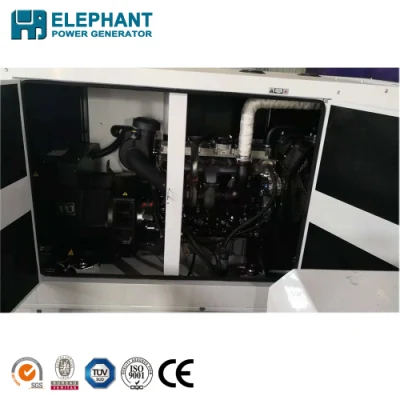

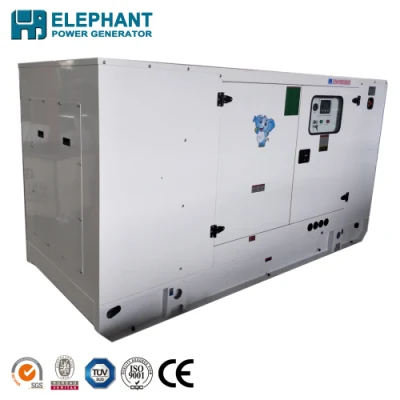

New powered by engine 500kva diesel generator set FOB Reference Price:Get Latest Price
| Product Overview | |
| 1) Brand-new engine,w/start motor. | |
| 2) Brushless alternator,single bearing,flange connection,IP23,H insulation class,with AVR. | |
| 3) Auto control panel with LCD display. | |
| 4) Engine mounted battery-charging alternator,Genset with battery charge of main supply. | |
| 5) Circuit Breaker,Exhaust Silencer. | |
| 6) Copper Radiator for 40ºC ambient temperature and double-deck cooling,with fan guard and front guard. | |
| 7) Anti-vibration pads fixed between engine/alternator and base frame to ensure the compete genset running stable. | |
| 8) Skid-mounted bottom 8 hours fuel tank. | |
| 9) Extemal recessed emergency stop button for extra safety. | |
| 10)Optional:Soundproof,ATS(automatic transfer switch),AMF panel,Trailer,Parallel system. | |
| 176KVA/160KVA YTO Diesel Generator | |
| Genset Specification | |
| Genset Model | BP-400 |
| Prime Power(Kw/Kva) | 400KW500KVA |
| Standby Power(kw/kva) | 400KW/500KVA |
| Frequency | 50Hz |
| Structure type | Open or Soudproof |
| Dba"@7m | silent genset 55-78 dba @ 7m , open type75-98 dba @7m |
| Engine Model | LR6M3L-DA |
| Alternator Model | STG274F |
| Open type DimensionL*W*H(mm) | 2800*910*1850 |
| Weight(Kg) | 2000 |
| Silent type DimensionL*W*H(mm) | 3300*1200*1780 |
| Weight(Kg) | 2800 |
| Engine Detail | BP |
| Manufacturer | Group Corporation |
| Model | LR6M3L-DA |
| Type | Direct injection,6 cylinder,in-line,water-cooling,four-stroke |
| Governor | electrical |
| Bore*Stroke | 110*125mm |
| Displacement | 7.13L |
| Compression ratio | 17:01 |
| Alternator Detail | |
| Model | STG274F |
| Output power(Kw/Kva) | 128KW/160KVA |
| Number of phase | 3 |
| Power factor(Cos Phi) | 0.8 |
| Number of Pole | 4 |
| Exciter type | Shunt |
| Insulation class | H |
| Voltage regulation | ≤1% |
| Total haarmonics (TGH/THC) | ≤3% |
| Wave form:Nema=TIF | ≤50 |
| Wave form:I.E.C=THF | ≤2% |
| Bearing | single |
| Coupling | Direct |
