Basic Info.
Model NO.
DF-CG-001
Specification
200*98*53
Trademark
DEFA
Origin
Norway
Production Capacity
20000set/Month
Product Description
DEFA Warmup Heater 12A 20A 35A EV Battery Charger Multicharger
Description

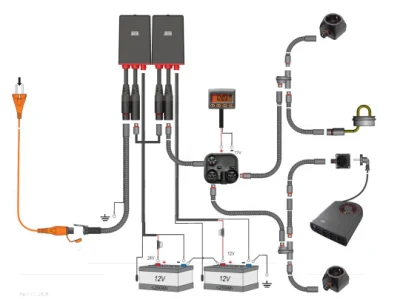

Setup
Contact heater vs Coolant heater
Certificate
Sales Areas
Example
Factory
Description
Setup
Contact heater vs Coolant heater
In order to evaluate which engine heater concept that is most efficient we have conducted the following tests:
Car #3 with Euro 6 diesel engine tested with contact heater, PTC heater with pump and coolant element heater
Conclusions:
Emission different heaters related to a coldstart
Application
Car #3 with Euro 6 diesel engine tested with contact heater, PTC heater with pump and coolant element heater
Conclusions:
** A contact heater is most efficient in order to preheat the engine block and oil
** A contact heater will increase the temperature in the engine oil approximately 30-350C more than a coolant element heater
** A contact heater will increase the temperature in the engine block approximately 20-250C more than a coolant heater
** A coolant heater will increase the temperature at the cylinder head approximately 300C more than a contact heater
** By using a coolant heater the cabin temperature will for the 16 first minutes of the drive be 3-50C above the same as for a contact heater (based on the same assumptions).
** Both the contact heater, the PTC coolant heater and the conventional coolant element heater are all almost reducing regulated emissions and fuel consumptions at the same level (less than 2% variation)
** A contact heater (300W) will normally use 42% less energy to preheat the engine, compared to a coolant heater (550W)
** Cold start: a cold-started car reach 20 degrees Celsius (measured at the interior mirror) after approximately 18 minutes driving. With WarmUp installed you start the drive with 220C in the cabin.
** A contact heater will increase the temperature in the engine oil, and ensure the evaporation of diesel in the system to work in cold conditions.
Emission different heaters related to a coldstart
Application
Certificate
Sales Areas
Example
Factory
