Basic Info.
Model NO.
CFDC-005
Charge Method
Quick Charge
Product Name
DC EV Charger Station
Application
Fast Electric Car Charging
Output Power
30kw/40kw/60kw/120kw/160kw/180kw/240kw/350kw
IP Grade
IP 54
Cable Length
5 Meters, Support Custom
Interface Standard
CCS +Chademo+Gbt
Advantage
LED Display, RFID, 4G/LAN/WiFi/Ocpp
MOQ
1PCS
Custom Service
Support Customized Colors, Logos, and Packaging
After-Sales Service
Remotly After Sales Service
Type
Fast EV Charging Station
Certification
CCC, CE, ISO, TUV, RoHS
Warranty
24 Months
Transport Package
Wooden Stake + Cardboard-Shell
Specification
Indoor & Outdoors use
Trademark
Champion
Origin
China
HS Code
8504401500
Production Capacity
5000PCS Monthly
Product Description

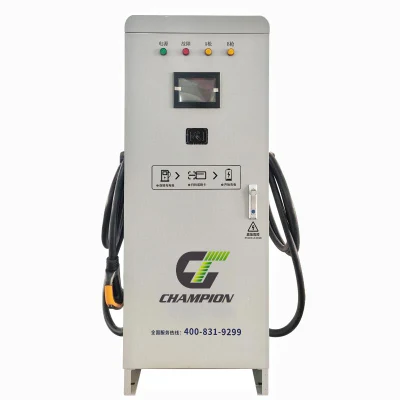

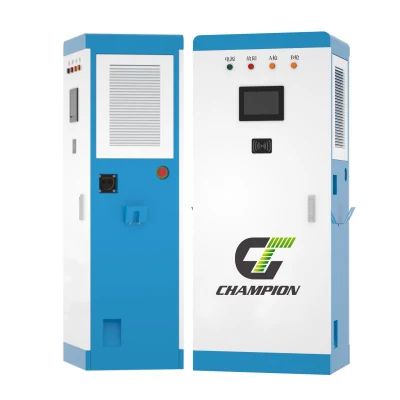

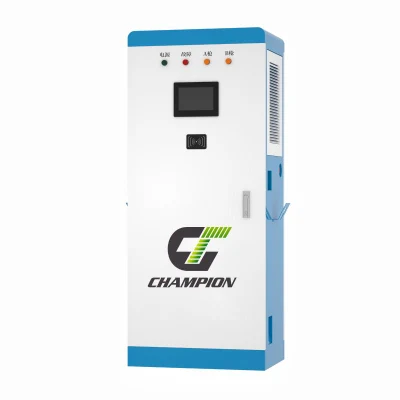

New Commercial Fast 30kw auto DC EV Charger Stations with Double Guns for Electric Car
We support ev charging station with different power according to customer requirements
PRODUCT PARAMETERS | ||
Model No. | CF DC charging station series | |
DC output voltage | DC150~500V / DC200~750V | |
Output Max. Current | Max 240A | |
Input voltage | AC380V±15% | |
Input frequency | 50±5HZ | |
Rated output power | 30KW,60KW,120KW,180KW,240KW | |
Cable Length | 5 Meters(support choose different) | |

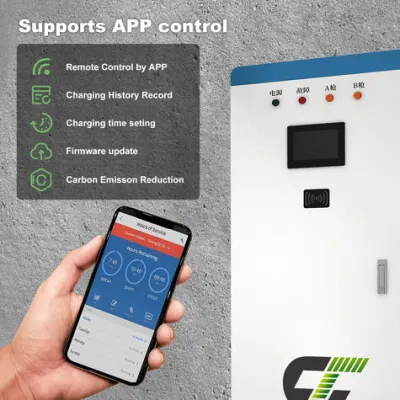

Payment Method | RFID Card,APP,OCPP | |
Ingress Protection(IP/IK rating) | IP54 | |
Operating Temperature | -20ºC to +50ºC | |
Storage Temperature | -40°C to +75°C | |
Maximum Installation Height | ≤2000m | |
Product Size | According to actual products | |
Enclosure | Galvanized steel | |

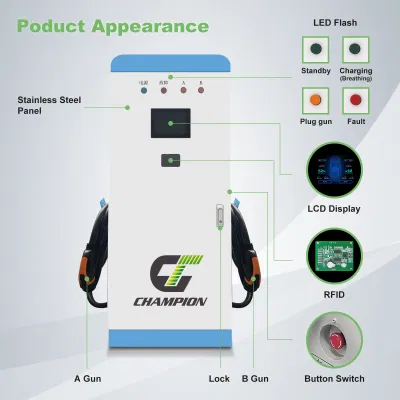

Status indication | The green light is the power supply, the yellow light is the charging indicator, and the red light is the fault indicator | |
Protection | Over Current,Under Voltage,Over Voltage,Short Circuit,Residual Current, Surge Protection,Over Temperature,Ground Protection | |
Custpm service | We support custom logo,package,design,cable length. |
DC EV Charging, we also support 30KW,60KW,120KW,180KW,240KW. One port charging gun and double charging gun.
Can provide charging equipment that meets the following standards
Our EV car chargers have been sold to over 40 countries , such as Germany, India, USA,
Canada, Netherlands, Switzerland, India, Slovakia, Bolivia, Argentina, Netherlands, Switzerland etc.
The Charging piles are widely used in Residential, Wokeplace Business, Gas Station,
High-speed Service Station, Parking Lot,Household.
1:Why choose us?
A:We are professional EV charger manufacturer. We own mastered core R&D capabilities such as intelligent control, Internet of Things, rough data, artificial intelligence, and has been recognized by national high-tech enterprises and has more than 100 patented technologies.
2: How can we guarantee quality?
A: Always a pre-production sample before mass production; All major components are tested before assembly and each charger is fully tested before shipped.
3: How long to fully charge a car?
A: To know how long to charge a car, you need to know the OBC(on board charger) power of the car, the car battery capacity, the charger power. The hours to fully charge a car =battery kw.h/obc or charger power the lower one. For e.g, the battery is 40kw.h,obc is 7kw, charger is 22kw, the 40/7=5.7hours. If the obc is 22kw, then 40/22=1.8hours.
4:Can I order some samples? How long will ship to my address?
A:Yes, sample available, and usually 7-10 days to production and 7-10 days to express.
5.Can I custom our logo, package and cable length?
A: Yes dear, we support custom printing your Logo, package,plug and cable. We support GB/T, US, EU, JPN Standard.
6.Can I have a discount price and better service?
A: Of course , for first cooperation and our VIP customers, we all have different plan of discount. And please don't worry, we always provide best service of every customer friend. Please to contact us ! Welcome contact Now!
