Basic Info.
Model NO.
YW-70W
Application
Outdoors
Condition
New
Certification
ISO, CB, CE, FCC
Material
Monocrystalline Silicon
Peak Power
70W
Operating Voltage
13.6V
Operating Current
5.37A
Open Circuit Voltage
16.26V
Short Circuit Current
5.69A
Cells Efficiency
23.80%

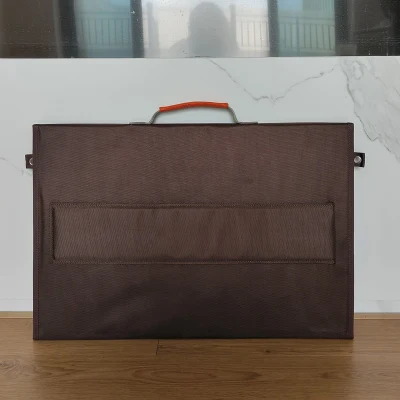

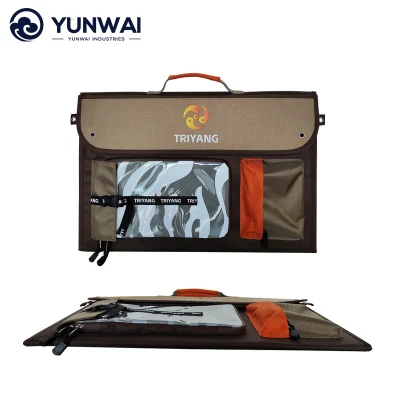

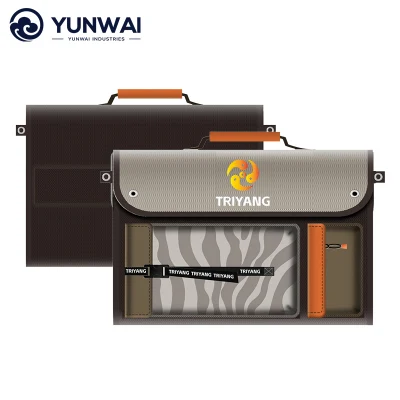

Folded Size
370*550*25mm

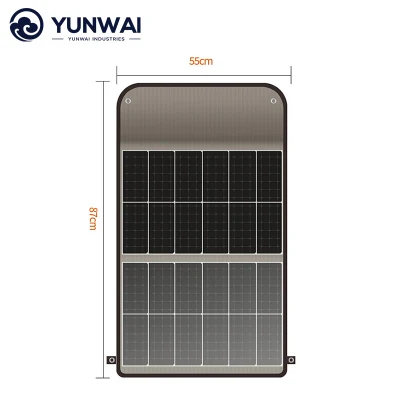

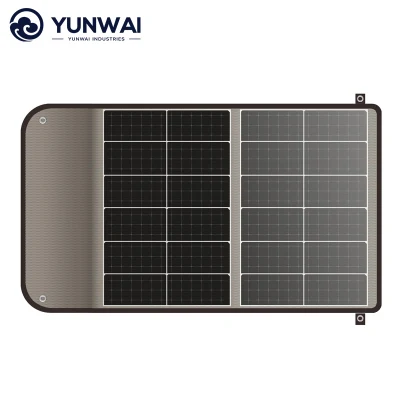

Unfolded Size
870*550*3mm
Net Weight
2.1kg
Type
All Black, Mwt, Flexible
Product Name
Portable Solar Panel
Keyword
Waterproof Portable Folding Solar Panel
Color
Customized Color
Solar Cell
Monocrystalline Silicon Cells
Place of Origin
China
Transport Package
Carton
Trademark
YUNWAI
Origin
Guangdong, China
HS Code
8541430000
Production Capacity
10000 Piece/Pieces Per Month
Packaging & Delivery
Package Size
87.00cm * 55.00cm * 0.30cm
Package Gross Weight
2.100kg
Product Description
Connection Guide
| 1,Open and unfold the portable solar panel kit. 2,Connect to the USB or DC interface of the solar panel kit through the charging cable, and connect the phone, camera, laptop, power station or other devices. 3,To generate more solar energy, use the portable solar panel kit in direct with sunlight, position it perpendicular to the sunlight without any obstructions to the sunlight. 4,The portable solar panel kit has a bracket, open the bracket and try to form an angle of 90° with the sunlight. The angle of the stand can be adjusted, and depending on the situation, it can receive more solar energy after being tilted. 5,The portable solar panel kit is equipped with hanging rings that can be hung on the RV, tree trunk and other supporters to fit in different application scenarios.Accessories: The portable solar panel kit is equipped with a 7909 male output interface to adapt to the charging input port of the portable power station.Connection Guide |
To make sure you have a good user experience, we suggest you to follow the notes below: 1)Do not disassemble, shred or pierce the portable solar panel kit. 2)Do not place the portable solar panel kit near the flame, and do not throw the product into the fire. 3)Do not step on the portable solar panel kit to avoid mechanical shock. 4)Do not bend the portable solar panel kit . 5)Please keep the portable solar panel kit clean and dry, if it is sprayed with water, please wipe it as soon as possible 6)Please keep the user manual of portable solar panel kit for future use. 7)Please use, dispose and discard the portable solar panel kit according to the local environmental protection regulations. |
YUNWAI is a high-tech enterprise specializing in the research and development and production of kinetic energy lithium battery products, household photovoltaic inverters, solar photovoltaic panels, household energy storage batteries, and complete photovoltaic power generation system products.
Our company has an excellent R & D team and strong production capacity, advanced equipment, strict ISO standard manufacturing processes, and through effective management, has become an industry leader in the research and development of lithium battery products. Currently, it has obtained a number of invention patents and has obtained CE, TUV, RoHS, UN38.MSDS and other reporting certificates, which meet the certification standards for global exports. We will produce different products based on customer requirements through OEM and ODM orders. Our product quality can meet the requirements of wholesalers, importers, and retailers around the world, and we sincerely welcome overseas companies to cooperate with us.
Our corporate mission is to work together to use green and renewable energy products to address the global goal of green and low-carbon development and the energy shortage crisis, and bring a better intelligentlifetothe world.
Our company has an excellent R & D team and strong production capacity, advanced equipment, strict ISO standard manufacturing processes, and through effective management, has become an industry leader in the research and development of lithium battery products. Currently, it has obtained a number of invention patents and has obtained CE, TUV, RoHS, UN38.MSDS and other reporting certificates, which meet the certification standards for global exports. We will produce different products based on customer requirements through OEM and ODM orders. Our product quality can meet the requirements of wholesalers, importers, and retailers around the world, and we sincerely welcome overseas companies to cooperate with us.
Our corporate mission is to work together to use green and renewable energy products to address the global goal of green and low-carbon development and the energy shortage crisis, and bring a better intelligentlifetothe world.
1 The portable solar panel kit shall be packed in box for transport. Prevent violent vibration shock or extrusion during transportation. Keep it sheltered from the sun and rain. The goods can betransported by cars, trains, ships, planes and other transportation vehicles. 2 The portable solar panel kit shall be stored in a clean, dry and ventilated indoor space with an ambient temperature of-5 ºC~35 ºC and a relative humidity of no more than 75%. Avoid contact with corrosive substances and keep away from fire and heat sources. 3 Additional notes: 1) Please read this user manual carefully before using the portable solar panel kit 2) Please stop using the portable solar panel kit when it's not functioning or damaged 3) Please choose a high-quality battery interface to avoid abnormal short circuit 4) Please do not disassemble or repair the portable solar panel kit by yourself 5) Please keep the panel of portable solar panel kit away from any exposed wires |
1.12month warranty period is available upon the purchase date (Product damages or failures due to
improper use or other natural disasters are excluded from this warranty scope).
2.Original purchase proof of the product is requested when claiming the warranty within the above
mentioned warranty period and conditions.
1. What products does the portable solar panel kit support? Support different kinds of cell phones, 5V/12V electronic equipment, outdoor power station, lead-acid battery.colloid lead-acid battery, ternary lithium battery, lithium iron phosphate battery (charge controller is sold separately).2. How to clean the portable solar panel kit Use a soft brush and damp cloth to clean the dust on the surface of the panel.Bird droppings or other sticky objects should be cleaned up immediately with wet wipes. If you need to clean the solar panel, please wash the surface with running water. Do not use high pressure water gun, otherwise it will damage panels. 3. Is the portable solar panel kit waterproof? portable charger is IP65 rating, and splash proof (do not place in the rain or immerse in water), so for safety use, please keep the product dry. 4.What is the reason for the low charging power of the solar panel kit? The power generated by solar panels is affected by many factors. The main factors include climate conditions,sunlight angles and shading. Climate conditions: ordinary rainy weather, cloudy weather, or the sun is blocked by clouds, the power will drop. Blocking: if there is a shadow in front of the solar panel or it is placed behind of a glass window, the power will drop. Angle: when the solar panel is not facing the sun vertically, or facing away from the sun, the power will drop. Warning: please avoid external force to squeeze the solar panel, otherwise it may damage the solar silicon cells,resulting in power drop. 5. Can the portable solar panel kit be used in extreme weather? It is not recommended to use the portable solar panel kit in extreme weather conditions,please try to use it in stable weather conditions. Avoid using in harsh weather conditions such as thunderstorms, gale,hail,etc.Normal use temperature is-20C to 70 ºC. 6.Can the portable solar panel kit store electricity? The solar panel kit on current market only convert solar energy into electrical energy, and transmit the electricity in the form of direct current to portable energy storage power station. Solar panel kit by themselves cannot store electrical energy. If power storage function is needed, a portable power station is recommended |
.
