Basic Info.
Model NO.
QW640-150-FM
Size
312*140*90mm
Certification
RoHS, CE
Socket Type
Au/EU/UK/Us Plug
Recyclable
Recyclable
Input Voltage
100-240VAC 50/60Hz
Color
Black/Armygreen
Transport Package
Corrugated Paper Packing Box
Specification
Weight: 3650g(only body)
Trademark
QUAWIN/OEM
Origin
Shenzhen
HS Code
850431900
Production Capacity
50000 Pieces

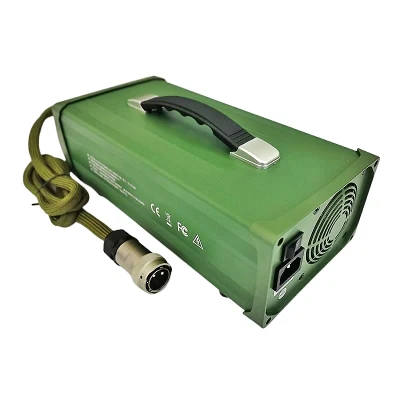

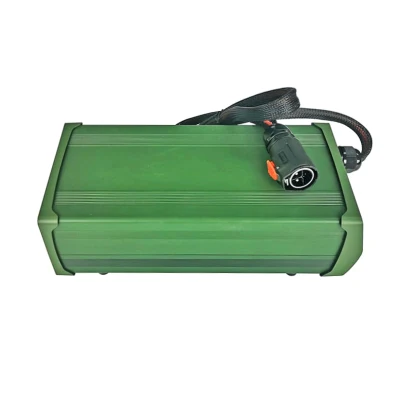

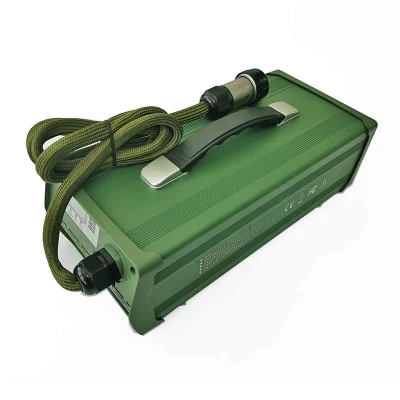

Product Description
Quick Detail:
Brand Name:QUAWIN
Model Number:QW640-150-FM
Use:20S 60V/64V Lifepo4 battery pack
Type:Electric
Place of Origin:Guangdong China (Mainland)
Battery charger:automatic battery charger 73V
Color:Black/Armygreen
Shell Material:Aluminium alloy
Additional functionality:LED display
Input voltage:100-240VAC 50/60Hz with PFC
Output voltage:73V
Output current:15a(Max)
Output power:1095W
Electromagnetic compatibility: meets the requirements of GJB
Reliability: MTBF>=3000H
Charge mode:CC-CV(Constant Current-Constant Voltage)
Optional features:The battery pack with super capacitor can be charged from 0V,
Output Connector:Crocodile clip,aviation connector,XLR,Ring terminal,Anderson connector,customization
Packaging & Delivery :
Specifications:
20S 60V/64V Lifepo4 battery pack
Features:
• Charging mode:CC-CV(Constant Current-Constant Voltage)
• High efficiency and low power consumption
• Stabilized output and low noice
• Efficiency(at 100% load): >=90%
• Operating temperature:-40ºC ~ 70ºC
• Storage temperature:-40ºC ~ 85ºC
• Operating humidity:5%~90%RH
Specification:
• Input: 100-240VAC 50/60Hz with PFC
• Output: DC 73V
• Charging current: 15a(Max)
• Dimensions (mm): 312*140*90
• Weight: 3200g(only body)
Safety protections:
• Over Voltage protection
• Short Circuit protection
• Polarity error protection
• Over power protection

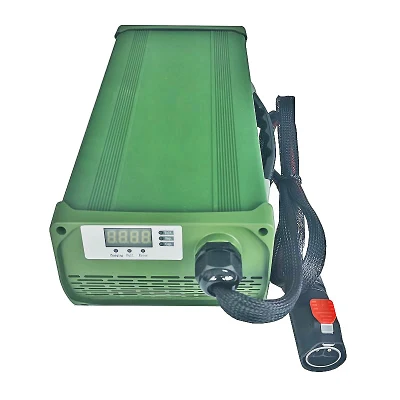

LED Indicator:
Waiting Mode:LED(GREEN) ON
Charging Mode:LED(BLUE) FLASH
Full Charged Mode:LED(GREEN) ON
Charge Error Mode:LED(RED) FLASH
Brand Name:QUAWIN
Model Number:QW640-150-FM
Use:20S 60V/64V Lifepo4 battery pack
Type:Electric
Place of Origin:Guangdong China (Mainland)
Battery charger:automatic battery charger 73V
Color:Black/Armygreen
Shell Material:Aluminium alloy
Additional functionality:LED display
Input voltage:100-240VAC 50/60Hz with PFC
Output voltage:73V
Output current:15a(Max)
Output power:1095W
Electromagnetic compatibility: meets the requirements of GJB
Reliability: MTBF>=3000H
Charge mode:CC-CV(Constant Current-Constant Voltage)
Optional features:The battery pack with super capacitor can be charged from 0V,
Output Connector:Crocodile clip,aviation connector,XLR,Ring terminal,Anderson connector,customization
Packaging & Delivery :
4pcs/Carton
Carton size: 475*422*375mm
Delivery Detail:sample within 7 work days,15~25 days for bulk order
Carton size: 475*422*375mm
Delivery Detail:sample within 7 work days,15~25 days for bulk order
Specifications:
20S 60V/64V Lifepo4 battery pack
Features:
• Charging mode:CC-CV(Constant Current-Constant Voltage)
• High efficiency and low power consumption
• Stabilized output and low noice
• Efficiency(at 100% load): >=90%
• Operating temperature:-40ºC ~ 70ºC
• Storage temperature:-40ºC ~ 85ºC
• Operating humidity:5%~90%RH
Specification:
• Input: 100-240VAC 50/60Hz with PFC
• Output: DC 73V
• Charging current: 15a(Max)
• Dimensions (mm): 312*140*90
• Weight: 3200g(only body)
Safety protections:
• Over Voltage protection
• Short Circuit protection
• Polarity error protection
• Over power protection
LED Indicator:
Waiting Mode:LED(GREEN) ON
Charging Mode:LED(BLUE) FLASH
Full Charged Mode:LED(GREEN) ON
Charge Error Mode:LED(RED) FLASH
Call us to know more details datasheet.
| (A Typical Model) | |||||
| Model | Input Voltage(V) | Battery Voltage(V) | Charging Voltage(V) | Charging Current(A) | |
| QW128-600-FM | (LiFePO4) | AC 100~264V | 12.8(4S) | 14.6 | 60 |
| QW256-400-FM | 25.6(8S) | 29.2 | 40 | ||
| QW384-250-FM | 38.4(12S) | 43.8 | 25 | ||
| QW512-200-FM | 51.2(16S) | 58.4 | 20 | ||
| QW640-150-FM | 64(20S) | 73 | 15 | ||
| QW768-130-FM | 76.8(24S) | 87.6 | 13 | ||
| QW148-600-LM | (Lithium) | 14.8(4S) | 16.8 | 60 | |
| QW259-400-LM | 25.9(7S) | 29.4 | 40 | ||
| QW370-250-LM | 37(10S) | 42 | 25 | ||
| QW481-200-LM | 48.1(13S) | 54.6 | 20 | ||
| QW629-150-LM | 62.9(17S) | 71.4 | 15 | ||
| QW740-130-LM | 74(20S) | 84 | 13 | ||
| QW120-600-SM | (Lead Acid) | 12(1S) | 14.7 | 60 | |
| QW240-400-SM | 24(2S) | 29.4 | 40 | ||
| QW360-250-SM | 36(3S) | 44.1 | 25 | ||
| QW480-200-SM | 48(4S) | 58.8 | 20 | ||
| QW600-150-SM | 60(5S) | 73.5 | 15 | ||
| QW720-130-SM | 72(6S) | 88.2 | 13 | ||
