Product Description

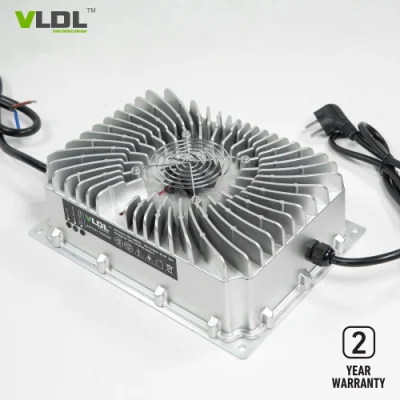

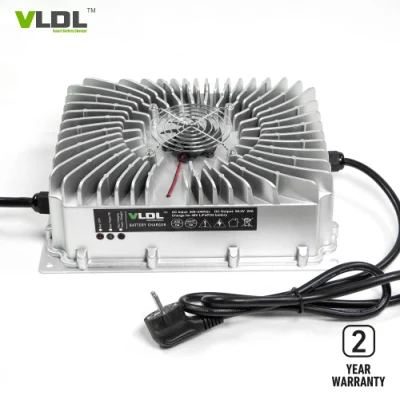

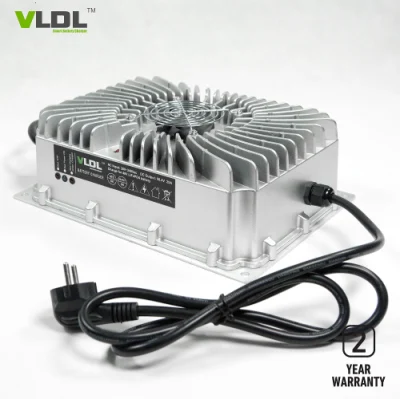

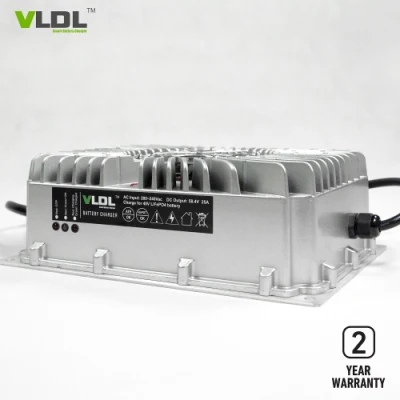

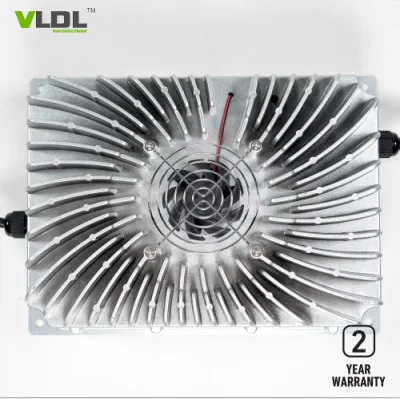

Marine Battery Charger 12V 60A, Universal input 90 to 264Vac, IP65 Rate
Brief Descriptions:
12V 60A output waterproof and on-board smart battery charger.
IP65 or IP66 waterproof rate.
PFC worldwide 110 to 230Vac input voltage.
14.4 / 14.6V customized max charging voltage for Li-ion, LiFePO4 or Lead Acid batteries.
MCU controlled and intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off.
92% High efficiency.
2 years warranty, high quality and stable performance.
Factory competitive price.
Advantages:
Smart and Advanced Charging Controls:
You can decide your battery charger's charging steps, pre-charging with small current, constant current charging,constant voltage charging, floating charging or automatically cut-off when it's fully charged.
CAN communication option:
We can add CAN bus for communication. Controlled by software for starting and charging. Read all information by CAN bus port and communicate with your battery's BMS.
Dual input voltages:
Just plug the AC plug to the wall socket, our charger will detect voltage 110V or 230V automatically. No need to choose by hand! No worry for wrong input voltage to break charger.
Automatic detecting and charging:
After setting right charging voltage and steps, our charger will run automatically, just leave it alone. Automatic detecting battery's voltage and charging status, stop and re-charging by itself. No worry for over-charging, no need to operate it again and again.
High quality, free replacing in 2 years:
We only provide high quality product, so we guarantee 2 years free replacing warranty policy.
Spcifications:
Item No.: VL1260LWP
Dimension: 310*230*101mm.
Gross weight: 8.5kg.
Input voltage: wide 90~264Vac.
Output rated: 12Vdc 60Amps.
Max charging: customized 14.4V / 14.6V
Applied to battery Types: 12V Lithium-ion, LiFePO4, LiMnO2 battery.
Smart Charging: Auto. Pre-charge, CC, CV, Floating or Cut-off
Factory Pictures:
