Product Description

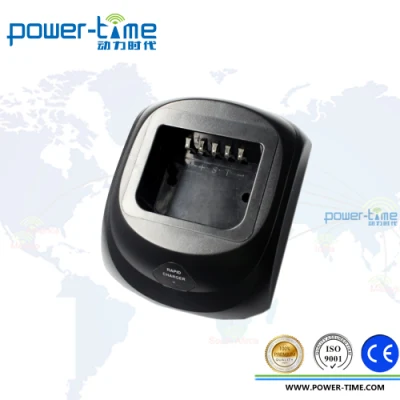

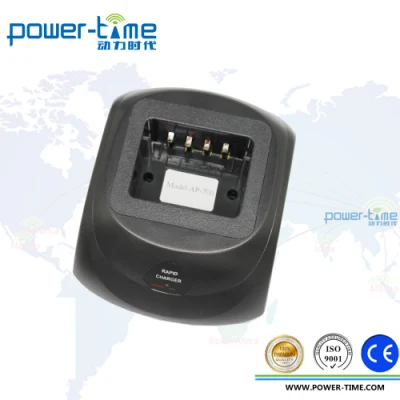

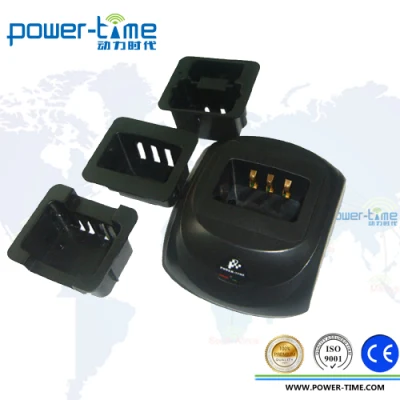

800mAh intelligent Single Way Unit 2-Way Radio Battery Charger for hytera HYT tc-700 tc-780 series radio
Charger Features & Advantages:
1. Can charge different batteries : Li-ion Battery
2. 800mA rapid charging current,Intelligent charger.Trickle charging Mode(start) ---- quick charging Mode---Trickle Charging
Mode(near full).
3. Our charger have many kinds of protections:temperature protection/identify the bad battery/inspection of low voltage/inspection
of high voltage/inspection of full power/set the maximum time/0 V power remind,ect.
4. Made by High-Quality component and Hard Pcb Board.
5. 100% aging testing before assembly
6. Design life for charger 5 year,Warranty 1.5 years
7. UK ,US,Euro plug and 110-240V are available
Charger Specification:
Charging Current: 800mA
Feature: This is a rapid charger .
a) -V, +v Temp, Maximum Voltage, Maximum Temperature and Maximum Charge Time cut off.
b) High PWM Charging Output to simplify the charging circuit with limited components.
Operation
A. Plug the desk-top charger into the DC line outlet.
B.Insert the battery pack into the charger. The display as follows:
a) When charging a battery pack alone (not attached to the transceiver), do not allow any metal object to short the terminals on
the top of the pack.
Attention
b) The charger suitable for Lithium Battery Pack.
Charging Mode
1. Idle Mode.
2. Front Trickle Charging Mode.
3. Quick Charging Mode.
4. Trickle Charging Mode.
