Basic Info.
Model NO.
6-GFM(G)-150Ah
Installation
Fixed
Rechargeable
Chargeable
Rated Voltage
12V
Tyoe
Gel
Maximum Charging Current
37.5A
Cells Per Unit
6
Max. Discharge Current
2250A(5s)
Application
Solar Storage System, UPS
Transport Package
Wodden Pallet and Carton Box
Specification
486x171x241mm
Trademark
Sail Solar
Origin
Anhui, China
Production Capacity
1000 Piece/Pieces Per Week
Product Description
Key Features:
*Gelled electrolyte made by mixing sulfuric acid with silica fume.*High rate discharge performance due to tight assembly
technology
*Strong heat dissipation and wide operating temperature range
*Avoid acid mist being separated out , environment friendliness
*Efficient venting system release excessive gas automatically
Applications:
*EPS and UPS battery backup
*Solar and wind energy storage system
*Telecommunication Equipment
*Power plant and transmission system
*Signal system , emergency lighting system , security system
*Gelled electrolyte made by mixing sulfuric acid with silica fume.*High rate discharge performance due to tight assembly
technology
*Strong heat dissipation and wide operating temperature range
*Avoid acid mist being separated out , environment friendliness
*Efficient venting system release excessive gas automatically
Applications:
*EPS and UPS battery backup
*Solar and wind energy storage system
*Telecommunication Equipment
*Power plant and transmission system
*Signal system , emergency lighting system , security system
| Rated Voltage | 12V |
| Numbers of cells | 6 Cells |
| Capacity | 150Ah@10hr-rate to 1.80V per cell @25°C |
| Weight | 47kg |
| Internal Resistance | Approx. 4mΩ |
| Terminal | F1/F2 |
| Max. Discharge Current | 2250A(5s) |
| Short Circuit Current | 7500A |
| Max. Charging Current | 37.5A |
| Reference Capacity | C10 150AH/C3 108.7AH/C1 82.4AH |
| Design Life | 10~15 years |
| Float Charging Voltage | 13.6 V~13.8 V @ 25°C, Temperature Compensation: -20mV/°C/Cell |
| Cycle Use Voltage | 14.4 V~14.9 V @ 25°C, Temperature Compensation: -30mV/°C/Cell |
| Operating Temperature Range | Discharge: -15°C~50°C, Charge: 0°C~40°C, Storage: -15°C~40°C |
| Normal Operating Temperature Range | 25°C±5°C |
| Self Discharge | Less than 3% at 25°C per month |
| Container Material | A.B.S. UL94-HB, UL94-V0 Optional. |

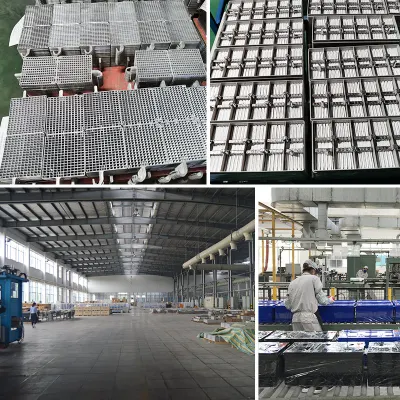

Foctory
Sail Solar has developed an industry-leading intelligent manufacturing system, and constantly leads innovation in equipment and technology with the independent R&D of a top-notch technical team. With world-class production automation, intelligence, and production efficiency, Sail Solar has built an efficient intelligent factory employing new technologies such as AI, image recognition, machine learning, predictive algorithms and 5G.

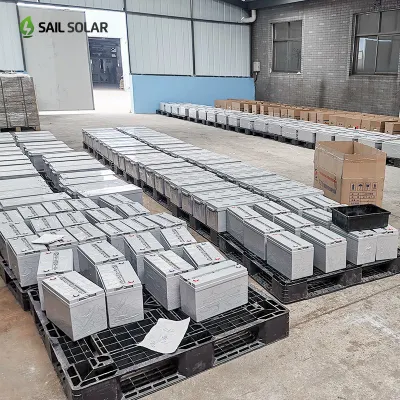

Note:
The Above packing information contained in this web is subject to change without notice. We will offer wooden box packing with extra material and labor costs if your order less than a pallet, we accept any customized packing as per your requests.
