Landworld 22kw High Power Car EV Bus Electric Passenger Vehicle Onboard Charger

Get the Landworld 22kw High Power Car EV Bus Electric Passenger Vehicle Onboard Charger from our factory. We offer high-quality and reliable charging solutions for electric vehicles. Shop now!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
LWC22K-380S380-W
Origin
China

Product Description

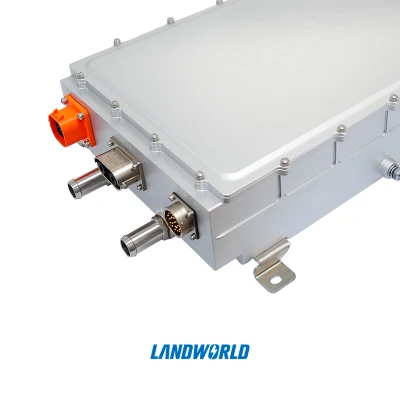

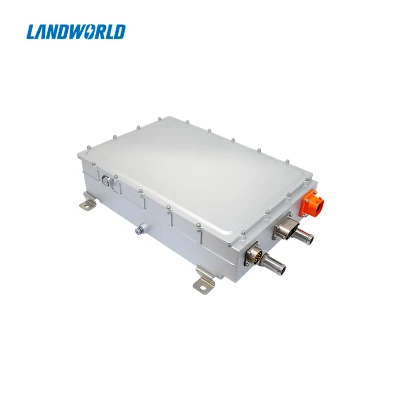

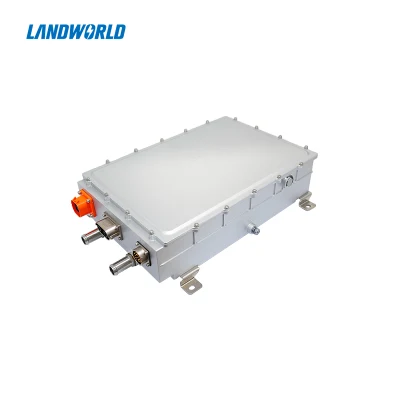

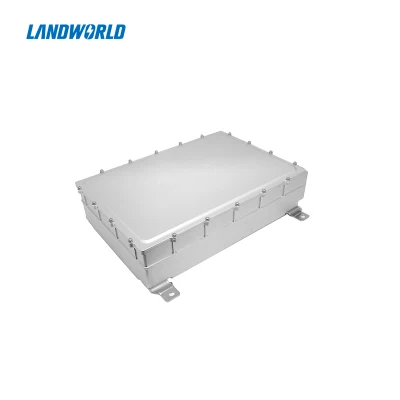

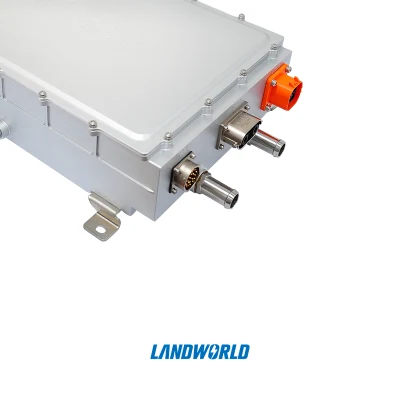

Landworld 22kw High Power Car EV Bus Electric Passenger Vehicle Onboard Charger
Product Features:

Body Size: 370x252x158mm
Weight: <25KG
Cooling method: Liquid cooled, flow rate≥10L/min
IPrating : IP67
Support on-line upgrading and fault diagnosisCompatible with single and three phase charging station
Full digital software design, Redundant protection function design


Main Technical Parameters
Items Technical Specification Remarks
Output Power 22kW  Support single phase 6.6kW
Input voltage Three phase: 304-456Vac
(L-L, three phase four lines)
Single phase input; 175-265VAC
Output voltage 200-450Vdc
Max output current 64A Single phase input:20A
Auxiliary power supply 9-32Vdc VCC
Eff. ≥94% @nominal voltage
Voltage accuracy ±1%
Current accuracy ±3%
Low voltage wake-up 12/24Vdc&200mAmax (WAKE_UP signal) Wake up BMS/VCU
Wake-up mode AC/CC/CP Support book charging
Communication CAN-BUS
Static current ≤2mA Sleep mode/ consume battery current at stop status
Working temp. -40-85ºC
EMC GBT 18387: 2008, EN 55022
Protection Input OVP, UVP, output OVP, UVP, OTP, OCP, output short circuit protection, communication fault protection

Landworld 22kw High Power Car EV Bus Electric Passenger Vehicle Onboard Charger Landworld 22kw High Power Car EV Bus Electric Passenger Vehicle Onboard Charger Landworld 22kw High Power Car EV Bus Electric Passenger Vehicle Onboard Charger Landworld 22kw High Power Car EV Bus Electric Passenger Vehicle Onboard Charger Landworld 22kw High Power Car EV Bus Electric Passenger Vehicle Onboard Charger Landworld 22kw High Power Car EV Bus Electric Passenger Vehicle Onboard Charger Landworld 22kw High Power Car EV Bus Electric Passenger Vehicle Onboard Charger Landworld 22kw High Power Car EV Bus Electric Passenger Vehicle Onboard Charger Landworld 22kw High Power Car EV Bus Electric Passenger Vehicle Onboard Charger Landworld 22kw High Power Car EV Bus Electric Passenger Vehicle Onboard Charger
