Basic Info.
Model NO.
RS-LFP48V200AH
Discharge Rate
High Discharge Rate
Shape
Square Battery
Electrolyte
Li-ion
Installation
Fixed
Rechargeable
Chargeable
Warranty
10 Years
Battery Size
680*495*185mm
Certification
CE/Rosh/MSDS/Un38.3/IEC/ISO9001/ISO14001
Weight
108kg
Brand Name
Rosen or OEM
Product Name
LiFePO4 Lithium Battery Pack
Nominal Capacity
5/7.5/10kwh
Material
LiFePO4
Display
LCD Indicator
Cycle Life
More Than 6000 Times
Color
Grey, Black, Red, Green, White etc
Battery Cell
3.2V 50ah Prismatic Cell
Inverter Matched
Solax, Deye, Goodwe, Growatt, Sofar, Gmde
Transport Package
Wooden Box / Carton Packing
Specification
48V 200AH Lithium Battery
Trademark
Rosen Solar/OEM/ODM
Origin
China
HS Code
8507600090
Production Capacity
10000 Set/Sets Per Week
Packaging & Delivery
Package Size
1000.00cm * 200.00cm * 200.00cm
Package Gross Weight
120.000kg
Product Description
Product Overview
Technical Specification

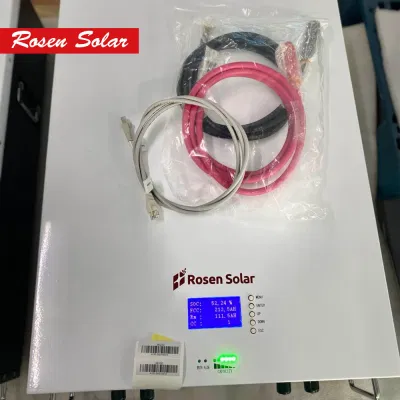

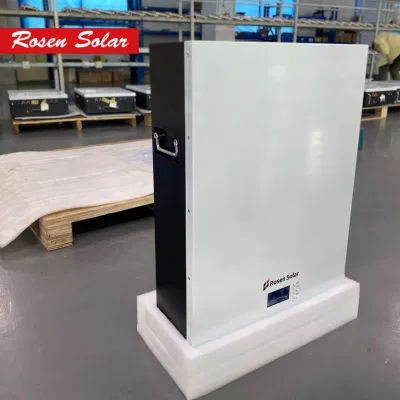

Attractive Design
Rosen Lithium battery has compact design,
LCD screen,convenient setting buttons,
bluetooth Monitor on your smartphones,
and cables&accessories ready for installation.
To welcome the world cooperation we accept
OEM with your logo design!
Rosen Lithium battery has compact design,
LCD screen,convenient setting buttons,
bluetooth Monitor on your smartphones,
and cables&accessories ready for installation.
To welcome the world cooperation we accept
OEM with your logo design!
Wide Application
Rosen Lithium Ion Powerwall series are widely
used in Solar Systems for residential and
commercial use. With more than 6000 times
deep cycle, up to 90% DOD and phosphate
battery Cell, Rosen Powerwall has won global
approval!
Rosen Lithium Ion Powerwall series are widely
used in Solar Systems for residential and
commercial use. With more than 6000 times
deep cycle, up to 90% DOD and phosphate
battery Cell, Rosen Powerwall has won global
approval!
Integrated Function

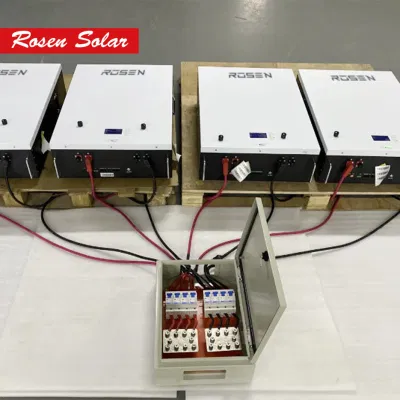

Rosen Powerwall can be installed in parallel
with combiner box for protection, with it's
integrated BMS communication protocol
to comprehensive hybrid and off grid inverters!
Rosen Powerwall can be installed in parallel
with combiner box for protection, with it's
integrated BMS communication protocol
to comprehensive hybrid and off grid inverters!
| Type | Module | Powerwall | ||
| Model | LFP48V50AH | LFP48V100AH | LFP48V150AH | LFP48V200AH |
| Battery Capacity [Ah] | 50Ah | 100Ah | 150Ah | 200Ah |
| Nominal Battery Energy [kwh] | 2.4 | 4.8 | 7.2 | 9.6 |
| Max Discharge Current [A] | 50 | 100 | 150 | 200 |
| Net Weight | 35 | 68 | 95 | 108 |
| Dimension [H*W*D, mm] | 442*480*88 | 680*495*185 | 680*495*185 | 680*495*185 |
| Operating Temperature Range | -20 ~ 50 [ºC ] | |||
| Life Cycles | >6000 | |||
| Nominal Voltage [V] | 48Vdc | |||
| Communication | CAN/RS485/DRY CONTACT | |||
| Certificate & Safety Standard | TUV / CE / EN62619 / IEC62040 / UN38.3 | |||
| Warranty | 10 Years | |||
| Alarms | Battery Operation/Out of Battery/System fault | |||
| Pros | Applied in off-grid and hybrid system, Compact Design, Modular Expansion | |||
| Monitoring & Protection | With BMS protection in each Module, and breaker embedded in the system | |||

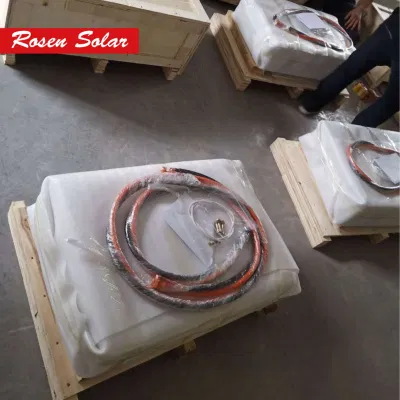

Package & Delivery

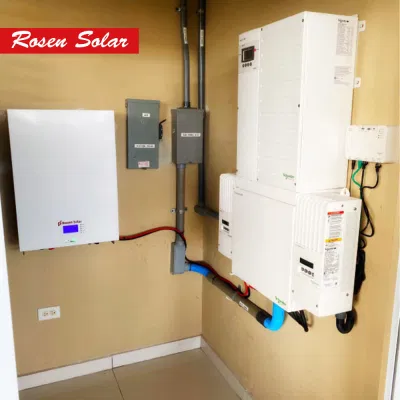

Battery Projects
Rosen Lithium battery projects are installed for home and commercial solar projects. Home projects are more used with power wall types
48Vdc or 51.2Vdc 50Ah, 100Ah, 150Ah, 200Ah, 300Ah, 400Ah etc whose communication protocols are compatible with hybrid solar storage
inverters 3kw, 5kw, 8kw, 10kw, 12kw etc. DOD more than 6000cycles for long life usage. Commercial projects BESS are more for factories
like 100kw, 150kw, 200kw, 250kw, 300kw, 500kw, 1MW, 2MW, 5MW, 10MW etc, with containerized design and EMS programmable.
Rosenpv lithium battery warranty is up to 10years, and MSDS/UN38.3 certificates are listed for safety installation.
