Basic Info.
Model NO.
AG-EVSE-16(J1772)
Power Plug
Schuko Cee NEMA 6-20 NEMA 5-15
Colour
White Blue Orange Green
Delivery Time
Against Order Quantity
Output Current
16A
Charing Plug
Type 1 or Type 2 Optional
After-Sales Service
24/7
Type
Fast EV Charging Station
Certification
CE, TUV, RoHS
Warranty
24 Months
Transport Package
Carton
Specification
50*40*10(cm)
Trademark
OEM
Origin
China
HS Code
8504409999
Production Capacity
10000PCS/Year
Product Description
Product Description

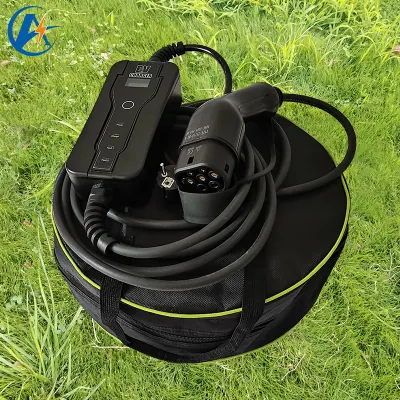

16A Type 1 | Type 2 Portable EV Home Charger For Electric Vehicle Charging Cable SCHUKO Plug
SAE J1772 2009 (Type 1) North American standard
IEC 62196-2 (Mennekes, Type 2) EU European standard
IEC 61851-1:2017 Electric Vehicle Conductive Charging System (2017)
IEC 62752:2016 IC-CPD EVSE Charging Standard
Product specification
Mode2 (level 2) EV Charging Cable
Model:AG-EVSE-16
Connector: Type1 |Type2 to Schuko | Cee | NEMA 6-20 | NEMA 5-15
Certificate: TUV, CE
Input/Output: 230V AC
Frequency: 50Hz
Current: 16A
Power: 3.6kw
Length: 5m (16.4ft)
Color: black
Operating temperature: -25ºC to +55ºC
IP Class: IP66
Cable: Straight
SAE J1772 2009 (Type 1) North American standard
IEC 62196-2 (Mennekes, Type 2) EU European standard
IEC 61851-1:2017 Electric Vehicle Conductive Charging System (2017)
IEC 62752:2016 IC-CPD EVSE Charging Standard
Product specification
Mode2 (level 2) EV Charging Cable
Model:AG-EVSE-16
Connector: Type1 |Type2 to Schuko | Cee | NEMA 6-20 | NEMA 5-15
Certificate: TUV, CE
Input/Output: 230V AC
Frequency: 50Hz
Current: 16A
Power: 3.6kw
Length: 5m (16.4ft)
Color: black
Operating temperature: -25ºC to +55ºC
IP Class: IP66
Cable: Straight
| Usb Number: | 0 |
| Certification: | CE, RoHS |
| Usage: | Car Charging |
| Interface: | J1772 |
| Color: | Black/White/Blue/Orange |
| Input Voltage: | AC 16A |
| Model NO. | AG-EVSE-16 |
| Power Plug | Schuko | CEE | NEMA 6-20 | NEMA 5-15 | UK | AU |
| Output Voltage | 100V/240V AC |
| Output Current | 16A |
| Charing Plug | Type1/Type 2 |
| IP Grade | 66 |
| Weight | 3 Kg |
| Trademark | OEM |
| Transport Package | Carton Box |
| Specification | 50*40*10(cm) |
| Origin | China |
| HS Code | 8504409999 |
