Product Description
Tonhe120kw/240kw DC Fast EV Charger Station Battery Charger Smart Charging Accessories Ocpp1.6 Residential EV Chargers
| Operating Voltage(AC) | 265~490V AC,rated voltage380V AC |
| Input Frequency(HZ) | 45~55hz |
| Constant power | 200-1000VDC |
| Communication | Ethernet/3G/4G/OCPP communication |
| Power Factor | Full load≥0.99 |
| THD | Full load≤5% |
| Efficiency | Average efficiency ≥96% at nominal output power |
| Characters | One charger with two outputs, simultaneously charging |
| Protection Grade | IP54 |
| Certificate | CE certificate NB 1282 |
| Customize Service | OEM/ODM , LOGO customize |
120kw/240kw DC Fast EV Charger Station Battery Charger Smart Charging Accessories Ocpp1.6 Residential EV Chargers
Tonhe is a high technology enterprise specialized in innovation of technology, product and management in the power electronics industry, and R & D, manufacturing ,sales, operation and service of EV charger module&rapid charger point and related products , providing customers with system solution for the energy sector. Tonhe was established in 1998 and got listed in 2015 with stock code 300491.
Tonhe is the first power electronics enterprise in China to realize full-process power conversion soft switch, and has accumulated more than 140 patents. Continuous research and development investment has enabled Tonhe to achieve a high market share in the field of electric operating power supply, charging station, on-board power supply and special power supply.
R&D Team
We have been focusing on the field of power supplies since the 1998s, investing 10% of our sales revenue into the R&D team every year.
120kw/240kw DC Fast EV Charger Station Battery Charger smart charging accessories All Types Ocpp1.6 Supported Residential EV chargers
120kw/240kw DC Fast EV Charger Station Battery Charger smart charging accessories All Types Ocpp1.6 Supported Residential EV chargers
(Cartons&wooden packaging and the shipping, you could choose based on the specific quantity)
Main Features:

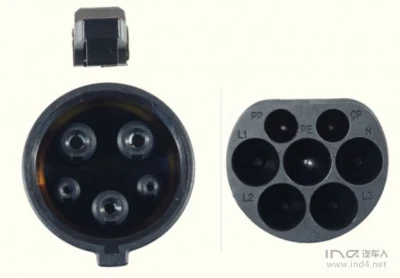

CCS1 or CCS2, CHAdeMO and GBT configure support.
IP54design with high protection and high reliability under harsh environment.
Smart charging and power management support.
Optional CoolRing technology enables power to transfer between two EV chargers so as to realize a maximum power of 360kW at one side.
Power transfer between two charging connectors.
180kW charging capacity, maxium current 300A and charging voltage from 150Vdc to 1000Vdc.
User Friendly interface with tempered glass protective 7'' TFT capacitive touch screen LCD.
Multiple charging modes: Auto basis, Amount basis, Energy basis, SOC basis.
Multiple power distribution modes: Stand alone, Current switch, Plug Switch, Full hold.
Internal high precision AC energy meter and DC energy meter, optional VDE and PTB certification type.
LAN and optional LTE wireless support, OTA support, RFID authorization and Mobile App payment support.
Our customers
Q: How do you handle shipments?
A: 1. For small orders, we send goods by FedEx, DHL, UPS, express service on door to door term.
2. For large shipments, we send goods by sea or by air in containers.
Ps. it's highly recommended to delegate your own forwarders to handle shipments and FOB Shijiazhuang is widely adopted by our customers.
Q: What is your delivery time?
A: Normally, we need about 30 days to prepare your goods. For orders in large quantities and customized orders, the time for shipment will be a little longer.
Q: What is your term of payment?
A: Our standard term is 100% TT advance with order. However, it is negotiable under the condition of long-term strategic cooperation.
Q: What is your customized service?
A: With abundant experience in various kinds of OEM and ODM projects, we provide flexible and professional customized service. The MOQ varies based on your customized requirements.
Q: How long is the warranty?
A: The warranty of our products is 12months upon the receipt of your shipment under normal circumstances.
Q: What is your guarantee of after-sale service?
A: In response to every single after-sale request within the warranty, we will appoint a one-on-one technician for timely online aid.
Q: What are the certifications for your products?
A: Our products are well qualified to be exported to the majorities of overseas countries with international certifications, such as CE for the Europe, UL for the United States and KC for the South Korea.
