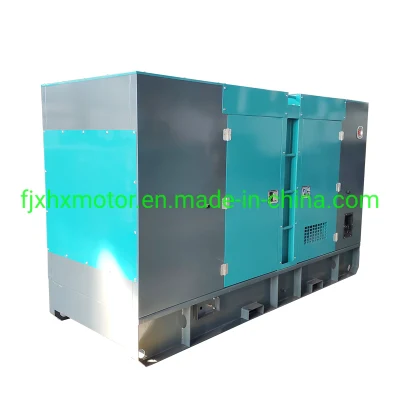

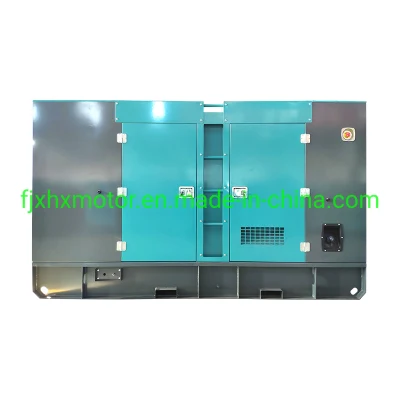

120kw Doosan Engine Soundproof Diesel Generator Auto Start with ATS Cabinet

Discover our 120kw Doosan Engine Soundproof Diesel Generator Auto Start with ATS Cabinet. We are a trusted factory with top-quality products.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
XHX-D120S
Conditions of Use
Land Use
Landuse Type of Unit
Ordinary
Excitation Mode
AC Rotating Exciter
Brand
OEM Welcomed or Our Own Brand
Engine Brand
Cummins/Deutz/Doosan/Ricardo/Volvo/Lovol
Alternator
Stamford/Leroy Somer/Mecc/Marathon/Copy Stamford
Product Time
25-30days
Frquency
50Hz/60Hz
Voltage
220/380 127/220 240/415
Certifiacte
ISO9001/CE/Soncap/Saso
Fuel Tank
8-10 Hours Base Fuel Tank/External Fuel Tank
Delivery Port
Fuzhou as Usual or Any Port in China
Warranty
One Year or 1000 Hours
Transport Package
Plastic Warp or Wooden Case
Specification
1750*850*1050/600kgs
Trademark
Hensing or any for your option
Origin
China
HS Code
8502110000
Production Capacity
6000

Product Description

120kw Doosan engine Soundproof diesel generator Auto start with ATS cabinet

120kw Doosan Engine Soundproof Diesel Generator Auto Start with ATS Cabinet
120kw Doosan Engine Soundproof Diesel Generator Auto Start with ATS Cabinet



Engine feature

Engine brand: Korea Doosan diesel engine
Engine power output: From 120kw-600kw

→Diesel, heavy-duty, four stroke, water cooled and direct injection fuel system
→24V D.C starter and charger alternator
→Industrial capacity exhaust silencer supplied loose with flexible section

     and mating connections
→ Set mounted tropical duty radiator
→Engine driven cooling fan with protection guard
 →Steel wire braided fuel lines, vent and rain fittings
→Set mounted acid battery installed with leads and terminals


 Alternator feature
Brushless self excited, single bearing, 4 poles
Class H insulation
IP23 protection standard
Self-exciting and self-regulating

Automatic voltage regulator (AVR)

120kw Doosan Engine Soundproof Diesel Generator Auto Start with ATS Cabinet



Our Advantages
1. High pressure pipes for diesel input-outlet
2. Stronger heavy duty rubber anti-vibration mountings
3. All base fuel tank Baking paint
4. All canopy powder coating (Powder type - 3 years durable, longer service life and less color fading)
5. Maintenance free battery and high quality battery charger
6. High standard wiring and brands (Chint/Delixi) relays, indicators, fuse breaker, meters etc.
7. Non-return Valve equipped
8. Turbo charger protection, moving parts protected and other CE standards (depends on required)
9. ONE Hour Testing for all genset (0%-25%-50%-75%-100%-110% loading)
10. Make sure the Fastest Delivery Time
11. Reliable Quality and Aftersale Services as committed
12. Excellent Quality Control and Pre-shipment Inspection
(All base frame, fuel tank, canopy, ATS cabinets etc are produced in Hensing factory zone to avoid any  out-off-controlled quality problems.


Control system
manual / auto start and protection module
Equipped with Comp AMF 20/Smartgen 6110
New integrated controllers in manual and remote start application, featuring full gen-set monitoring and protection. It is equipped with a powerful graphic display, Icons, symbols and bar graphs for intuitive operation together with high functionality set new standards in gen-set control. Special low temperature version is also available, allowing the display to work up to -30°C.



Accessories
1) Standard accessories
Standard 40 radiator mounted on skid, Common steel frame, circuit breaker, Non-return valve,Shock Pad,exhaust silencer, battery and connecting wires, Standard tools kit, operation manual and document.
2) Optional accessories
Engine coolant and oil heater,  cooling for heat exchanger, communication interface, battery charger by main supply, ATS and paralleling system, soundproof canopy


Warranty policy
Guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, Hensing will provide the free easy-damageable spare parts of diesel engine caused by our quality of production or raw material. After expiration, Hensing  provides cost spare parts maintenance of gensets

120kw Doosan Engine Soundproof Diesel Generator Auto Start with ATS Cabinet

PRODUCTION LINE
120kw Doosan Engine Soundproof Diesel Generator Auto Start with ATS Cabinet

120kw Doosan Engine Soundproof Diesel Generator Auto Start with ATS Cabinet
120kw Doosan Engine Soundproof Diesel Generator Auto Start with ATS Cabinet



120kw Doosan Engine Soundproof Diesel Generator Auto Start with ATS Cabinet
